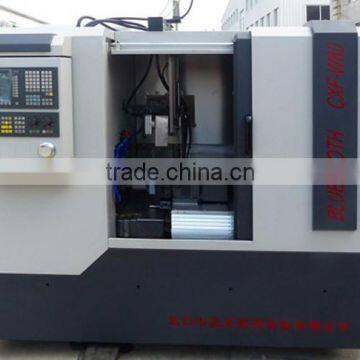

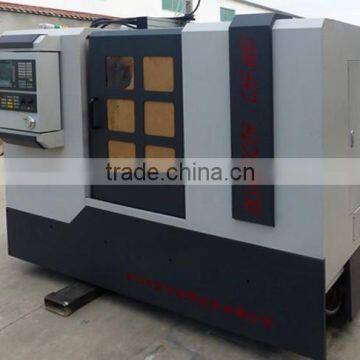

CXF-W80 High quality CNC Lathe for polygon turning machine

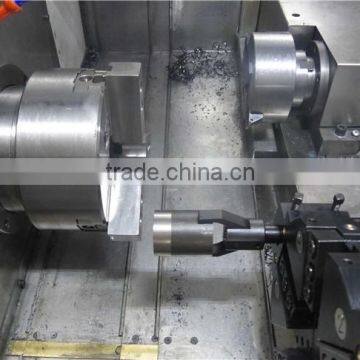

The CXF-W80 CNC Hexagon Milling Lathe is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.
advantage:
A) CNC Turning&milling composite machine can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.One worker can operate 4-6 sets even more, save much cost for factory.
B) CNC Turning&milling composite machine can turning&milling Flat,Square,Hexagons,Polygons etc.
C) CNC Turning&milling composite machine is suitable for diameter-variable processing of polyhedron. Compared with the traditional ways, the machining accuracy of CXF horizontal series have been more increased, this series of machinery is widely used in machinery manufacturing, machinery manufacturing, hardware tools, auto parts, aerospace and draining etc.
Index |
Unit |
CXF-W40 |
CXF-W50 |
CXF-W60 |
CXF-W80 |
piece Dia |
mm |
40 |
50 |
60 |
80 |
piece length |
mm |
100 |
150 |
200 |
300 |
Max.subtense of turning and milling |
mm |
32 |
43 |
53 |
73 |
Feed rate X/Z axis |
mm |
100/150 |
150/200 |
200/300 |
200/300 |
Rapid traverse X/Z axis |
m/min |
10 |
10 |
10 |
10 |
Max.cutter&max.milling head speed |
r/min |
2000 |
2000 |
2000 |
2000 |
Motor power of servo apindle |
kw |
3.7KW 380V/50HZ |
5.5KW 380/50HZ |
7.5KW 380V/50HZ |
11KW 380V/50HZ |
Positioning accuracy |
mm |
X/Z:0.0015 |
X/Z:0.0015 |
X/Z:0.0015 |
X/Z:0.0015 |
Repeated positioning accuracy |
mm |
X/Z:0.01 |
X/Z:0.01 |
X/Z:0.01 |
X/Z:0.01 |
NC system |
Siemens |
Siemens |
Siemens |
Siemens |
|
Machine size( L*W*H) |
mm |
1600*1400*1800 |
1600*1400*1800 |
2150*1650*1900 |
2400*1600*1850 |
Machine weight |
kg |
1800 |
2000 |
2600 |
3000 |
Turret |
|
4 or 6 |
4 or 6 |
6 |
8 |
Lubrication |
|
Concentrated lubrication |
Concentrated lubrication |
Concentrated lubrication |
Concentrated lubrication |
