CXK32 Automatic Hardware Cnc Lathe Machine
US$ 18,600 - 18,600
/ Set
1 Set(Min. Order)
- QingDao China
- Money Gram
You May Like
-
CXF-LS40 Cnc Turning and Milling Machine Lathe
-
CXF-LS125 CNC Turning and Milling Composite Machine Tool
-
CXF-LS160 CNC Gear Milling Machine With Turning Lathe
-
CXF-W50 Lathe Cnc Machine for Steel Processing
-
CXF-W80 Cnc Multifunctional Milling Machine Tool/turning Machine
-
CXK32 Machinery Industrial Parts Tools /PH2 1/4'' Screwdriver Bits
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 200mm | Place of Origin | Shandong, China | |
| Brand Name | BLUETOOTHCNC | Model Number | CXF-W50 | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1400X1050X1700mm | Weight | 2000KGS | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

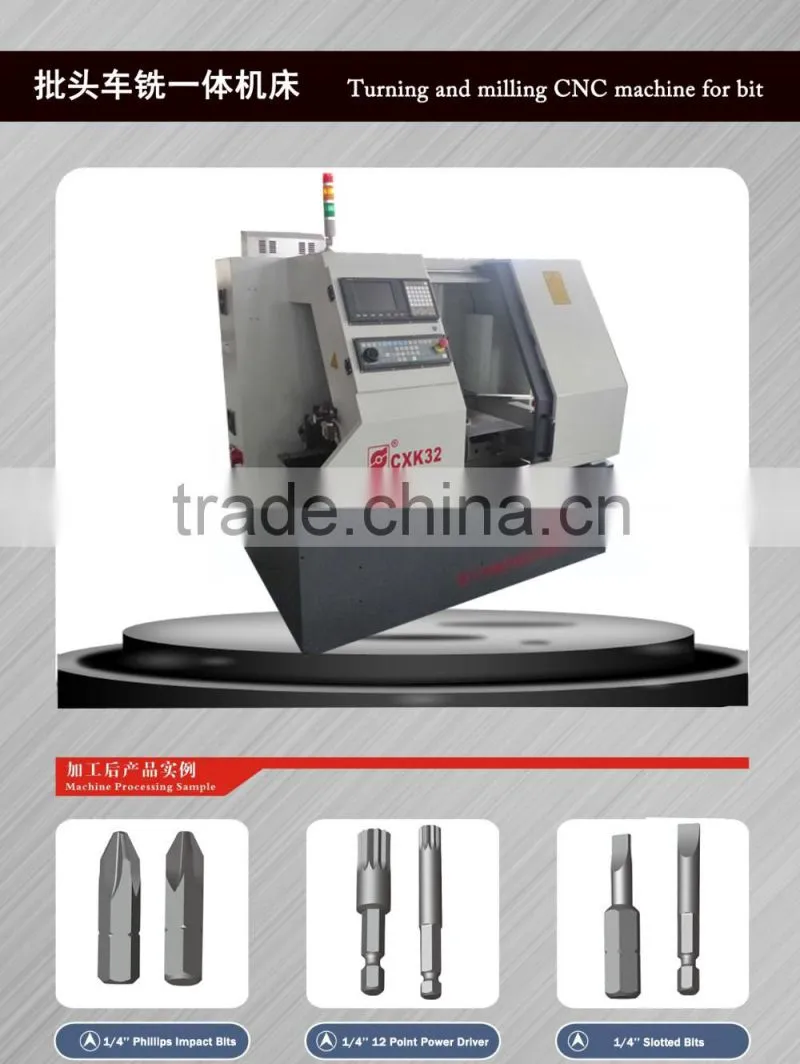

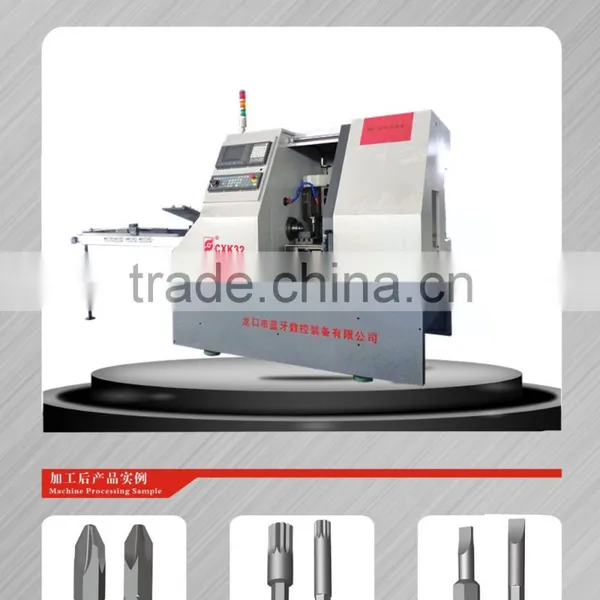

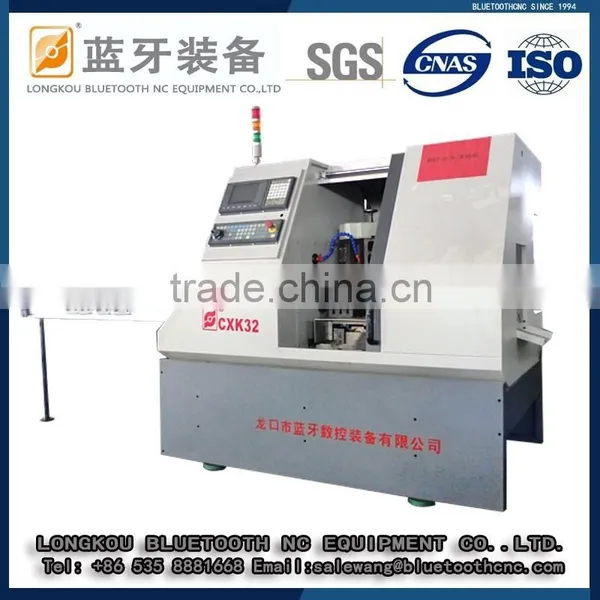

CXK32 CNC Turning and milling composite machine tool
CXK32 CNC turning and milling composite machine for bits can finish turning,milling etc much more process by once clamping on the one end of the bit.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.

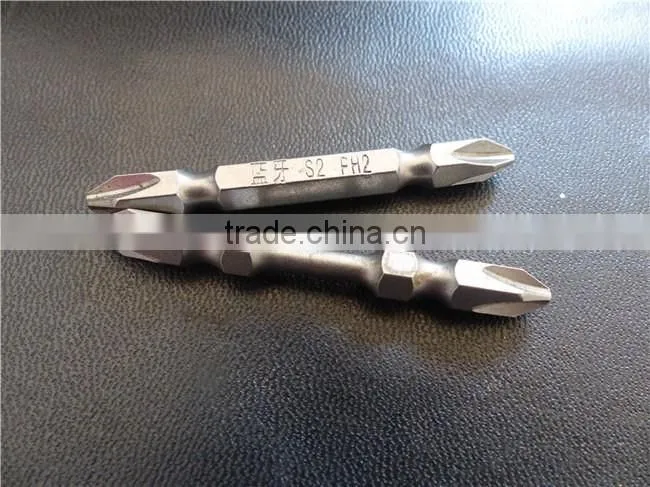

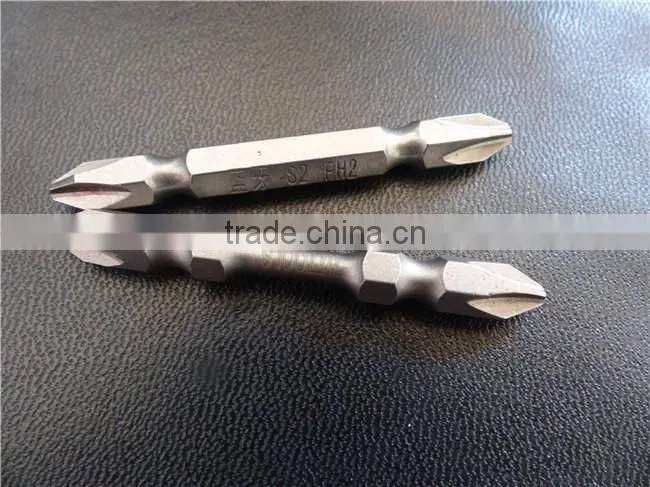

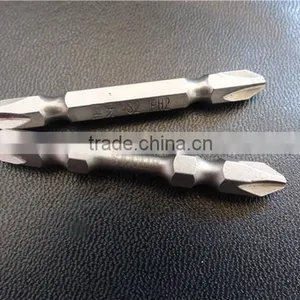

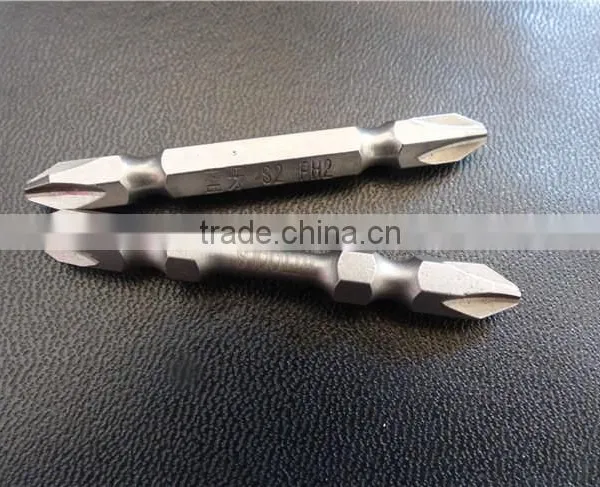

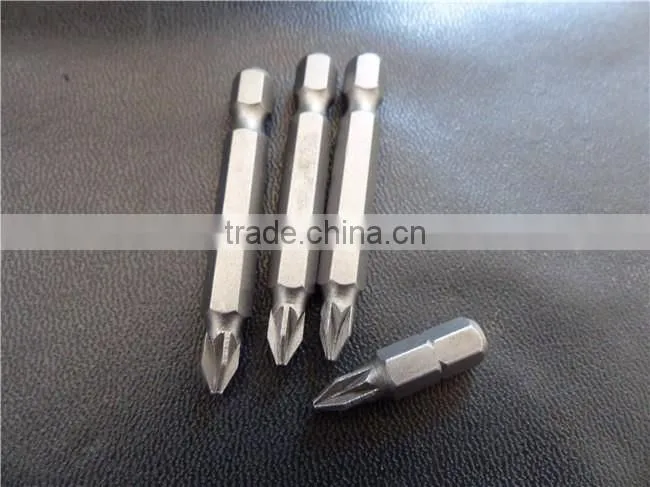

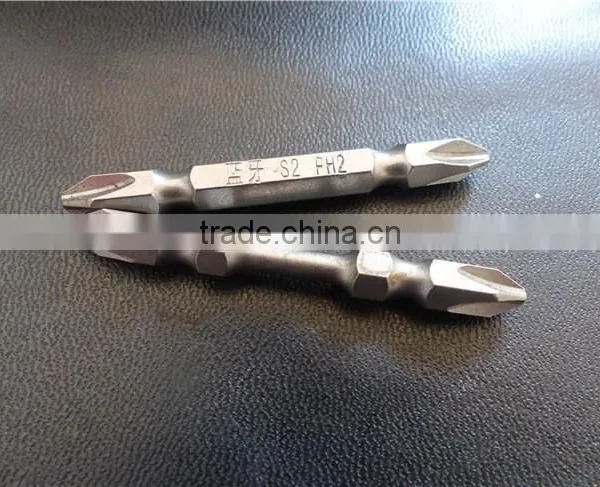

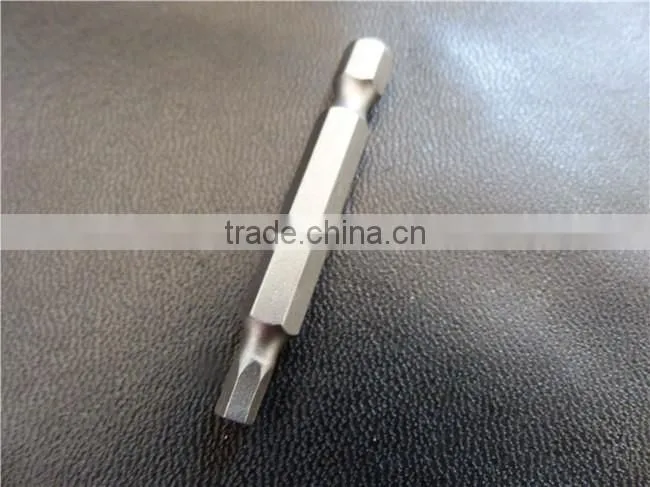

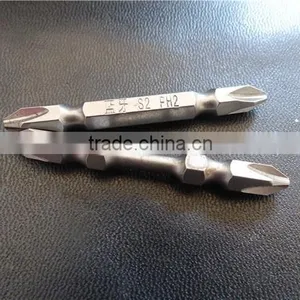

C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail | Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
| |
