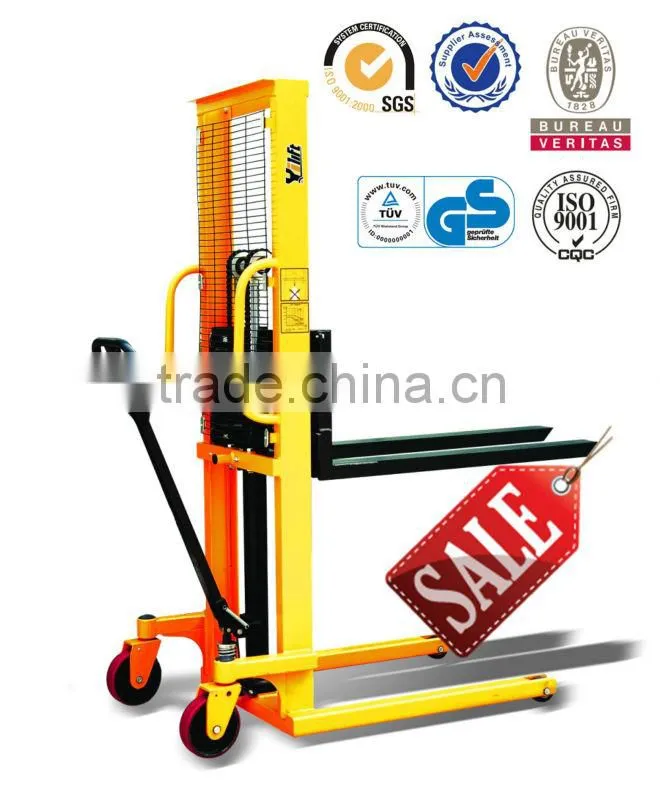

2000kg Hand Stacker PA Series

2000kg Hand Stacker PA Series photo-1
US$ 100 - 500 MOQ: 4 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YI-LIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name YI-LIFT
Model Number PA series
Type Manual Pallet Truck
Power Souce Other, Hand Type
Rated Loading Capacity 500-2000kg
Max. Lifting Height 1500/2500mm
Min. Lifting Height 88mm
Fork Length 1150mm, 1150mm
Fork Width 540mm, 100/120/150/160mm
Overall Dimensions 1604*794*2010mm
Certification CE,GS,SGS,ISO9001,BV
After-sales Service Provided Engineers available to service machinery overseas
  • Latest techology of hydraulic pump with less effort force. Top quality German seat kit.
  • Heavy duty 1 piece "C" section forks for greatest strength.
  • Optiin adjustable forks for wider opplications.
  • PZ series is economic range bult reliable.
  • Conforms to EN1757-1:2001 .

2000kg Hand Stacker PA series2000kg Hand Stacker PA series2000kg Hand Stacker PA series2000kg Hand Stacker PA series2000kg Hand Stacker PA series



Model
PA0515
PA1015
PA1025
PA1515
PA2015



Capacity
kg
500
1000
1000
1500
2000



Load Centre
mm
585
585
585
585
500



Max. Fork Height
mm
1500
1500
2500
1500
1500



Lowered .Fork Height
mm
88
88
88
88
88



Fork Length
mm
1150
1150
2500
1150
1150



Fork Width
mm
160
160
160
150
150



Overall Fork Width
mm
540
540
540
346-710
346-710



Ground Clearance
mm
42
42
24
24
24



Min. Turning Radius(outside)
mm
1086
1086
1086
1100
1100



Front Load Roller
mm
80X70
80X70
80X70
80X70
80X70



Steering Wheel
mm
150X40
150X50
150X50
180X50
180X50



Overall Length
mm
1604
1604
1604
1739
1759



Overall Width
mm
794
760
760
800
800



Overall Height
mm
2010
2010
1960
1977
1977



Net Weight
Kg
210
220
330
250
280



Option adjustable fork available:346-710 mm forkwidth on PA series.


Note: Specification and materials are subject to change without notice.
