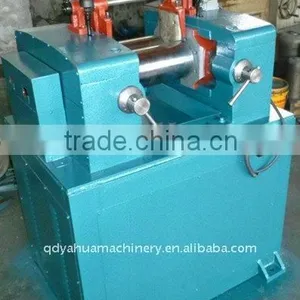

Help CenterXK-160 Laboratory High Quality Open Type Rubber Mixing Mill/Two Roller Rubber Sheet Making Machine Mill
Related Products
-
Modern Professional Two Roll Rubber Refiner Mixing Mill/Rubber Calender/Two Roll Mixing MillNegotiableMOQ: 1 Set -
Two Rolling Mixng MillNegotiableMOQ: 1 Set
-
New Advanced Two Roll Rubber Sheet Curing Press/Rubber Article Moulding MachineryUS$ 4,500 - 22,000MOQ: 1 Set
-
Open Roll Rubber Mill Machine/Rubber Refiner With Stock BlenderUS$ 2,540 - 22,000MOQ: 1 Set
-
Rubber Mixing Mill for Reclaimed Rubber Machine Production LineUS$ 2,540 - 22,000MOQ: 1 Set
Specifications
open type rubber mixing mill1'Two rollers are made from Chilled Cast Iron
2'Main bearings:bearing or Nylon bush
Open mixing mill Open mixing mill is the most widely-used equipment for production of rubber products.It'is mainly used for mixing,sheeting,plasticating and heating the rubber etc.
Features:
1 Chilled alloy cast iron roll is abrasion resistant with long service life. smooth surface is highly polished and scratch proof by cutting knife:high hardness and wear-resistant;
2 There are two kinds of Main bearings for option:Bearing or Nylon bush
3 The roller is hollow structure,which is for adjusting the temperature of the rollers by steam or cooling water in term of different request,Circulation of steam and cooling water is provided through the rolls to control the temperature;
4 The machine is also equipped with and emergency device. When an emergent accident happens, just draw the pull rod, and the machine will stop immediately. It is safe and reliable.
Technical Parameters for Rubber Mixing Mill
| Type | XK-150 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 |
| Working diameter of rolls(mm) | 150 | 250 | 300 | 360 | 400 | 450 | 560 |
| Working length of rolls(mm) | 280 | 620 | 750 | 900 | 1000 | 1200 | 1530 |
| Working line speed of front roll(m/min) | 8 | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 |
| Friction ratio of front and rear roll(m/min) | 1:1.4 | 1:1.17 | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.12 |
| Max gap(mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 |
| Capacity per. batch(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 |
| Driving motor power(kw) | 7.5 | 18.5 | 22 | 30 | 37 | 55 | 95 |
| Overall dimensions(L*W*H)(mm) |
1080*796* 1415 |
3400*1350* 1500 |
3580*1550* 1695 |
3940*1780* 1740 |
4250*1850* 1870 |
5200*2380* 1770 |
6120*2280* 2000 |
| Weight(kg) | 1100 | 3500 | 5205 | 5670 | 7600 | 13000 | 22000 |
Pictures for reference
We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email.
Contact person:Bella Xue
MSN:Bellaxue1990
Skype:bella.xue1990
Phone:0532-83132191/83137817
Mobile:13325017346
