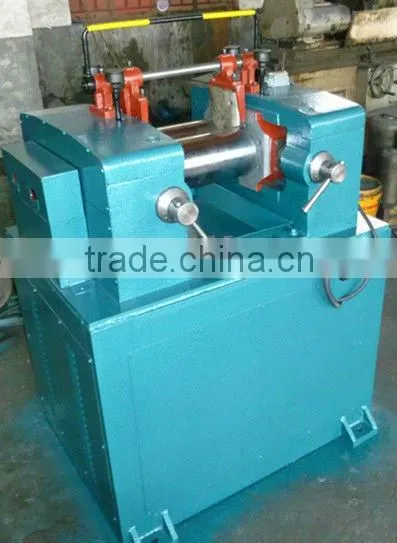

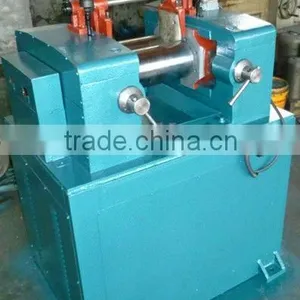

Help CenterLaboratory Equipment High Quality Open Type Rubber Mixing Mill/Two Roller Rubber Sheet Making Machine Mill
Related Products
-
XK-360 Laboratory High Quality Open Type Rubber Mixing Mill/Two Roller Rubber Sheet Making Machine MillUS$ 3,988 - 9,988MOQ: 1 Set -
XK-160 Laboratory High Quality Open Type Rubber Mixing Mill/Two Roller Rubber Sheet Making Machine MillNegotiableMOQ: 1 Set
-
Modern Professional Two Roll Rubber Refiner Mixing Mill/Rubber Calender/Two Roll Mixing MillNegotiableMOQ: 1 Set
-
Two Rolling Mixng MillNegotiableMOQ: 1 Set
-
New Advanced Two Roll Rubber Sheet Curing Press/Rubber Article Moulding MachineryUS$ 4,500 - 22,000MOQ: 1 Set
Specifications
1.waste rubber can be used circularly2.small volume and light weight, convenient to package and handle
3.clear experiment
Open mixing mill Open mixing mill is the most widely-used equipment for production of rubber products.It'is mainly used for mixing,sheeting,plasticating and heating the rubber etc.
Function
1.This machine is suitable for reclaimed rubber plants, transmission belt factory, conveyor belting factory, rubber products factory, shoe factory,cable factory, rubber hose factory, seals and rubber industry.
2.This machine is mainly used for the mixing of natural rubber or reclaimed rubber after desulphurization to mixing ,plastic refining and tablet
Features of two rolls mixing mill:
Tailored structure, easy to operate.
There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.
Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
Chilled alloy cast iron roll is abrasion resistant with long service life.

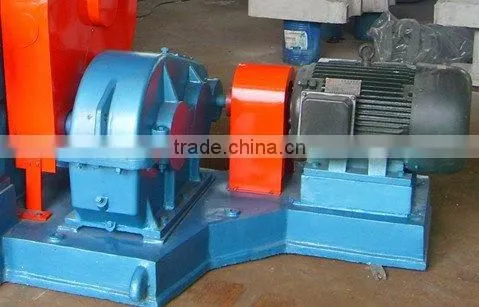

The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
Perfect emergency stop device can ensure the safety of personnel and equipment.
The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
Stock pan is easy to clean up with dislodging device.
Human nature designed operating system reduces labor intensity.
Modular structure offers various structures for customers' option.
The flexible design system can satisfy customers' special design requirements within the shortest time.
A load test running will be made to the assembled equipment in our company to save debugging time for customers.
Technical Parameters for Rubber Mixing Mill
| Type | XK-150 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 |
| Working diameter of rolls(mm) | 150 | 250 | 300 | 360 | 400 | 450 | 560 |
| Working length of rolls(mm) | 280 | 620 | 750 | 900 | 1000 | 1200 | 1530 |
| Working line speed of front roll(m/min) | 8 | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 |
| Friction ratio of front and rear roll(m/min) | 1:1.4 | 1:1.17 | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.12 |
| Max gap(mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 |
| Capacity per. batch(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 |
| Driving motor power(kw) | 7.5 | 18.5 | 22 | 30 | 37 | 55 | 95 |
| Overall dimensions(L*W*H)(mm) |
1080*796* 1415 |
3400*1350* 1500 |
3580*1550* 1695 |
3940*1780* 1740 |
4250*1850* 1870 |
5200*2380* 1770 |
6120*2280* 2000 |
| Weight(kg) | 1100 | 3500 | 5205 | 5670 | 7600 | 13000 | 22000 |

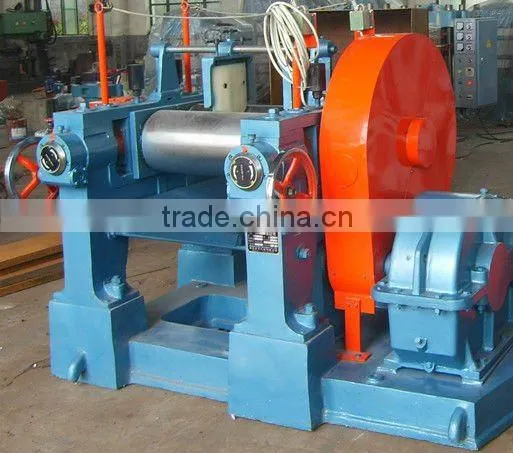

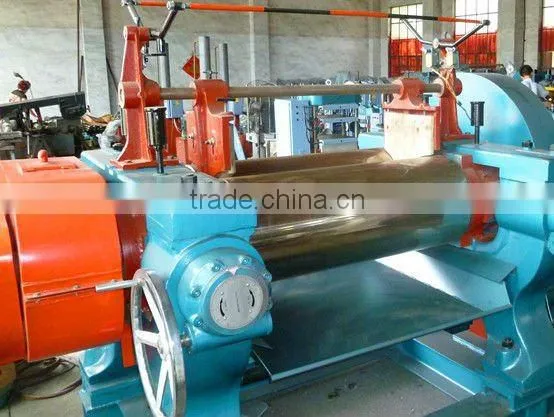

Pictures for reference
We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email.
Contact person:Bella Xue
MSN:Bellaxue1990
Skype:bella.xue1990
Phone:0532-83132191/83137817
Mobile:13325017346
