Help CenterHot Sales VF Alloy and Bearing Steel 1390 Linear Guides
Related Products
-
CO2 Laser Tube Stand Preferential Price Good QualityUS$ 16 - 16MOQ: 2 Pairs -
Top Quality Best Sell pu Open Ended Timing Belt ProducerNegotiableMOQ: 50 Meters
-
Open Ended Timing Belt for IndustryNegotiableMOQ: 50 Meters
-
Extra Long Open Ended BeltNegotiableMOQ: 50 Meters
-
Power Transmission pu Open End Timing Belt BeltNegotiableMOQ: 50 Meters
Specifications of the adjustable Linear Guide
ViFa Company provide whole laser mechanical parts for all the models. If you want, please kindy contact us.

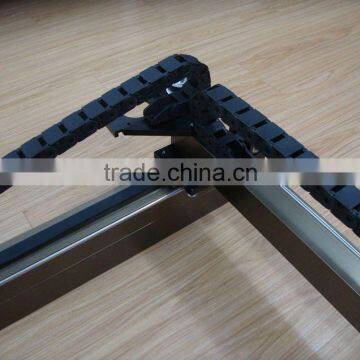

WeiFa 500*700 Double Head XY Stages complete kit for DIY CO2 Laser Machine Linear Guide
Professional WeiFa 5070 X-Y Stages complete kit comes with: single/double/ three/ four/ five laser head, mounts, and reduction gear for building a CO2 laser machine. We provide a warranty to cover any defective parts within 2 years of your purchase!
Kit major parts summary :
- 5x 2" anodized aluminum base bars
- 1x "X" slider & 2x "Y" slider
- 2:1 reduction gear box for X & Y
- 2x Nema 23 high torque3-phase 5A stepping motor
- 2x 3DM583 stepping driver
- 2x laser head for 25mm mirror and 20mm lens
- 4x mirror mounts for 25mm mirror
- 4x tube mounts
- 2x limit switches
- 4x 3-band axial coupling
- 1x "X" slider track
- 2x "Y" slider track
- 2x stainless steel Y axial
Specification of the linear guide
-Working area: 500mm x 700mm (24" x 36")
-Condition: New
-Speed: X: 1000mm/s, Y: 550mm/s (with driver set to 1/32)
Specification
X motor:
- Brand: Leadshin 573S15 3-phase
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 6
- Weight: 1.1Kg (2.4lb)
- Length: 79mm
Y motor
- Brand: Leadshine 573S15
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 6
- Weight: 1.1Kg (2.4lb)
- Length: 79mm
Stper Motor Driver
Brand:Leadshine 3DM583
- Extra-low motor noise offers excellent quietness
- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Self-test and Auto-configuration technology, offers optimum responses with different motors
- Microstep resolutions programmable, from full-step to 102,400 steps/rev
- Supply voltage up to +60 VDC
- Output current programmable, from 0.5A to 8.3A
- Pulse input frequency up to 200 KHz
- Automatic idle-current reduction
- Supports PUL/DIR and CW/CCW modes
- Suitable for 3/6 leads 3-phase moto
