Help CenterSales Well Alloy Slide Rail
Related Products
-
CO2 Laser Cutting Machine Spare PartsUS$ 700 - 740MOQ: 1 Set -
Sales Well CO2 Laser Cutting Machine Spare Parts Linear GuidesUS$ 400 - 430MOQ: 1 Set
-
Laser Cutting Machine Spare PartsUS$ 550 - 573MOQ: 1 Set
-
Sales Well CO2 Laser Engraving Machine Parts Alloy Linear GuidesUS$ 400 - 430MOQ: 1 Set
-
High Quality CO2 Laser Engraving Machine Spare Parts Alloy Linear GuidesUS$ 400 - 430MOQ: 1 Set
Specifications of the adjustable rail slide rail
Weifa Company provide whole laser mechanical parts for all the models. If you want, please kindy contact us.

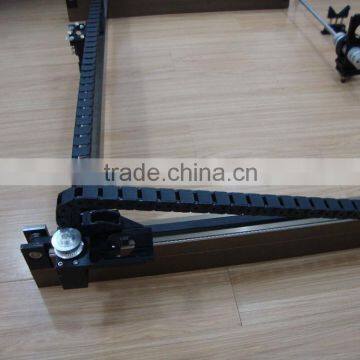

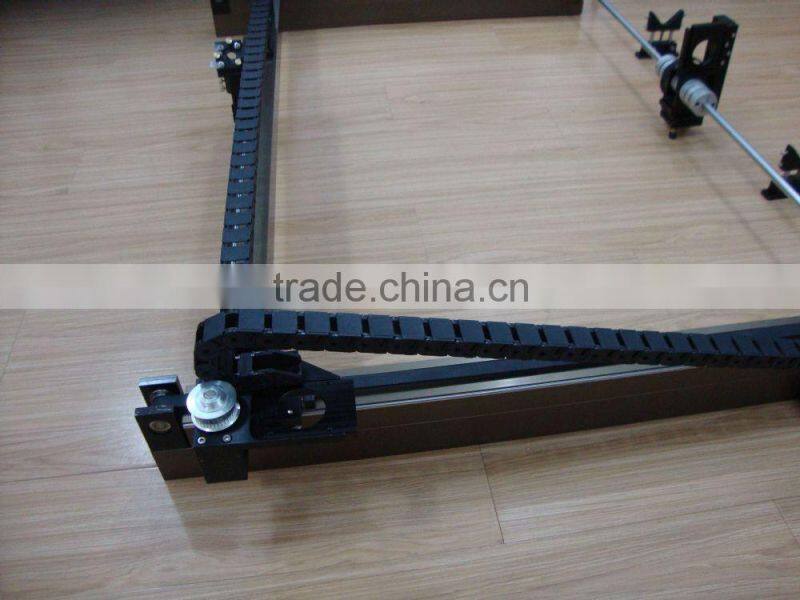

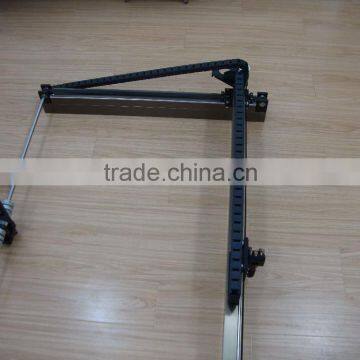

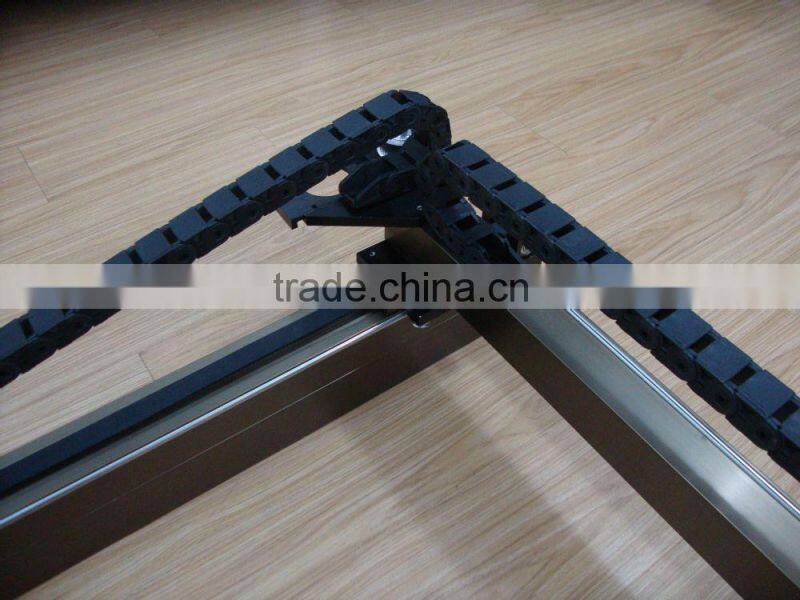

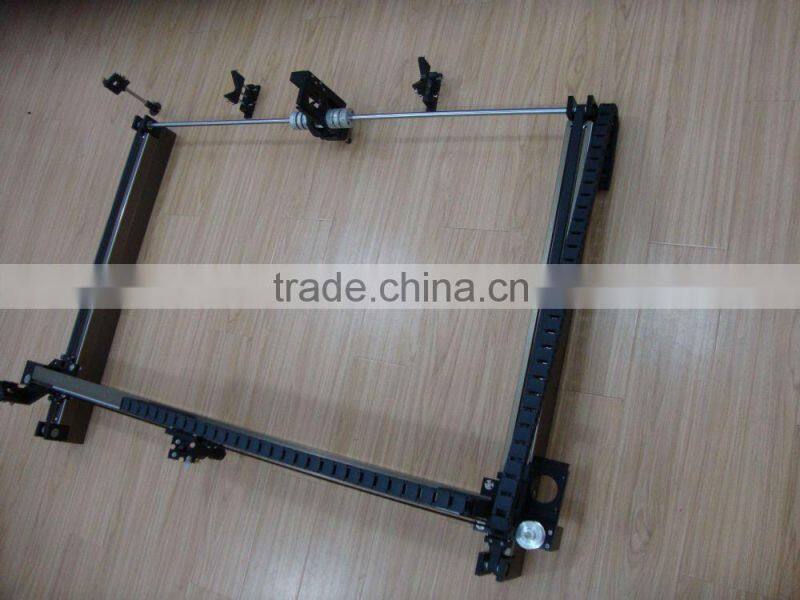

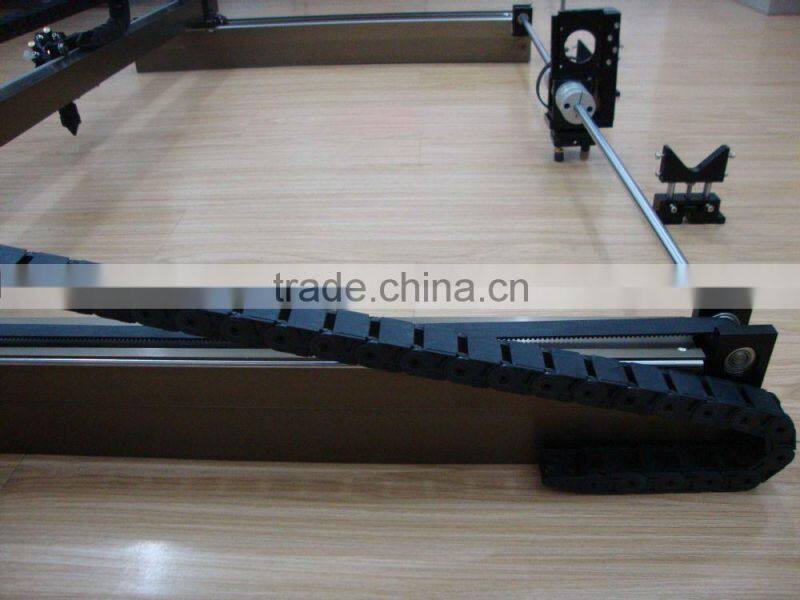

WeiFa 500*700 Double Head XY Stages complete kit for DIY CO2 Laser
Professional WeiFa 5070 X-Y Stages complete kit comes with: single/double/ three/ four/ five laser head, mounts, and reduction gear for building a CO2 laser machine. We provide a warranty to cover any defective parts within 2 years of your purchase!

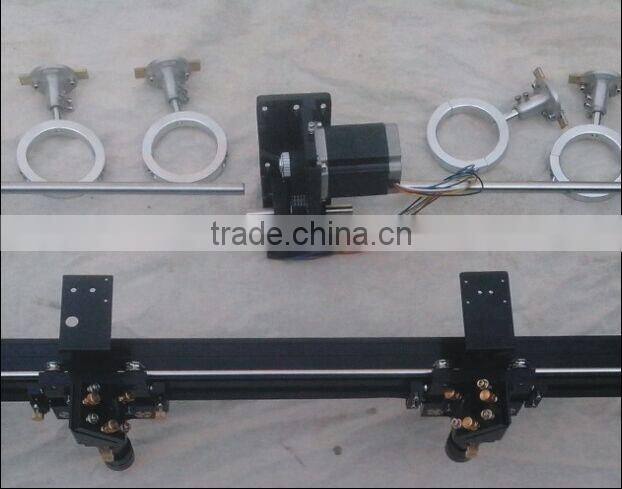

Kit major part summary :
Kit major parts summary :
- 5x 2" anodized aluminum base bars
- 1x "X" slider & 2x "Y" slider
- 2:1 reduction gear box for X & Y
- 2x Nema 23 high torque3-phase 5A stepping motor
- 2x 3DM583 stepping driver
- 2x laser head for 25mm mirror and 20mm lens
- 4x mirror mounts for 25mm mirror
- 4x tube mounts
- 2x limit switches
- 4x 3-band axial coupling
- 1x "X" slider track
- 2x "Y" slider track
- 2x stainless steel Y axial
Specification
-Working area: 500mm x 700mm (24" x 36")
-Condition: New
-Speed: X: 1000mm/s, Y: 550mm/s (with driver set to 1/32)
Specification
X motor:
- Brand: Leadshin 573S15 3-phase
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 6
- Weight: 1.1Kg (2.4lb)
- Length: 79mm
Y motor
- Brand: Leadshine 573S15
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 6
- Weight: 1.1Kg (2.4lb)
- Length: 79mm
Stper Motor Driver
Brand:Leadshine 3DM583
- Extra-low motor noise offers excellent quietness
- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Self-test and Auto-configuration technology, offers optimum responses with different motors
- Microstep resolutions programmable, from full-step to 102,400 steps/rev
- Supply voltage up to +60 VDC
- Output current programmable, from 0.5A to 8.3A
- Pulse input frequency up to 200 KHz
- Automatic idle-current reduction
- Supports PUL/DIR and CW/CCW modes
- Suitable for 3/6 leads 3-phase moto
