Specifications
Automotive Rubber Bushing/ Valve Diaphragm Curing Press1.high speed, inorout mold
2.PLC control,easy operation
3stabl

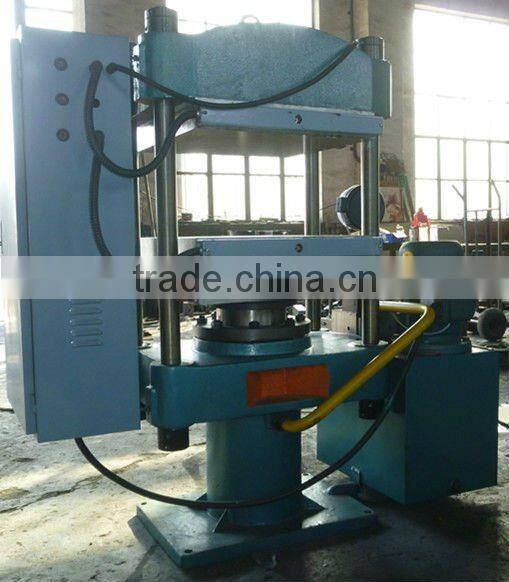

Automotive Rubber Bushing/household rubber products/ Valve Diaphragm Curing Press
1.Main uses
The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine.
We have both column and frame structure .
2.Advantages:
1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high –quality materials.
2 Hydraulic station and electric cabinet are Located in both sides of the main engine.
3 Conveniently operated.
4 Without oil spilling or off pressure.
5.Excellent reputation .
3. Technical Parameter as follows:
| Type | XLB-D300*300*1 | XLB-D350*350*2 | 500*500*2 | 800*800*1 | 1400*1700*2 | 2000*2000*2 | 1600*1800*1 |
| Nominal mounding power(MN) | 0.25 | 0.25 | 0.5 | 1.00 | 8.00 | 6.00 | 8.00 |
| Plate size(mm) | 300*300 | 350*350 | 500*500 | 800*800 | 1400*1700 | 2000*2000 | 1600*1800 |
| Working layer number | 1 | 2 | 2 | 1 | 2 | 2 | 1 |
| Piston stroke(mm) | 250 | 250 | 250 | 300 | 700 | 600 | 300 |
| Plate unit area pressure(Mpa) | 2.8 | 2.1 | 2.0 | 1.6 | 3.4 | 1.5 | 2.8 |
| Plate distance(mm) | 125 | 125 | 125 | 250 | 350 | 300 | 300 |
| Piston diameter(mm) | 152 | 152 | 200 | 300 | 400 | 340 | 400 |
| Working fluid pressure(Mpa) | 13.8 | 13.8 | 16.0 | 14.1 | 15.9 | 16.5 | 15.9 |
| Number of cylinder | 1 | 1 | 1 | 1 | 4 | 4 | 4 |
Service after sale:
We giveone year quality guaranteeand long-term technical support. We also can train your workers for free. If you need, we can install and assemble the rubber hydraulic vulcanizing press machine in your workshop. And you should pay for the necessary costs, according to the international tradition.
Qingdao Yahua Rubber Machinery is 100% RUBBER MACHINERY manufacturer
Passed ISO9001:2008 certificate
Contact Person: Bella Xue
Office phone: 0532-83132191/83137817
Office Fax: 0532-83137817
Mobile phone: 13325017346
