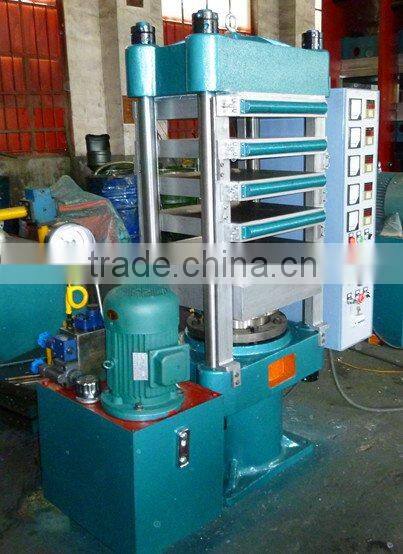

Help CenterHigh Performance Rubber Floor Mats Vulcanizer/Rubber Tile Vulcanizing Press /Rubber Underlay Vulcanizing Mould Press
Related Products
-
HYDRAULIC RUBBER TILES VULCANZING PRESS MACHINEUS$ 5,000 - 7,000MOQ: 1 Set -
Crumb Rubber Floor Tile Making Press MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
Rubber Interlocking Tile Making MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
Rubber Gasket MachineUS$ 2,000 - 8,000MOQ: 1 Set
-
Promotion!!Rubber Mouse Pad Making Machine/Automotive Electric Heating Rubber Sheet Curing PressUS$ 3,450 - 36,500MOQ: 1 Set
Specifications
1'Plate vulcanizing press ISOcertificate2'Mainly used for vulcanizing various of rubber products and non-model products
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
Also named:
Rubber molding press; Hydraulic Molding Machine; hydraulic press; plate press, compression press; plate vulcanizing machine,vulcanizer.
Main usage:
1, The frame type plate vulcanizer applies to vulcanize all kinds of rubber and plastic mould products as well as non-mould products.
2, Applicable line:Rubber Sheet, Oil Seal,O Ring,Gasket, Engine Mountings,Hardware Rubber, Molded Rubber Parts and etc.
Characteristic:
1.This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
2. The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
3. Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
4. Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
5.The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
Parameter:
| Model XLB-D | 400*400*2 | 500*500*2 | 500*600*2 | 450*450*4 | 400*400*2 | 400*500*1 | 300*300*2 | 350*350*1 |
| Nominal Mold Force(MN) | 0.80 | 0.80 | 0.80 | 0.63 | 0.50 | 0.50 | 0.25 | 0.25 |
| Plate Specification(mm) | 400*400 | 500*500 | 500*600 | 450*450 | 400*400 | 400*500 | 300*300 | 350*350 |
| Working Layer Number | 2 | 2 | 2 | 4 | 2 | 1 | 2 | 1 |
| Plunger Stroke(mm) | 250 | 300 | 250 | 250 | 300 | 300 | 250 | 250 |
| Plate Unit Pressure(Mpa) | 5.0 | 3.2 | 2.7 | 3.1 | 3.1 | 2.5 | 2.8 | 2.1 |
| Plate Distance(mm) | 125 | 150 | 125-200 | 62.5 | 150-250 | 300 | 125 | 125 |
| Plunger Diameter(mm) | 250 | 250 | 250 | 200 | 200 | 152 | 152 | |
| Working Fluid Pressure( Mpa) | 16.2 | 16.2 | 16.2 | 12.8 | 16 | 16 | 13.8 | 13.8 |
| Total Heating Power | 9 | 9 | 10.8 | 15.0 | 9 | 7.2 | 7.2 | 4.8 |
| Heating Type | Electricity | Electricity | Electricity | Electricity | Electricity | Electricity | Electricity | Electricity |
| Highest Temperature | 200°C | 200°C | 200°C | 200 | 200 | 200 | 200 | 200 |
| Structure Form | Pillar | Pillar | Pillar | Four Column | Four Column | Four Column | Four Column | Four Column |
| Motor Power | 1.5KW,940r/min | 1.5KW,940r/min | 2.2KW,1420r/min | 2.2KW,1400r/min | 2.2KW,1430r/min | 2.2KW,1430r/min | 2.2KW, 1420r/min | 2.2KW, 1420r/min |
| Dimension(length*width*height) | 1300×650×1400 | 1300×1400×650 | 1400×700×1600 | 1325*650*1670 | 1300×580×1900 | 1300×600×1545 | 1300*400*1400 |
| Type | XLB-DQ1200×1200×2 | XLB-DQ1300×2000×1 | XLB-Q1200×2500×1 | XLB-Q1500×2000×1 | XLB-Q2000×3000×1 | XLB-Q1400×5700×1 |
| Total pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
| Platen size(mm) | 1200×1200 | 1300×2000 | 1200×2500 | 1500×2500 | 2000×3000 | 1400×5700 |
| Daylight (mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| No of Daylights | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate Unit Area pressure(kg/cm2) | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main motor power(kw) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
| Overall dimension(L×W×H) (mm) | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 | 2900×3200×2860 | 2400×5800×3600 |
| Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
Above is only part of our standard technical parameter, we also can manufacture non-standard product according to customer's specific request.
As a bigger and quality rubber machine manufacture,we gain more and more clients. If you need ,please contact us as soon as possible.
