Waste Tire Recycling Machine
- 20 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rubber Cutting Machine | Place of Origin: | Shandong, China |
Brand Name: | Yahua | Model Number: | model, XKP-450/560 | Voltage: | up to country |
Power(W): | 15kw | Dimension(L*W*H): | 2 container | Weight: | 2 container |
Certification: | ce | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Tire Machine Type: | Tire Recycling Machine |
Product Description
Waste Tire Recycling Machine
1. Application
The machine is to be used for raw rubber cracking and scrip rubber cracking in rubber reclaim industry.
2.
20-60 mesh powder -- dynamic devulcanizer -- open mixing mill -- rubber refiner -- reclaimed rubber sheet
2.Structures of tire recyle line:
Name of product | Quantity | Instruction | ||||
Waste tyre recycled machine | ||||||
Main frame | Shredder of rubber | 1 | Model:XKP400/XKP450/XKP560 | |||

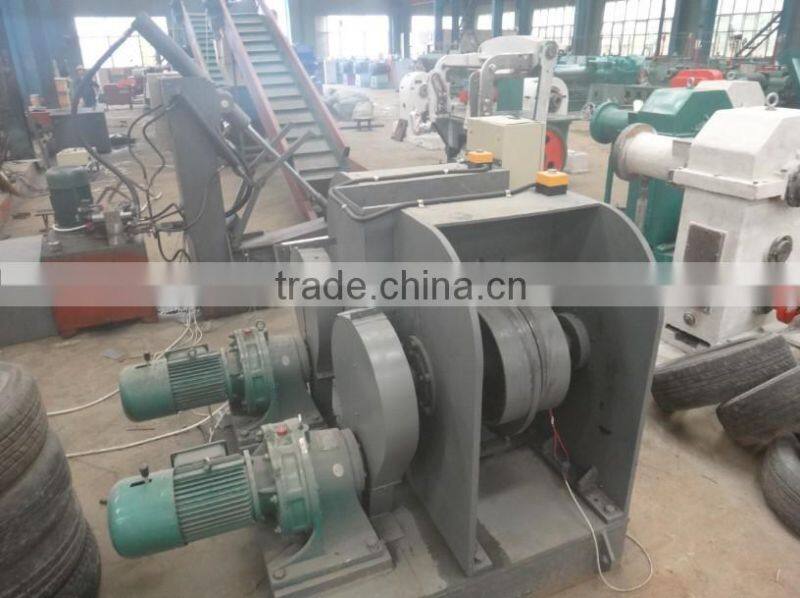

Auxiliary engine | Ring cutter | 1 | The tire side of the junction with the tire top and cut into the knife | |||
Strips cutter | 1 | Will cut off the tire sidewall cut into strips and keep the tire ring | ||||

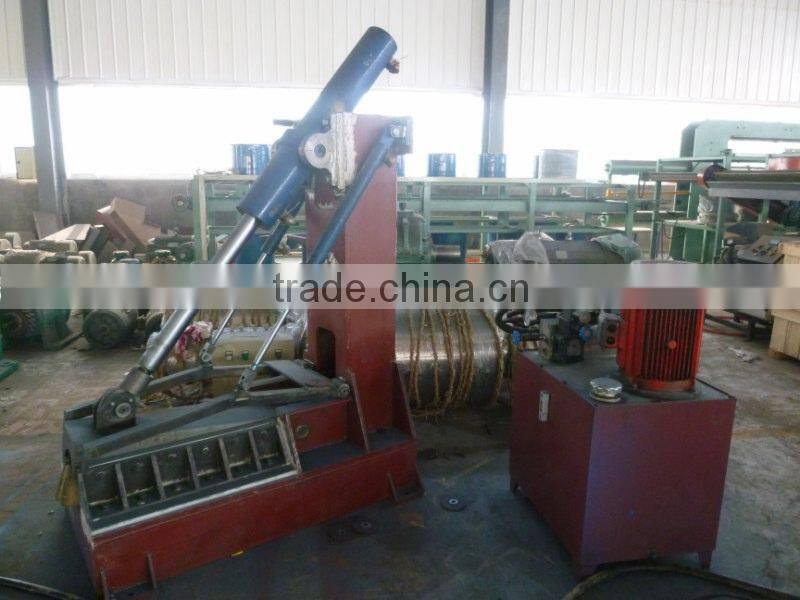

Rim cutter | 1 | Will be cut into strips of tire cut into 3.5 cm square block | ||||
Vibrating screen | 1 | The powder for the first time separation (5-10 mesh) | ||||

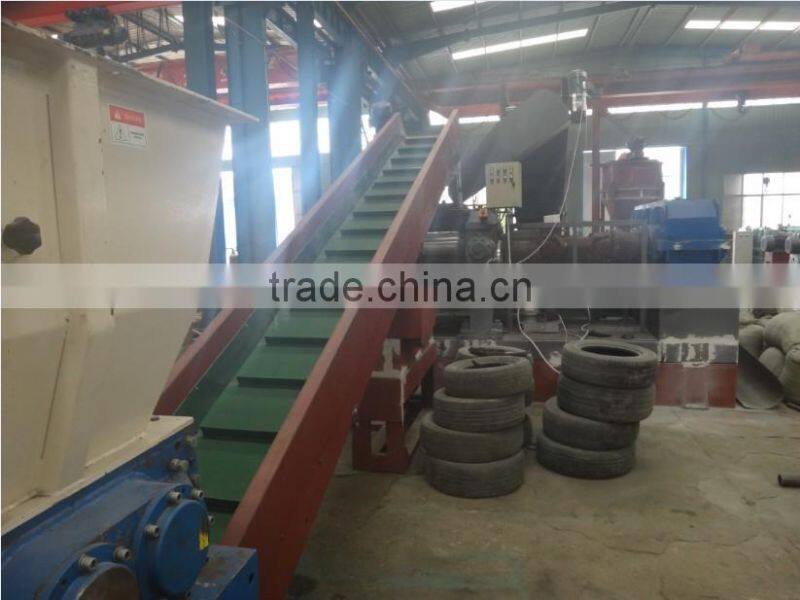

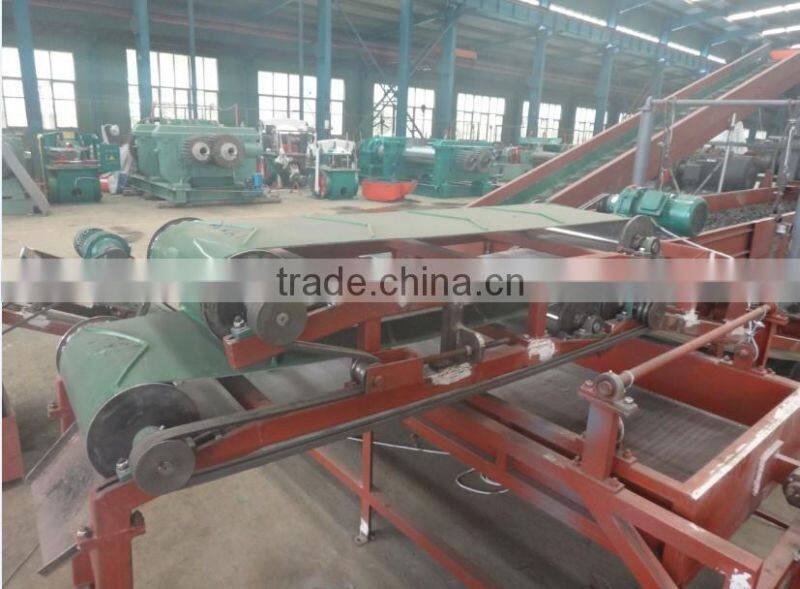

conveyor | 1 | Mesh used for transportation does not meet the requirements to return the host to break powder | ||||
Magnet screen | 1 | The powder in the extraction and separation of metal wire | ||||
Notice |
| More equipment for the whole set of Waste Rubber Equipment | ||||
Steel separator |
| Private and extraction of tire wire ring in the mouth | ||||
Fine milling machine |
| The powder for further processing to 40-100 mesh | ||||
Reclaimed rubber sheet making machine | ||||||
Dynamic devulcanizer | 1 | Model: 3M3, 6M3, 8M3. Use for rubber powder devulcanization | ||||
Open mixing mill | 2 | Model:XK-450,XK-560. Use to speed mixing the devulcanization rubber powder, along with some other material(ingredient).
| ||||
Rubber refiner | 1 | Model:XKJ-450B,XKJ-480. Use for refine rubber sheet,Rule out the impurity in the rubber. The same time, it also have roll reclaimed rubber.
|
3. Tyre crusher
Type | XKP-400 | XKP-450 | XKP-560 |
Front roll diameter(mm) | 400 | 450 | 560 |
Rear roll diameter (mm) | 400(grove roller) | 450 (grove roller) | 510 (grove roller) |
Working length of rolls(mm) | 600 | 650 | 800 |
Front roll surface speed(m/min) | 17.32 | 23.2 | 25.56 |
Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
Max.nip(mm) | 8 | 8 | 15 |
Production capacity(kg/h) | 200-300 | 600-800 | -1500 |
Motor power(kw) | 45 | 55 | 75 |
Overall dimension(mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
Weight(kg) | 7000 | 12000 | 18000 |
