Waste Tire Recycling Rubber Powder Making Machine
1. Application
The machine is to be used for raw rubber cracking and scrip rubber cracking in rubber reclaim industry.
2.

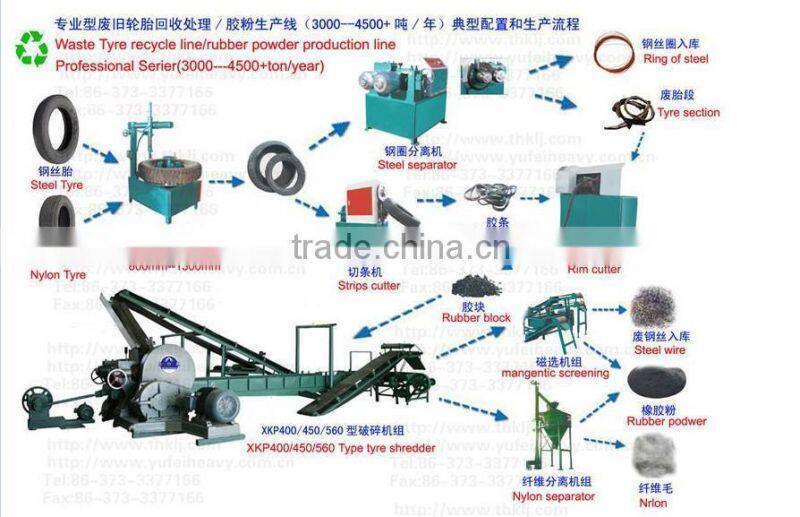

20-60 mesh powder -- dynamic devulcanizer -- open mixing mill -- rubber refiner -- reclaimed rubber sheet

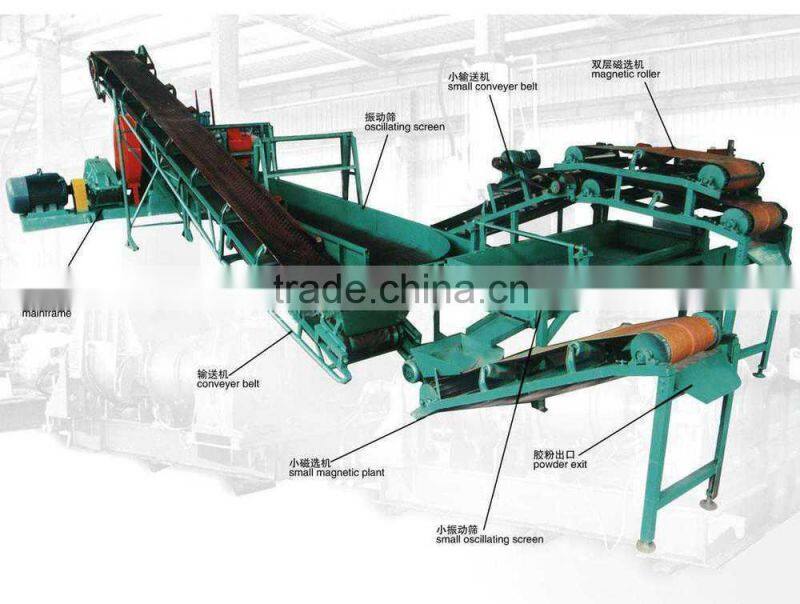

2.Structures of tire recyle line:
Name of product |
Quantity |
Instruction |
||||
Waste tyre processing rubber powder making machine | ||||||
Main frame |
Shredder of rubber |
1 |
Model:XKP400/XKP450/XKP560 |
|||
|
Auxiliary engine |
Ring cutter |
1 |
The tire side of the junction with the tire top and cut into the knife |
|||
Strips cutter |
1 |
Will cut off the tire sidewall cut into strips and keep the tire ring |
||||
Rim cutter |
1 |
Will be cut into strips of tire cut into 3.5 cm square block |
||||
Vibrating screen |
1 |
The powder for the first time separation (5-10 mesh) |
||||
conveyor |
1 |
Mesh used for transportation does not meet the requirements to return the host to break powder |
||||
Magnet screen |
1 |
The powder in the extraction and separation of metal wire |
||||
Notice |
|
More equipment for the whole set of Waste Rubber Equipment |
||||
Steel separator |
|
Private and extraction of tire wire ring in the mouth |
||||
Fine milling machine |
|
The powder for further processing to 40-100 mesh |
||||
Reclaimed rubber sheet making machine | ||||||
Dynamic devulcanizer |
1 |
Model: 3M3, 6M3, 8M3. Use for rubber powder devulcanization |
||||
Open mixing mill |
2 |
Model:XK-450,XK-560. Use to speed mixing the devulcanization rubber powder, along with some other material(ingredient).
|
||||
Rubber refiner |
1 |
Model:XKJ-450B,XKJ-480. Use for refine rubber sheet,Rule out the impurity in the rubber. The same time, it also have roll reclaimed rubber.
|
||||
3. Tyre crusher
Type |
XKP-400 |
XKP-450 |
XKP-560 |
Front roll diameter(mm) |
400 |
450 |
560 |
Rear roll diameter (mm) |
400(grove roller) |
450 (grove roller) |
510 (grove roller) |
Working length of rolls(mm) |
600 |
650 |
800 |
Front roll surface speed(m/min) |
17.32 |
23.2 |
25.56 |
Friction ratio |
1:1.38 |
1:1.38 |
1:1.30 |
Max.nip(mm) |
8 |
8 |
15 |
Production capacity(kg/h) |
200-300 |
600-800 |
-1500 |
Motor power(kw) |
45 |
55 |
75 |
Overall dimension(mm) |
3950*1800*1780 |
4770*1846*1835 |
5064*2284*1978 |
Weight(kg) |
7000 |
12000 |
18000 |
