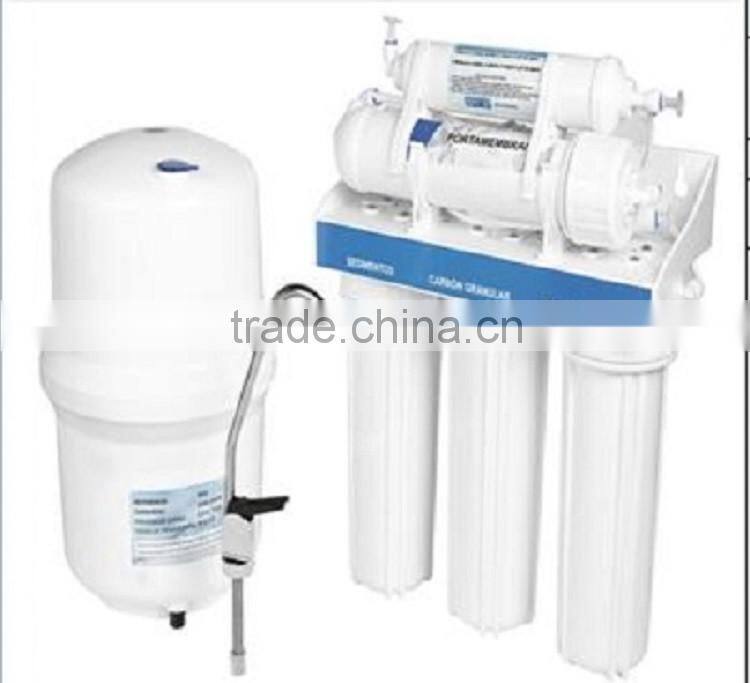

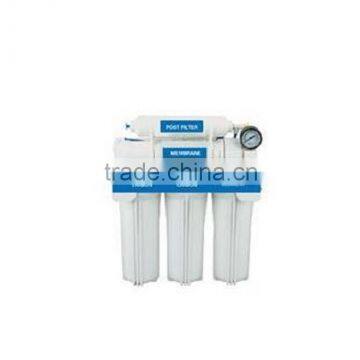

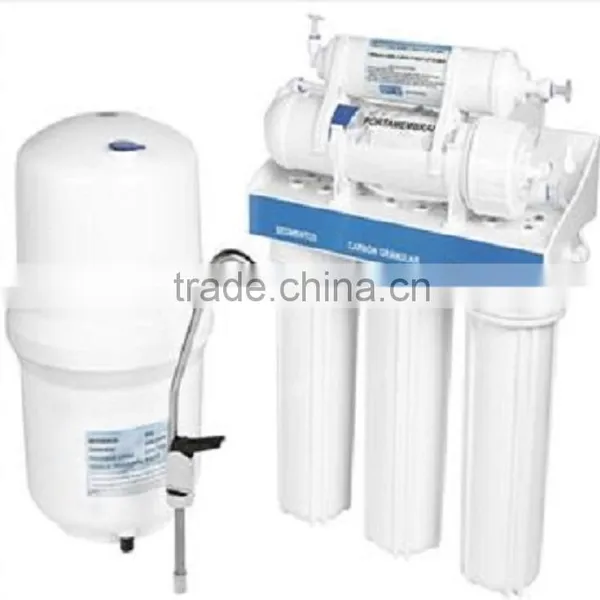

h newly household 5 stages water purification machine
1.Product Description
| MODEL:UF -5-75G standard type | |||||||
| Installation: | Cabinet | Price: | USD48 | moq: 50 sets | |||
| Power | 25W | Capacity: | 50/75GPD PER DAY | ||||
| Voltage | 380V/220V 50HZ | Flush Type: | Handle Flush | ||||
| 5stage filter | Stage | Description | Component | Main Function | |||
| 1 | 5um PP Sediment Filter | PP-10 | Remove the particles, sand,dust and colloid etc. | ||||
| 2 | Granular Carbon Filter | UDF-10 | Remove the chlorine odor,small outgrowth etc. | ||||
| 3 | Block Carbon Filter | CTO-10 | Remove the odor,chlorine,suspension | ||||
| 4 | UF -MEMBRANE | HUINING RO MEMEBRANE | Remove the heavy metal, harmful soluble solid, bacteria,virus,other dissolved matter and chemical drug in the running water | ||||
| 5 | Post inline Carbon Filter | T-33 | Adjust the taste for pure water | ||||
| Accessory | 3.2G TANK | WRENCH | PIPE 5M FAUCET 3.0G TANK | ||||
| Size: weight | 36 x 58 x 42cm 1 /carton/18kgs | ||||||
| Package: 20'/40' | gift box /carton 302/600 ctns | ||||||
| Scope of using: | supply pure water for single bathroom or Kitchen room. | ||||||
*Output water:50G/75G
*without Booster Pump and electrical
*Faucet:HDF012A3
*RO Membrane:ULP-1812-50G/75G
*Filter:10"PP CTO GAC(Granular carbon filter) Post carbon filter
*Pressure tank:3.0G plastic tank or 3.2G steel tank .
*Accessories:goose neck faucet,ball valve and fitting,wrech water tank
*Packing Size:44*36*58CM
Packaging Details: gift box /carton 302/600 ctns

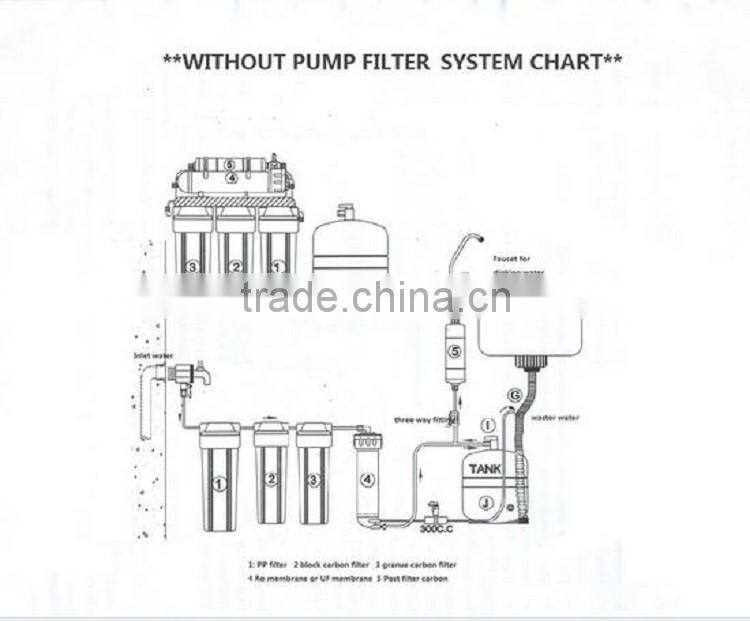

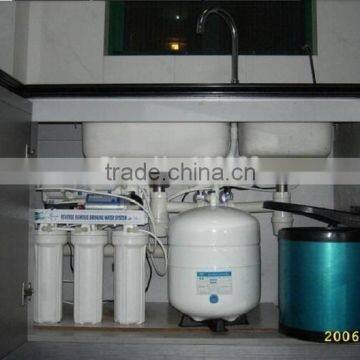

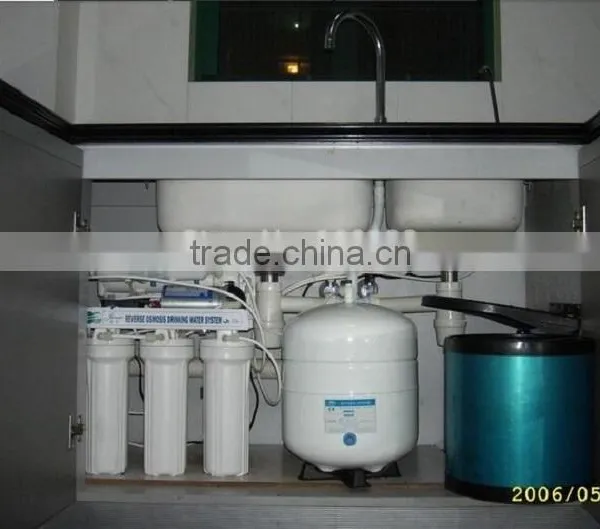

Water purifier undersink for home kichten use without pump
The picture show that with pump .If your local inlet water pressure is more then 50psi or 70psi .You can choose the system without eleactrical pump type
Delivery Detail: 15 - 30 days after receive the payment of 30% deposit
2. Product features
1. Completely no more electricity ,more safer and energy conservation
2. High and new tech, the world first non-elelctric booster pump RO water purifier
3. Save over 50% water than normal RO water purifier , more eco-friendly
4. Components and constructure simplification, save more room and easily install
5. Can operate in low water pressure and work under low and high water pressure
6. Working steadily, remain the constant ratio of pure and sewage water
7. Prolong the useful life of the whole machine

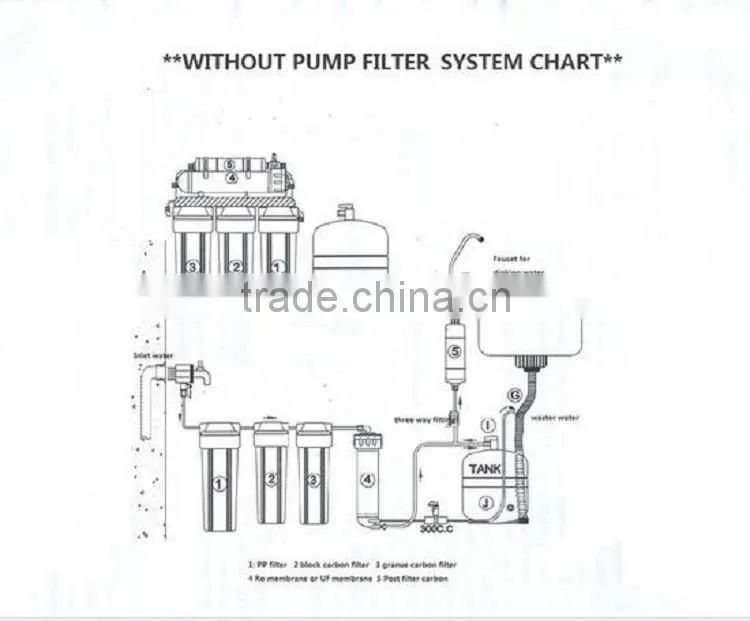

Installation Method
This company recommends that professionals install the machine for you, because
you must use drills and other power tools in the installation process. If you are
installing it yourself, please refer to the following steps

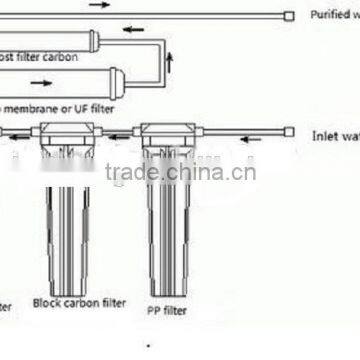

and diagrams:
1. Pre-Installation Preparations
1). Confirm the location the water purifier will be installed (when installing, it should
depend on the actual circumstances)
2).Confirm the various tools required for installation
Adjustable spanner |
1 |
Drill |
1 |
6.2mm drill bit |
1 (waste water hole) |
Hole saw, φ14mm |
1 (high-speed steel or marble hole saw) |
Phillips and flathead screwdrivers |
1 of each |
Scissors |
1 pair |
14-16mm wrench |
1 |
19-21mm multi wrench |
1 |
Needle nose pliers |
1 |
3).Confirm that you have all the connectivity accessories required for installation
4). Prior to installation turn off the water and/or electricity

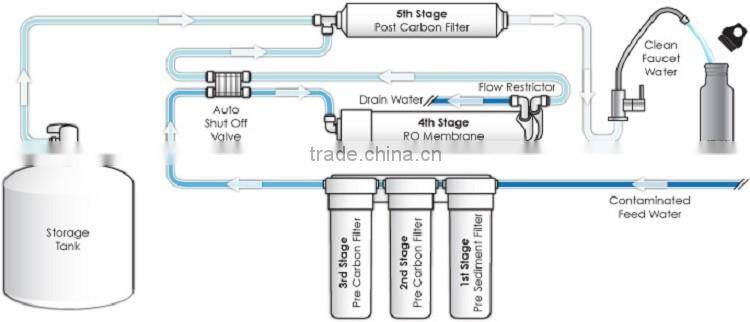

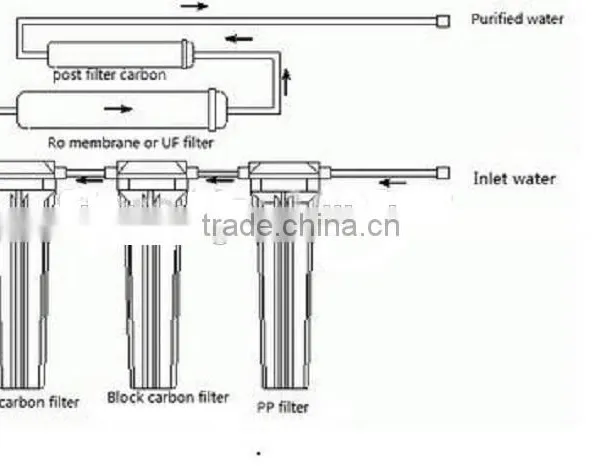

2. Water Purifier Main Parts Function Introduction
Using the current most advanced international RO technology, standard configuration is as follows:
1). First is a 10-inch 5-micron PP filter:
The aperture of the PP filter is 5 microns, can effectively filter rust, sand, other larger
particles and solid impurities in water.
2). Second is a 10-inch 85C granular activated carbon filter:
Can effectively adsorb chlorine, humus, disinfection by-products, odors, colors, and other materials.
3). Third is a 10-inch 1-micron PP filter:
Can further remove small particles in the water, suspended solids, colloids, etc.
4). Fourth stage is RO membrane:
Aperture is .0001 micron (0.1 nm), reduces bacterium by 4,000 fold, reduces viruses
by over 200 fold, so you can effectively
remove bacteria, viruses, heavy metals, pesticide residues, and other harmful
substances from the water.
5). The fifth-stage is a post-activated carbon filter:
Regulates water taste, keeps water fresh.
Dealers, distributors ,wholesaler OEM service offer, Welcome to visit HuiNing!
