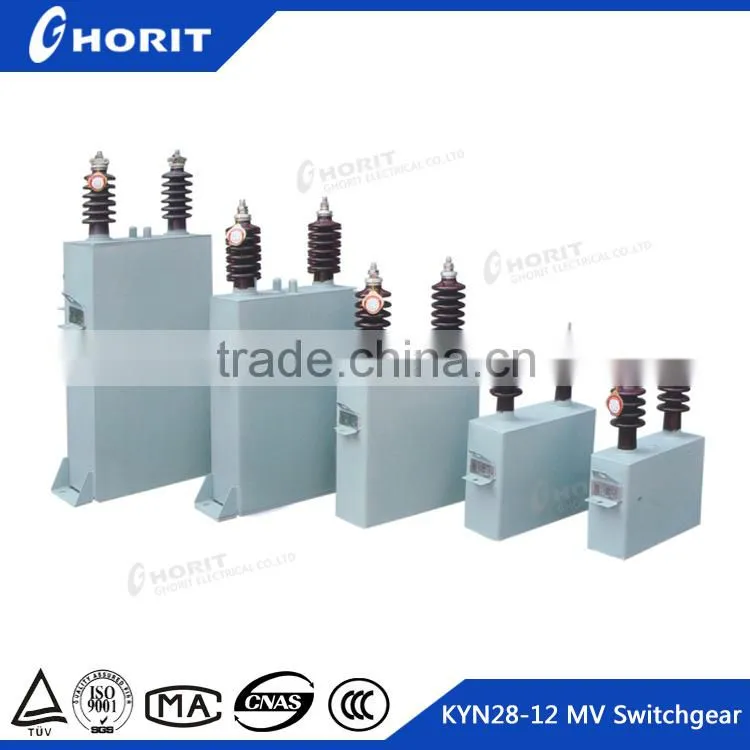

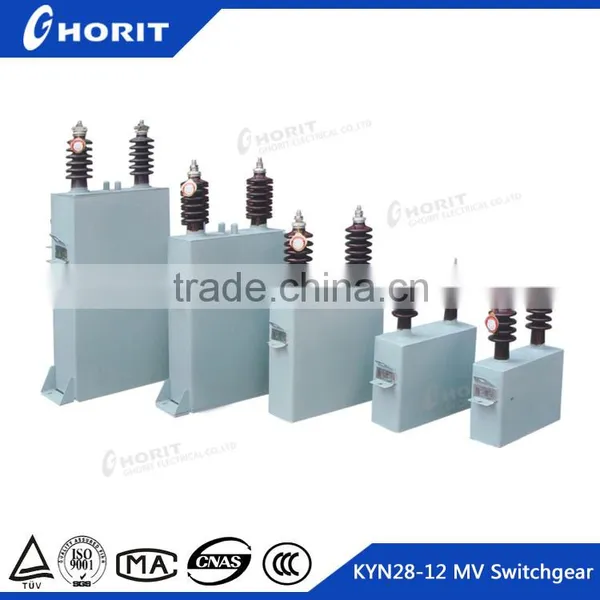

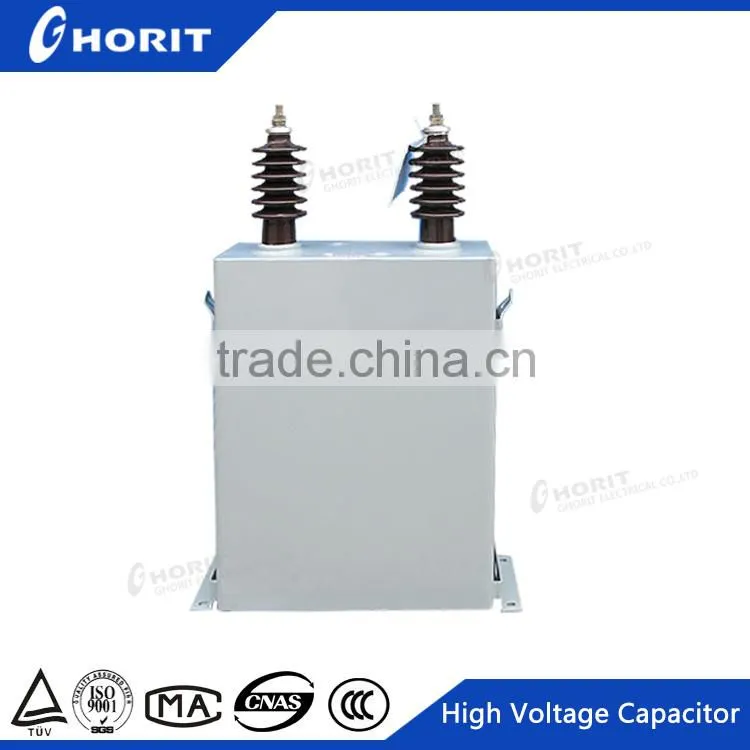

High Voltage AC Filter Capacitor
Technical Data:
Series |
AFM Series |
Rated Voltage Range |
From 220-1000 VAC |
Capacitor Connection |
3 phase (1 phase on request) |
Capacitor Frequency |
50/60 Hz. |
Capacitor Power Range |
1- 120 KVAR |
Dielectric |
Metalized polypropylene film with self healing |
Protection |
IP 42 (IP 54 on request) |
Discharge Resistors |
Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
Tolerance |
±5% |
Maximum Ambient Temperature |
-25 °C--50°C (Other temperature range on request) |
Average temperature within 24 hours below 40°C&average | |
temperature with a year below 30°C | |
Max. Relative Humidity |
≤90% |
Max. Altitude |
≤2000m (Other altitude on request |
Over Voltage Tolerance |
1.1 UN (8 hours max. in every 24 hours) |
1.15 UN (30 minutes in every 24 hours) | |
1.2 UN (5 minutes in every 24 hours) | |
1.3 UN (1 minutes in every 24 hours) | |
Over Current Tolerance |
30% permanently |
Max. Surge Current |
200 times of rated current |
Dielectric Loss |
≤0.2 Watt / KVAR |
Voltage Test |
Between terminals: 2.15 Un for 10 seconds. |
Between terminals to container: 3000VAC for 10 seconds | |
Safety System |
Self protection device |
Capacitor Case Material |
Rust-Proof painted steel |
Execution |
Indoor, minimum distance between units : 50mm |
Standard |
IEC60831 / GBT12747 |

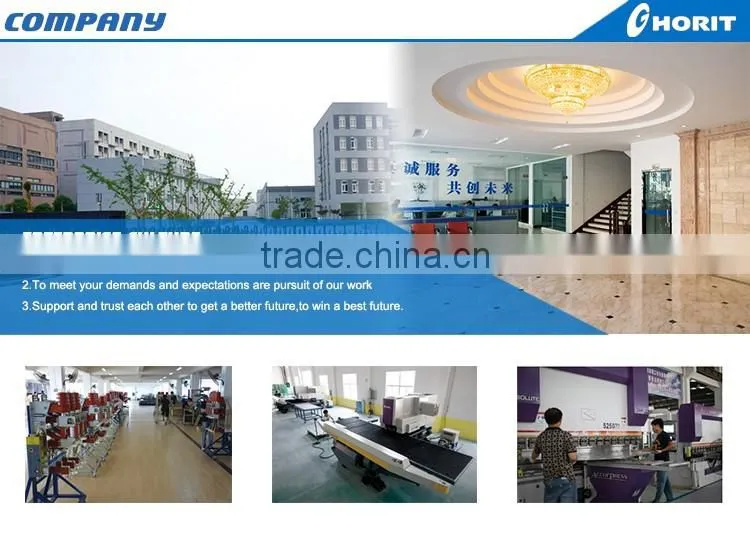

Ghorit Electrical Co.,LTD established in 2000, is a large-scale high and new-tech enterprise specialized in researching, developing, producing, marketing and servicing. The leading products include vacuum circuit breaker, high voltage load disconnecting switches, permanent magnet, various of spring and other high & low voltage electrical component.
Q: If I'm interested in your products when I can get quotation and detail information after send the inquiry?
A:All enquiries will be replied in 24 hours.
Q:Your products seems perfect but what's the difference between you and other suppliers? Because I found some cheaper price!
A: The price is based on the quality all our products are in high quality. And most of the companies' products price are different. Thus, I think First compare the quality Second compare the price is the best way!
Q:I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements in GHORIT.
Q:Can I get a sample before the order because I really don't how is your MCB quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service! Do not hesitate to send inquiry to get the free sample!
Q:What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q:What's the warranty period for your products?
A: One year warranty is no problem.
Q:How to send a inquiry for more information?
A: You can find a textbox at bottom of page then send inquiry through it, also can find our contact
