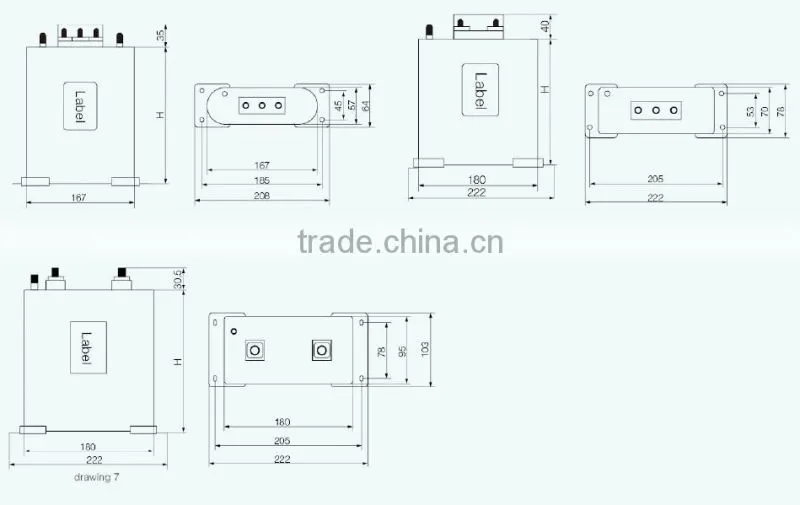

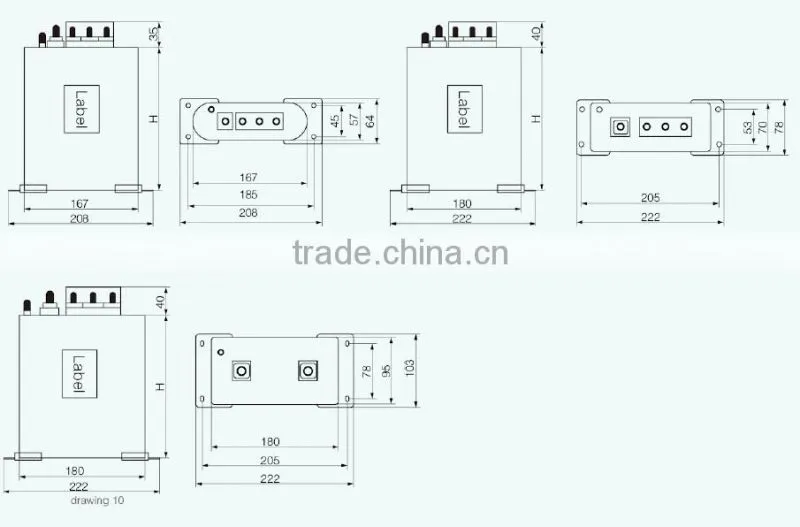

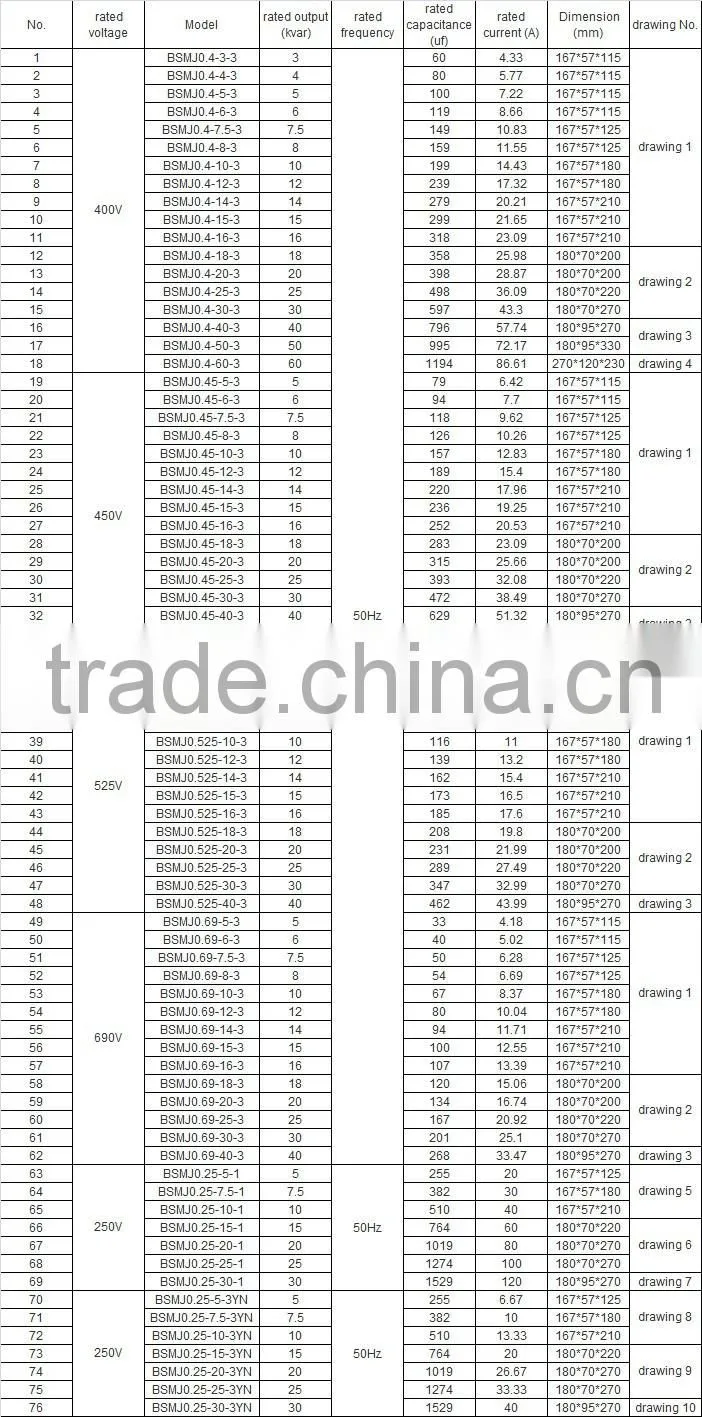

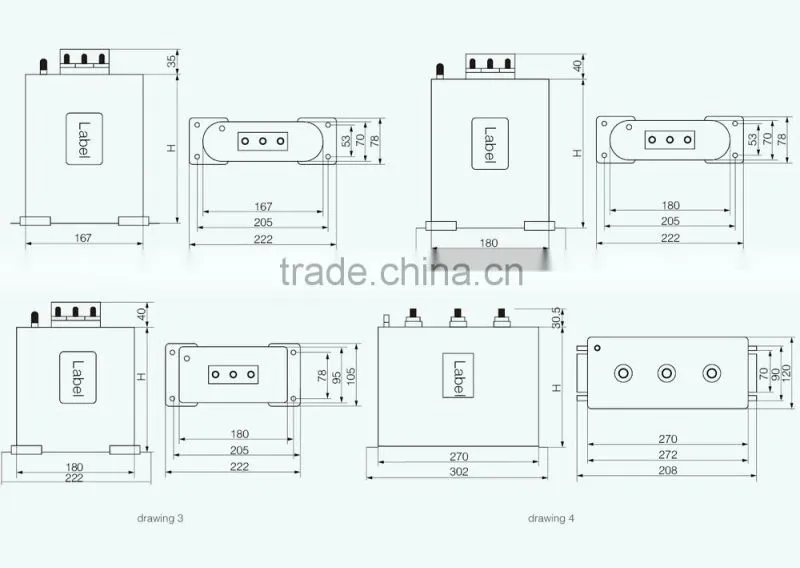

BSMJ series of self healing low voltage shunt capacitor
main Parameter :
1.Ambiebt temperature:-25°C ~+50°C .Humidity ≤ 85% ,Atitudenot higher than;
2.Rated voltage:120VAC,230VAC,400VAC,450VAC,525VAC,690VAC,
750VAC,1050VAC;
3.Rated capacitw:1~80KVar;
4.Capacitance tolerance:-5~+10% ;
5.Tangent of the loss angle:With the power frequency rated voltage 20°C Hour tanδ ≤ 0.1% ;
6.Withstand voltage:Between terminals 2.15 times ratde voltage for
5 secomdes,between terminal and contain and container 3KVac for 10 secomds;
7.Insulation level:Betwee terminals and container 500DC,l minute. R ≥ 1000MΩ;
8.Maximum allowable over-voltage: 1.10 times rated voltage;
9.Max permissible over-current:1.30 times rated current;
10.Self sustained discharge ability:Give Un DC voltage to capacitor, the residual voltage to 75v or lower within 3minutes after power off;
11.Applicable standard:GB/T12747.1-2004.IEC6083l-1996.
main features
1.Compacted and light
Its volume and weight are only 1/4 and 1/5 of the old product because of the using of new dielectric-metallized polypropylene film.
2.Low loss
The real figure is lower than 0.1%,so the capacitor itselfis extremely low the heat it gives out is little and the rise oftemperature is low.So its service.life is very long and it can save energy at the same time.
3.Excel lent self-healing ability
Damage of part of the dielectric caused by over-voltage can be self-healed quickly and return to normal state.So the reliability is much higher.
4.Safety
In wardly equipped self-discharge rseistor and safly equioment.
5.No oil leakage
The capacitor uses advanced.Semi-solid impregnant whose drip melting point is above 70°C ,There will be no loss of oil during the course of using it.And thus the surrounding is out from being polluted.The capacitor itself doesn’t have to run the risk of invalidation caused by oil leakage.
Q: If I'm interested in your products when I can get quotation and detail information after send the inquiry?
A:All enquiries will be replied in 24 hours.
Q:Your products seems perfect but what's the difference between you and other suppliers? Because I found some cheaper price!
A: The price is based on the quality all our products are in high quality. And most of the companies' products price are different. Thus, I think First compare the quality Second compare the price is the best way!
Q:I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements in GHORIT.
Q:Can I get a sample before the order because I really don't how is your MCB quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service! Do not hesitate to send inquiry to get the free sample!
Q:What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q:What's the warranty period for your products?
A: One year warranty is no problem.
Q:How to send a inquiry for more information?
A: You can find a textbox at bottom of page then send inquiry through it, also can find our contact
