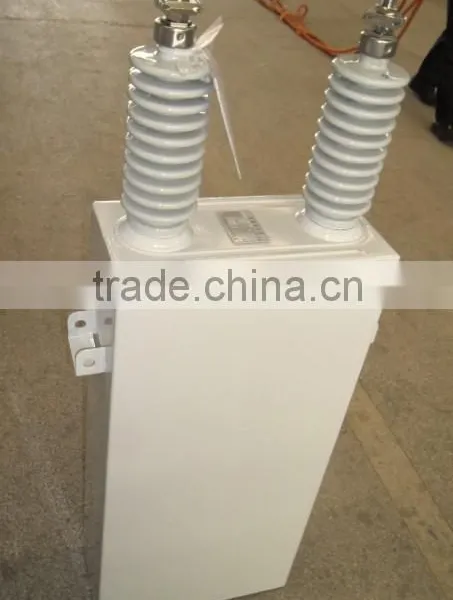

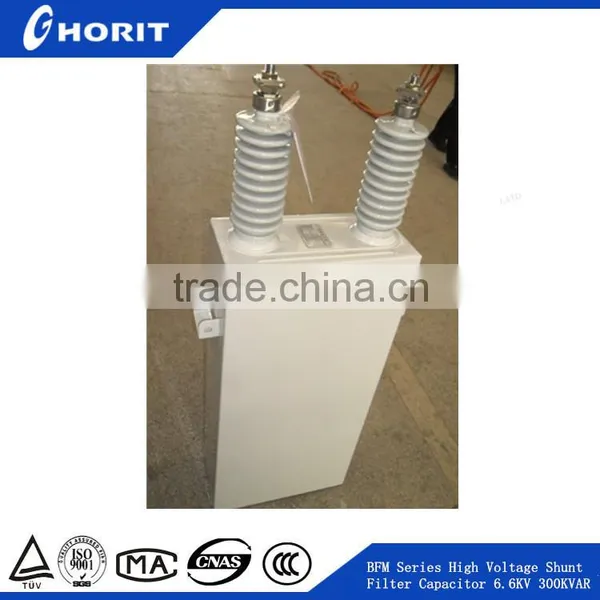

Home > Electrical & Electronics > Passive Components > Capacitor > BFM Series High Voltage Shunt/Filter Capacitor 6.6KV 300KVAR
US$ 80 - 500
MOQ: 20 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ghorit
Model Number:
BFM , BAM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Assembling Shunt CapacitorUS$ 120 - 600MOQ: 5 Units -
BFM Series High Voltage Shunt/Filter Capacitor 12KV 200KVARUS$ 80 - 500MOQ: 20 Units
-
BSMJ Series of Self Healing Low Voltage Shunt Capacitor 525V 40KVAR 3PHASEUS$ 12 - 80MOQ: 50 Pieces
-
Medium Frequency Capacitor (water Cooling Capacitor) 125uf 3000V 700HzUS$ 100 - 600MOQ: 20 Pieces
-
Medium Frequency Capacitor (water Cooling Capacitor)US$ 100 - 600MOQ: 20 Pieces
Place of Origin
Zhejiang, China
Brand Name
Ghorit
Model Number
BFM , BAM
Type
Aluminum Electrolytic Capacitor
Application
Power
Package Type
Surface Mount
Capacitance
12kvar -400kvar
Rated Voltage
1.05kv -12kv
Operating Temperature
-40~45 (BAM), -25~45(BFM)
1. Ambient temperature : BFM type shunt capacitor -25°C~+45°C, BAM type filter capacitor -40°C~+45°C
2. Altitude: not exceed 1000m . If requested altitude above 1000m, have to been special supply on that.
3.Dielectric of between terminal for capacitor should bear one voltage test on below, duration time 10s.
a. power-frequency AC voltage : Ut (~) =2.15Un
b. DC voltage: Ut (-)=4.3Un
4. Capacitor should bear transition over-voltage with first peak not exceed 2.2Un and duration 1/2 period 2.6 For voltage up and higher harmonic, capacitor permit operate on stability over-current with effective value of 1.3In, but for capacitor with max positive deviation, over- current permit up to 1.43In..
5. Difference between measure capacitance and rated capacitance, not exceed -5%~+10% of rated capacitance, the ratio measured by max capacitance and min capacitance no more than 1.06 , which between each two line terminal of three phase capacitor.
6.On power-frequency rated voltage and temperature 20°C, capacitor tangent value of loss angle
(tg δ)≤0.0005
Note: if with discharge resistance and internal fuse , capacitor tangent value of loss angle permit increase 0.0001
7. Capacitor with discharge resistance, reduce from peak of rated voltage to below 75 V within 10min after break with power source. If requested reduce from peak of rated voltage to below 50V within 5min, it need special remind on order.
8. Internal of three phase capacitor with star-connection, each phase with discharge resistance
