Specifications
fully automatic blowing machine(blow mouding machine)high speed with good quality at competitive price
automatic blowing machine

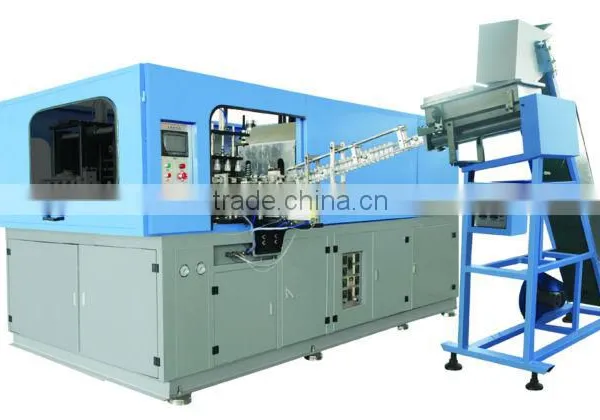

YS2000FA-4 automatic Blow machine is a four cavity ,the max.capacity are 1.5 liters apply to blowing to PET PC PP or PE etc. crystalline plastics as raw materials to any shape of carbonated drinks bottles, mineral water bottles, pesticide bottles, cosmetic bottles, high temperature resistant bottles .
Machines Features:
1. Adopt advanced PLC Touchscreen, easy to operate,stability,safe
2. Blowing system uses German blowing valve,cylinder, strength speed stability and exactly
3. Use Robot to feed perform to save cost
4. Entire production process by the microcomputer control, done automatically,each process are interlocked devices as a security guarantee.
5. Air system will be designed to move and inflatable divided into two parts to
meet Blow, movements of different air pressure requirements.
6. Fully automated production process completed with low investment,high
efficiency,easy to operate,simple maintenance,security and other advantages.
....
| GENERAL INFORMATION | Unit | YS1500FA-4 | YS2000FA-4 | |
| container volume | L | 1.5 | 2 | |
| Productspecification | cavity number | 4 | 4 | |
| max container Dia | mm | 93 | 103 | |
| ntainer height | mm | 340 | 340 | |
| maximun thread size | mm | 45 | 45 | |
| Machine specification | theoretical yield | bph | 3600 | 3600 |
| the opening stroke | mm | 125 | 125 | |
| mold thickness | mm | 200 | 200 | |
| total power | kw | 65 | 65 | |
| the actual use of power | kw | 30 | 30 | |
| appearance size | m | 4.1*2*2 | 4.3*2*2 | |
| weighre | Kg | 5000 | 5000 | |
| Air System | working pressure | bar | 10 | 10 |
| low air consumption | m3/min | 2.4 | 2.4 | |
| blowing pressure | bar | 30 | 30 | |
| high pressure gas consumption | m3/min | 3 | 3 | |
| Chiller Water | operature pressure | bar | 5 | 5 |
| temperature range | °C | 5-10°C | 5-13°C | |
| water consumption | L/min | 45 | 45 | |
| Machine size | appearance size | M | 2.2*1.3*2.2 | 2.2*1.3*2.2 |
| weight | kg | 250 | 250 | |
