1.Wood shavings preparation section

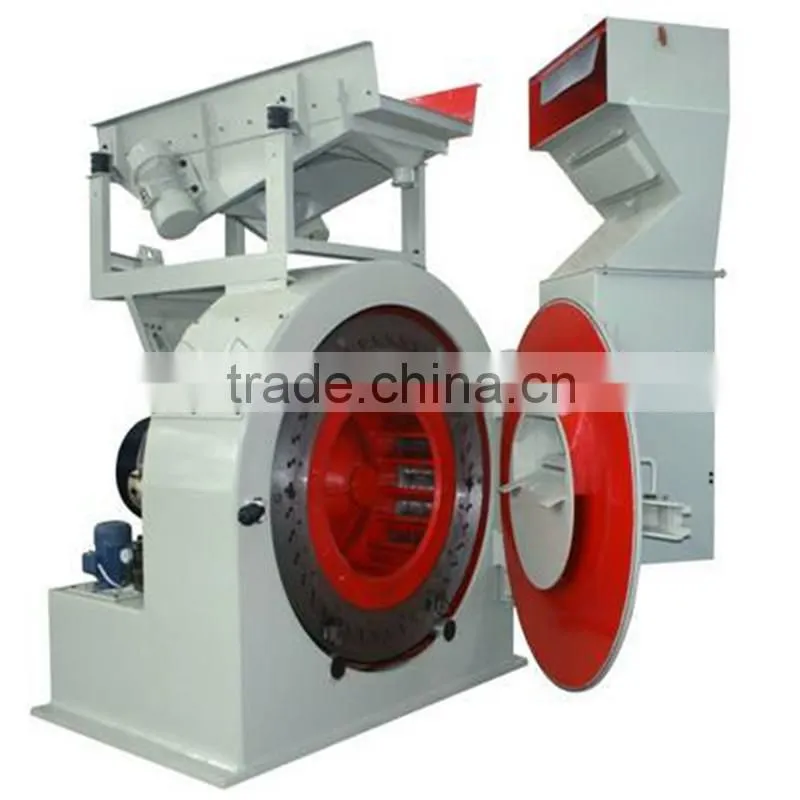

Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knifering flaker by which the chips are turned to flakes, then the flake stored in wet flake bin.
2. Drying and sifting section

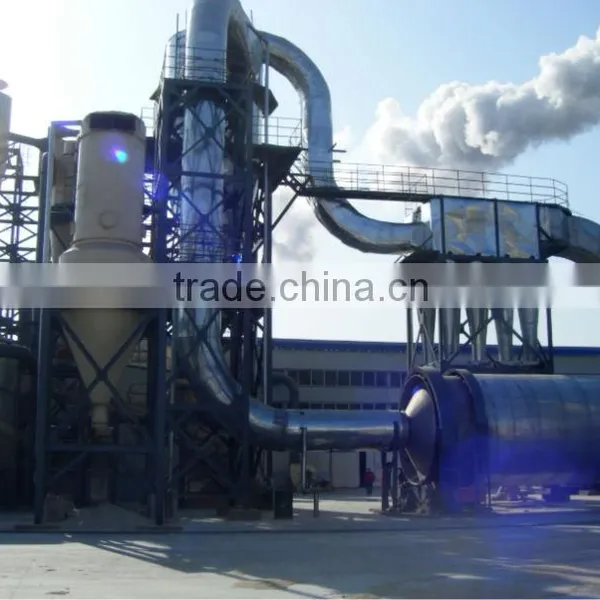

The flakes are discharged from the wet flake bin which are conveyed to the rotary dryer.
Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface dry wood shavings bin to be stored.
3.Glue stage
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue to achieve the uniform mixing and the sufficient sizing effect.
4.Paving and thermoforming section
The after sizing shavings are transported to the mechanical grading paving machines bythe belt conveyor.and they are paved to the uniform flat slab. After a series of processes. such as pre-press, lengthwise saw, cross saw, accelerate conveyor, storing conveyor and loading conveyor,the rough boards are sent to the installed hoistingcages,then the rough boards are pressed by the hot press machine.
5. Post--processing section
The thermofoming boards are conveyed to the panel turnover machien to become cool,then the boads are transported to the vertical and horizontal edge cutting machine by the cooling conveyor.
6.Sanding section
The boards are sanded, checked and stored .
PLC control is used in mat-forming section.
