Particle board production line/Particle board plant/Chipboard production line/Chipboard plant/Bagasse based particle board manufacturing line
1. The following is our company information:
Located at Lanshan district, Linyi City of Shandong province, established in 1992, Linyi Youming Wood Based Panel Machinery Co., Ltd (Old name Lnyi Xiangying Machinery Manufacturing Co., Ltd) is an aggressive enterprise which integrates woodworking research, design ,manufacturing, marketing and service into one whole.
Our main products are Particle board production line, Plywood production line, MDF production line, Short cycle lamination press, Door skin press, etc. based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20 countries such as, India, Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Ethiopia, Kazakhstan, Turkey and so on. And they are all well praised by our clients.
Especial for some import machines of particle board production line, such as, Three passage hot-air dryer, Screen, Diamond roller forming, Pre press, Cross cut saw, Hot press, etc, they have reach to the domestic advanced level, even same to China Foma, SWPM.
In China, only we can supply the customer the most cosat effective particle board production line, and also supply best service.
Welcome customers to visit to our factory for more cooperation.
2. The following is produce craft flow:
Partcle board is made from small-diameter wood, wood branches, wood residues, saw dust, furnitue leftovers, phragmites and bagasse, etc, and via Chip preparation, Drying & screening, Glue applying, Forming and hot press, Cutting size, and Sanding, etc. Finished boards can be used for furniture, building, packing, vehicle and sheep decoration and lamination.
1). Chip preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip silo, and then infeed to the knife-ring flaker by which the chips are turned to flakes, then the flake stored in wet flake silo.
2). Drying and sifting section
The flakes discharged from the wet flake silo are conveyed to the Three passage hot-air dryer. Qualified core flakes are stored in core flake silo; oversize flakes are send to double-stream mill to be re-crushing, and transported to surface flake silo.
3). Glue regulating and applying section
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently in their glue blenders respectively.
4). Forming and hot-pressing section
The surface and core flakes are sent into Diamond-roller classic forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, Multi-roller pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.
5).Cooling and sizing section
The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.
6). Sanding Section
The board are sanded, checked and stored. And need 2sets sanding machine, one is 2-head sanding machine; another one is 4-head sanding machine. And sanding machine brand is Sufoma, which is best quality in China.
3. The following is brand of import parts:
1). PLC control is used in whole line. PLC brand is Ormon or Mitsubishi (Original Janpan)
2). All bearings are SKF brand (Original Sweden)
3). All hydraulic valves are Rexroth brand (Original Germany)
4). All frequency changers are ABB brand (Original Sweden)
5). All motors are Huali brand, which is best quality in China.
6). All hardwares are reaching to ISO international standard, such as, nut, bolt, chain, sprocket, pulley, etc.

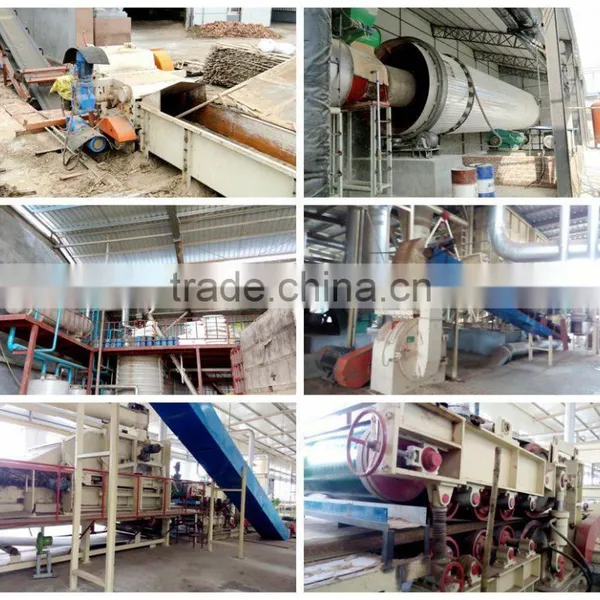

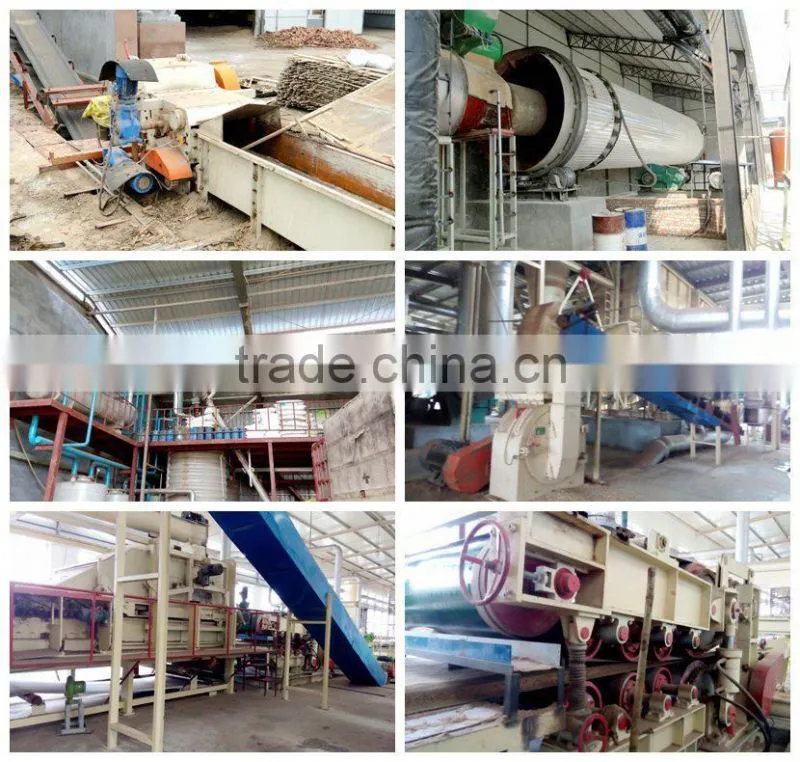

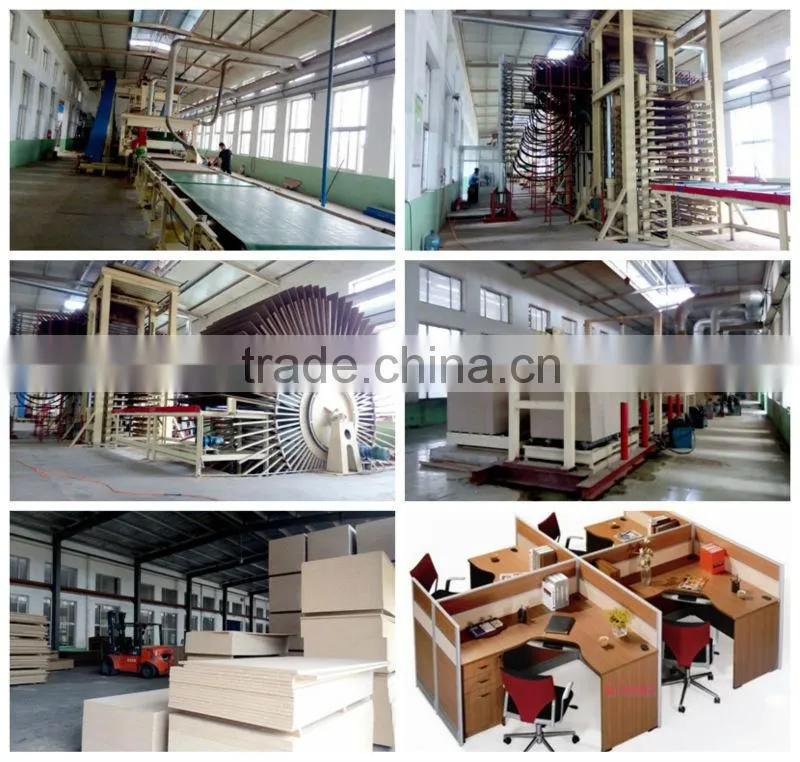

4. The following is some photos of main machinery of particle board production line:
