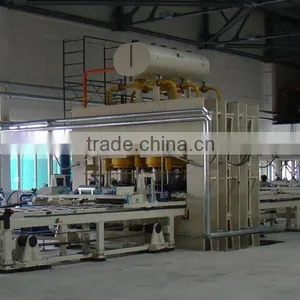

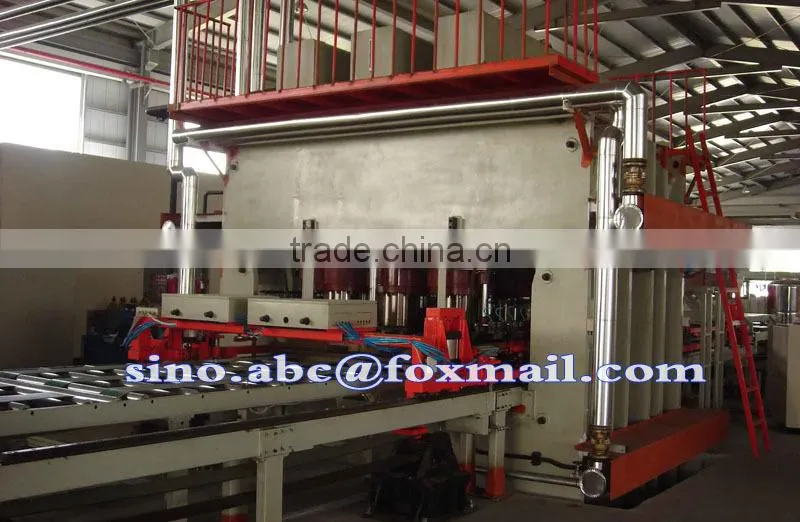

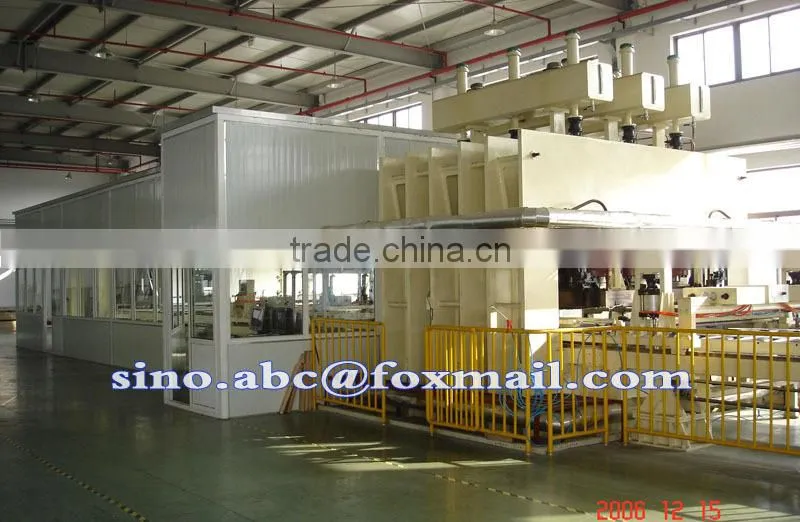

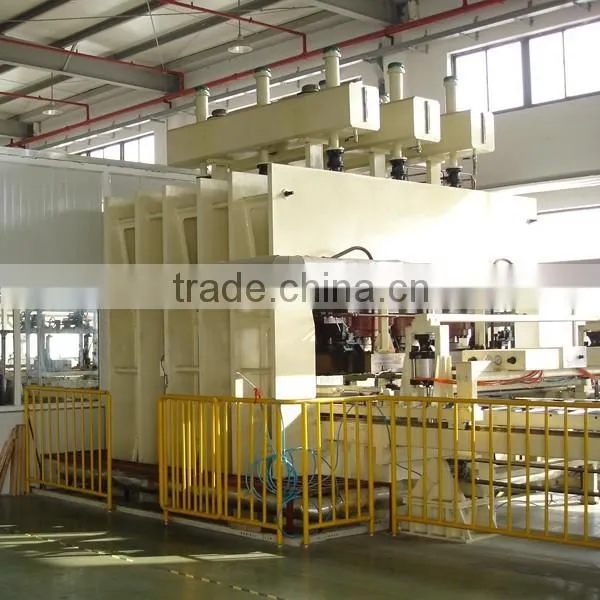

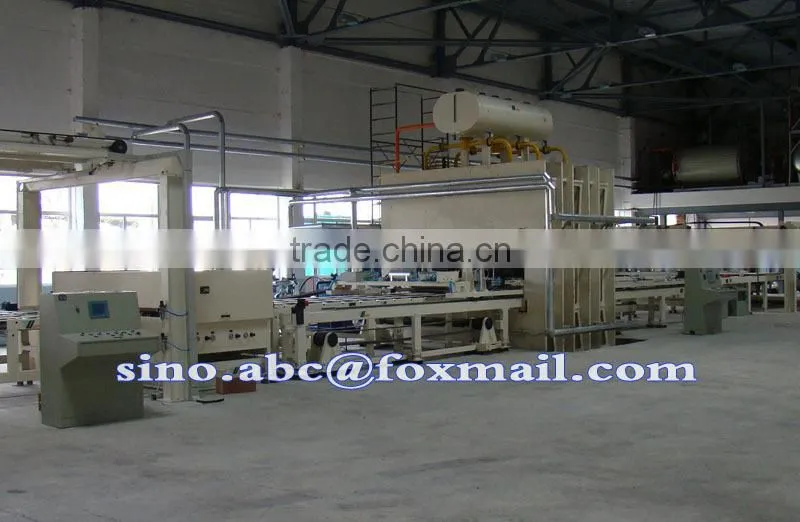

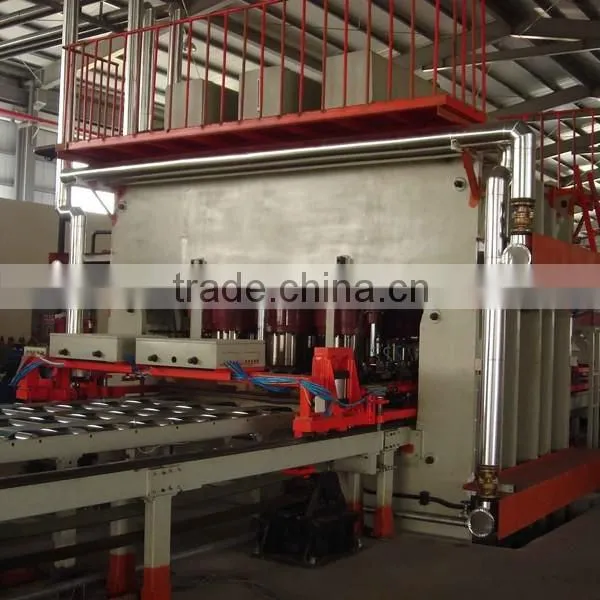

Short cycle melamine lamination hot press
We could produce all kinds of hot pressing machine, widely used in wood processing, building materials and decoration...etc. The short-cycle melamine lamination hot press is suitable for the melamined processing of particle board, MDF, melamine impregnated paper and high density laminated flooring ACP wear-resisting paper.Variety specification includes 4*8, 4*9, 5*8, 5*9, 6*8, 6*9, 7*9, 6*12...etc.
Main technical data of short cycle laminating hot press
1) Parameter of block board
--Width |
1830 mm |
--Length |
3600 mm |
--Thickness |
8~ 40 mm |
2) Rate of production
--About |
1200 sheets/day |
--Remark |
Rate of production depends on board, resin, paper, temperature, pressure etc |
3) Electric power
--Power supply |
380V / 50Hz, Three phases, AC |
--Total power |
24kw |
4) Heating (prepared by the buyer)
--Medium |
Thermal oil |
--Capacity of boiler |
30×104 Kcal/h |
5) Net weight: Approx 90 ton
Equipments of short cycle hot press and details
--Total pressure |
24000 KN |
--Board size |
1830 x 3600mm |
--Feeding direction |
Longitudinal |
--Heating platen size |
2000x 3900 x 160/120mm |
--Daylight opening |
300mm |
--Main oil cylinder |
Φ 400 mm x 8 pieces |
--Oil cylinder working stroke |
300 mm |
--Closing time with loading |
≤ 2s |
--Thickness of frame steel platen |
50 mm |
--Structure |
Frame structure, Welded |
--Main motor power |
45 kw |
--Weight | 90 ton |

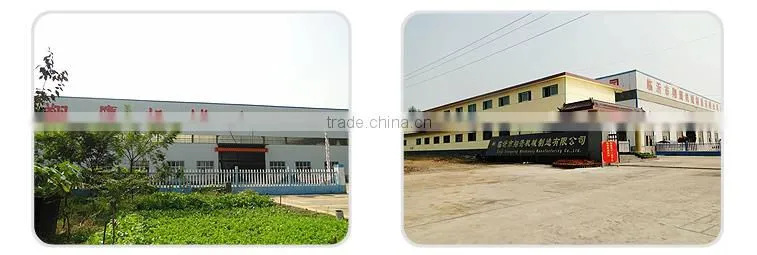

Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, Linyi Youming Wood Based Panel Machinery Co., Ltd (Linyi Xiangying Machinery Manufacturing Co., Ltd ) is an aggressive enterprise which integrates woodworking researching, designing, manufacturing, marketing and service into one whole.
Since it was established in 1992, Youming machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line, Plywood production line, MDF production line, Melamine veneer press, Mould door equipment etc. based on our good quality as well as perfect service , our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.
Choose Youming machinery, Create measureless value.
1. All kinds of mold can be made by customer's drawings
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
7. Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it .
