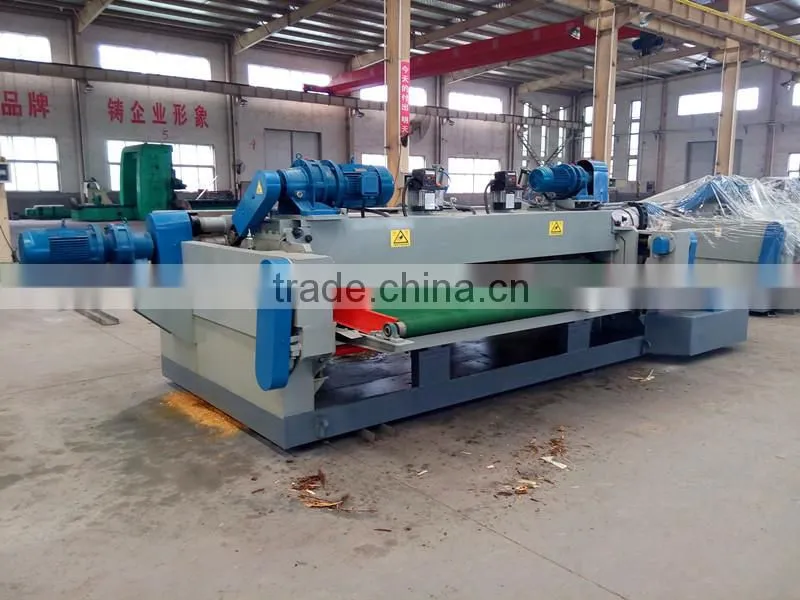

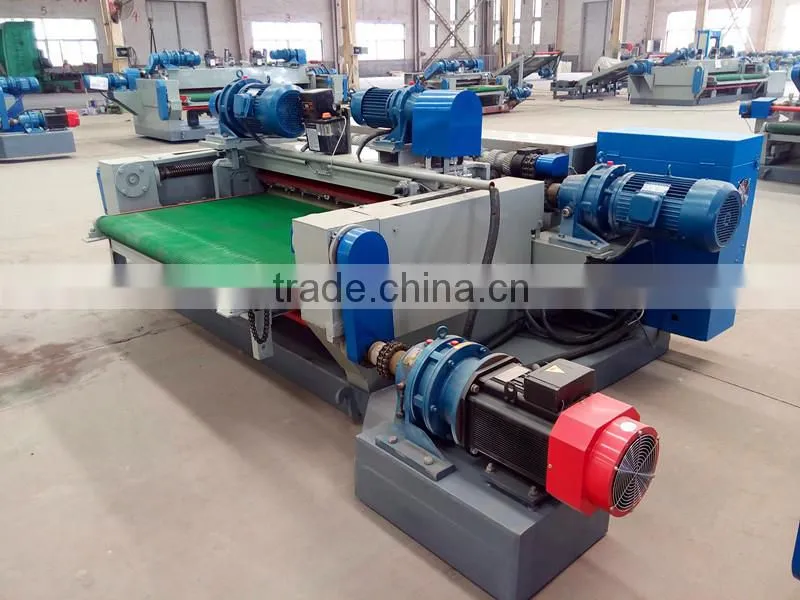

Veneer Rotary Cutting Machine
1.Introduction of Rotary plywood veneer cutting machine:
CNC Veneer Rotary Cutting Machine/peeling machine , also called Rotary Veneer Shearing Machine, is a important equipment for plywood and veneer production plant, functions to cut the rotaryed veneer into set size, normally works after high speed Single-Chuck Veneer Rotary Lathe and Spindle less Veneer Peeling Machine.
2. Features:
1. Rotary Veneer Clipper, has a heavy duty machine body to guarantee the steady working performance;
2. Rotary Veneer Clipper use computer controlling system and servo motor lead to more accuracy cutting and high speed working performance; Greatly improve the veneer quality and working effiency;
3. Rotary Veneer Clipper, has selectable Chinese brand and Mitrubishi Brand for controlling systerm
4.the thickness of the veneer from 0.25~5 mm.
3.The main parameters
Models |
1200 |
1400 |
2100 |
2700 |
Maximum peeling diameter |
970mm |
1270mm |
1970mm |
2540mm |
Maximum cutting diameter |
400mm |
400mm |
400mm |
400mm |
Maximumcutting thickness |
4.0 mm |
4.0mm |
2.6mm |
2.6mm |
Min cutting thickness |
1.0mm |
1.0mm |
0.3mm |
0.3mm |
|
Core diameter of remaining |
|
|
|
|
|
Total power |
36m-19.5kw |
36m-19.5kw |
36m-21.5kw |
36m-21.5kw |
45mm-19.5kw |
45mm-19.5kw |
45mm-21.5kw |
45mm-21.5kw |
|
50mm-23.5kw |
50mm-23.5kw |
50mm-25.5kw |
50mm-25.5kw |
|
|
Line speed |
Low36 m/minutes |
Low36 m/minutes |
Low36 m/minutes |
Low36 m/minutes |
|
Medium 45 m/minutes |
Medium 45 m/minute |
Medium 45 m/minute |
Medium 45 m/minute |
|
|
Hight-speed 50 m/minutes |
Hight-speed 50 m/minutes |
Hight-speed 50 m/minutes |
Hight-speed 50 m/minutes |
|
Roller diameter |
120 cross roller |
120 cross roller |
120 cross roller |
120 cross roller |
Size of machine equipment |
3960*1460*1280 mm |
4160*1460*1280 mm |
4860*1510*1280 mm |
5460*1510*1280 mm |

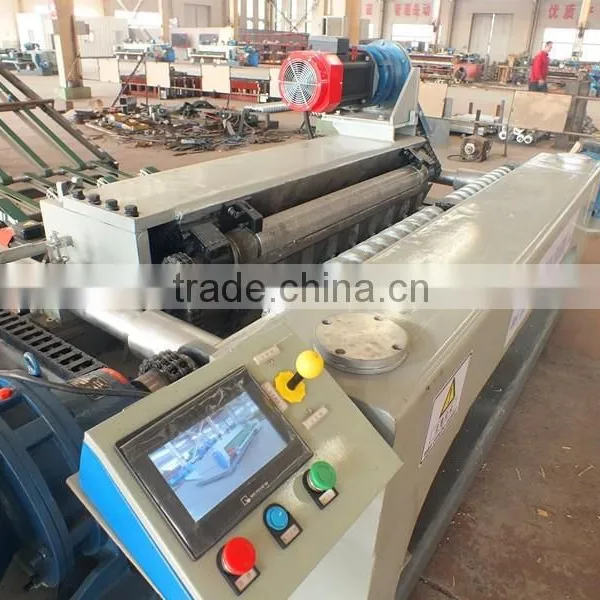

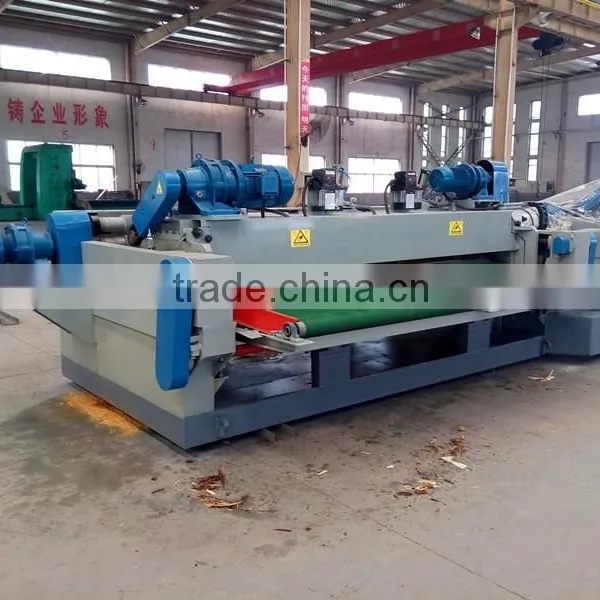

Veneer Rotary Cutting Machine
We will provide:
1.Seller will send 1-2 technicians to guide the equipment installation and trial run.
2The installation duration is about 25-30 days.
3.The construction of machine’s foundation support steel blocks.
4. The boiler and pipes & valves connected to the inlets/outlets of machine.
5.Hydraulic oil, thermal oil and fuel for boiler.
6.The necessary device, facilities and skilled worker for the installation and trial run.
7. Electric power, connected to main electric cabinet;
8 The necessary material such as impregnated paper, raw board etc.
9.The other relevant tools for the installation and trial run.
Located at Lanshan district, Linyi City of Shandong province, ”the Biggest wood based panel base of Asia”, LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates wood based panel machinery researching, designing ,manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
