HUAWEI TE30-720

Name: HUAWEI TE30-720
Brand: HUAWEI
Price: USD $2,950 - 3,250 / Unit

FOB Price

USD $2,950 - $3,250 / Unit

1 Unit(Min.Order)

Supply Ability 0 per Month
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Audio Conference System, Network Conference System, Video Conference System	Simultaneous Interpretation:	No	Brand Name:	HUAWEI
Model Number:	VC8MTE301102

Product Description

TE30

Video resolution:720p 30fps,1080P 30fps(Optional)
Dual stream: Dual 720p 30 fps,1080P (Optional)
Video interface:2 in 2 out(including 1 in from built-in camera)
Audio interface:2 in 2 out

Vendor

Product

Description

Huawei Advantages

HUAWEI	TE30	720P/1080P All-in-one Video conferencing endpoint-Enter the configuration interface to configure quantities of each item.
CISCO	SX10	All in one HD Endpoint: 1080P30+WXGAp5(content), Triple-View, 2 HD video in and 1 HD video out, 3 audio in and 2 audio out, 2.65X optical zoom	12X optical zoom; 1080P content sharing; H.323, H.264 HP, H.264 SVC; 2 HD output; Wifi connection; Voice dialing; Embbeded MCU;
CISCO	SX20	HD Endpoint: 1080p60+WUXGA(content), Triple-View, 2 HD video in and 2 HD video out, 4 audio in and 2 audio out, 12X optical zoom	All in one; Wifi connection; Voice dialing;
POLYCOM	GROUP 300	HD Endpoint: 720P dual stream, 1 HD video in and 2 HD video out, 12X optical zoom	All in one; 1080P dual stream; Wifi connection; Voice dialing;

Elegant all-in-one design, easy to deploy and install

TE30 is a compact system with built-in HD codec, camera, and microphone array.

It takes just 1 cable and 5 minutes from unpacking to joining a video conference.

Smart design enables TE30 to be wall-mounted, placed on a TV set, or ceiling-mounted with inverted installation.

Voice Dialing

TE30 recognizes multiple languages. You can call or join a conference by saying the name of the scheduled conference or the site name.

Wi-Fi Access

Built-in Wi-Fi enables TE30 to support wireless network, wireless microphone, air content sharing

User-Friendly Interface and Remote-Control Design

Innovative 3D GUI, convenient to use and maintain.

Wizard for first-time installation.

LCD display for real-time local site information.

Wireless touch panel (Optional) for visualized control.

Next-Generation Technology for Superior HD Experience at Lower Bandwidth

Supports Video Motion Enhancement (VME) and H.264 HP; saves 50% of bandwidth.

Proprietary VME combined with intelligent face recognition and video image processing helps TE30 adapt to different lighting conditions, reduce bandwidth consumption, and enhance video quality.

Built-in microphone with sound pickup radius up to 6 m.

Outstanding Network Adaptability and Security Mechanism

Patented Super Error Concealment (SEC) ensures high-quality video experience even with packet loss of 20 percent.

Supports H.264 SVC to adapt to different bandwidths, device capabilities, and network requirements.

Standard H.460 and proprietary SNP technology guarantee secure firewall traversal.

H.235 media stream and signaling encryption; SRTP, TLS, and HTTPS encryption.

Extensive System Integration

Inter-operable with standard endpoints and infrastructures.

Integration with Microsoft Lync2010™ and OCS2007R2

Seamless integration with IMS.

Plentiful third-party APIs for system integration and customization.

Model	HUAWEI TE30

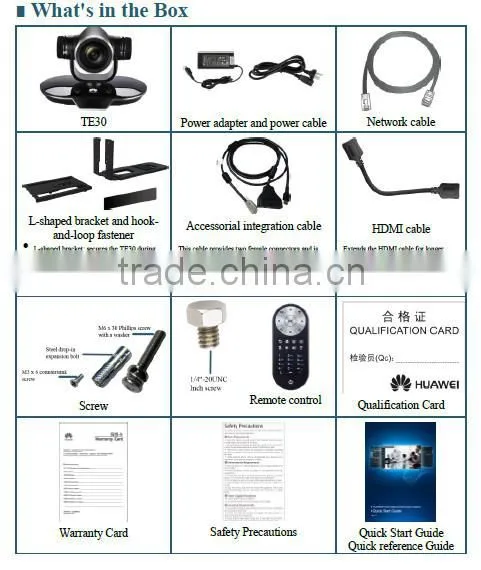

Packet includes
HD Codec, built-in camera and Omni-array Microphone, cables and remote control Optional: HUAWEI VPM220 or HUAWEI VPM220W, Wireless touch panel
Standard & Protocols
Standards and Protocols	ITU-T H.323, IETF SIP
Video Standards & Protocols	H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC
Audio Standards & Protocols	G.711, G.722, G.728, G.722.1, G.722.1C, AAC-LD, HWA-LD, G.719, G.729A
Dual Stream	ITU-T H.239, BFCP
Other Standards	H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140
Network Standards & Protocols	TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS, PPPoE, RTP, RTCP, SNTP, 802.1X, 802.1P, 802.1Q
Video Specifications and Features
People Video Resolution	1080p @ 30fps from 512 kbps (Optional) 720p @ 50/60fps from 512 kbps (Optional) 720p @ 25/30fps from 384 kbps 4SIF/4CIF from 128 kbps SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 kbps
Content Video Resolution	Input: VGA (640×480) @ 60/72/75/85 fps, SVGA (800×600) 56/60/72/75/85 @ fps, XGA (1024×768) @ 60/70/75/85 fps, 1152×864 @ 60/75/85 fps, 1280×600 @ 60 fps, WXGA (1280×768) @ 60/75/85 fps, WXGA (1280×800) @ 60/75/85 fps, 1280×960 @ 60/75/85 fps, SXGA (1280×1024) @ 50/60/72/75/85 fps, 1360×768 @ 60 fps, 1366×768 @ 60 fps, 1440×900 @ 60 fps, XGA+ (1400×1050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1600×900 @ 60 fps, 1600×1200 @ 60 fps, 1680×1050 @ 60 fps, 1920 ×1200 @ 60 fps Coding/Decoding resolution: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080 Output: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Dual Stream	Dual 1080p (Optional); Dual 720p @ 30 fps
1080p HD Camera	Built-in camera Video output pixels: 1080p @ 50/60 fps Lens: 2-megapixel and 1/3-inch CMOS imaging chip Zoom: 12x optical Maximum horizontal angle: 72°horizontal field of view Panning/Tilting angle: +/-30° tilt, +/- 100° pan Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF) Far-end camera control Upside-down mounting with automatic flipping of picture
Other Video Features	Intelligent Face Detection Picture in Picture,Picture outside Picture VME (Video Motion Enhancement) Video Intensifier View Processing
Audio Specifications and Features
Audio features	Dual-channel AAC-LD Stereo HWA-LD Stereo : Huawei Audio Broadband Low Delay Stereo Acoustic Echo Cancellation (AEC) Acoustic Noise Suppression (ANS) 12 dB Automatic Gain Control (AGC) ±6 dB Voice Clear, Audio Enhancer Lip synchronization
Security and Stability
Network	Dual-stack IPv6 and IPv4 IP Precedence, Diffserv Uniform resource identifier (URI) dialing Super Error Concealment (SEC), Intelligent Rate Control (IRC) Automatic Repeat-reQuest (ARQ), Forward Erro
Security	H.235 signaling and media stream encryption AES media stream encryption, dual-stream encryption TLS and SRTP for SIP signaling and media stream encryption Conference access password, conference control password Administrator password, SSH/HTTPS
Firewall Traversal	H.460.18, H.460.19 firewall traversal, Static NAT, SNP
Bandwidth
IP	64 kbps/s to 4 Mbps/s
Interfaces
Audio Inputs	1×3.5 mm line-in jack, 1×HD-AI (stereo, connects to microphone array )
Audio Outputs	1×3.5 mm line-out jack, 1×HDMI
Video Inputs	1 ×VGA, 1×Built-in Camera
Video Outputs	1×VGA/YPbPr, 1×HDMI
USB Interfaces	1×USB 2.0 Host
Network Interfaces	IP: 10/100 Base-T, 1×RJ45 Wireless: Built-in Wi-Fi
Application Features
Languages	Simplified Chinese, Traditional Chinese, English, Japanese, Russian , French , Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, Indonesian
Embedded MCU(Optional)	Non-encrypted conference: 4-way HD (Asymmetric 720P)/SD video sites+ 3-way VOIP Encrypted conference: 4-way HD (Asymmetric 720P)/SD video sites Max bandwidth: 6M Auto CP on each port, voice activation, chairman token, broadcast site, H.239 and BFCP; HD/SD endpoints compliant with H.323/ SIP in the same conference, tolerant of different bandwidth consumption and audio/video protocols
Special Features	Voice Dialing in English and Chinese Installation from a USB disk, Plug and play Integration with Microsoft Lync2010™ and OCS2007R2 Hybrid with IMS network Wi-Fi Air content sharing Wireless MIC VPM220W access Upside-down mounting HD SiteCall Lock content sharing Web-based conference management Web-based image monitoring and cture snapshot 16:9 and 4:3 mixed display PIP: 1/16 picture size, optional position Split output: Bi-screen and tri-screen display LDAP/Network address book API for integration
Digital Caption	Caption banner, body text and information bar Rolling display mode of the speech draft Modifiable front background color, caption size and transparency 64 optional colors Editable caption and auto zone adjustment Caption rolling mode setting Site name display and position shift Text input through remote control External character generator Powerful caption SMS function
Optional
Accessories	VPM220 Microphone array or VPM220Wwireless Microphone, Wireless touch panel
Function Models	1080p @ 30 fps , Embedded MCU
Maintenance Management
Maintain Methods	Remote control: 3D Effects & GUI Animation Endpoints Network Management: SNMP Wireless touch panel (Optional) Embedded Web server, GUI interface Command line mode: Telnet/SSH
Maintain Functions	Endpoint IP and number are displayed on the front panel Auto sleep, wake-up by remote control or remote module Event log record, query, display and export query results IP network test, default settings restoration Local and remote loopback Test signals: providing sound test and standard test stripes
Physical Characteristics
Dimensions	Codec dimensions (L×W×H): 235 mm×167 mm×157 mm Package dimensions (L×W×H): 402 mm×232 mm×237 mm Net weight: 2.1 kg Package Weight: 3.3 kg
Electrical	Working voltage: 100–240 V AC, 12 V DC Working frequency: 50–60 Hz Power consumption: 60 W
Environmental Specification	Operating Temperature: 0° C to 40º C Operating Humidity: 10% to 80% Non-Operating Temperature: -40º to -70º C Non-Operating Humidity (Non-condensing): 0% to 95% Peripheral noise: < 46 dBA SPL Lowest luminance: 7 lux Recommended luminance: > 300 lux
Approval and Compliance	CE, RoHS, WEEE, REACH, UL, FCC, CCC

*: G.722.1/G.722.1C, licensed from Polycom®.
