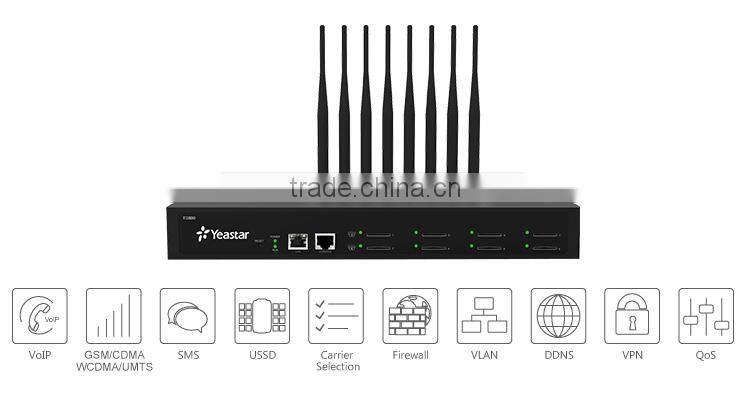

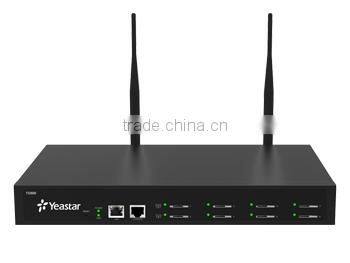

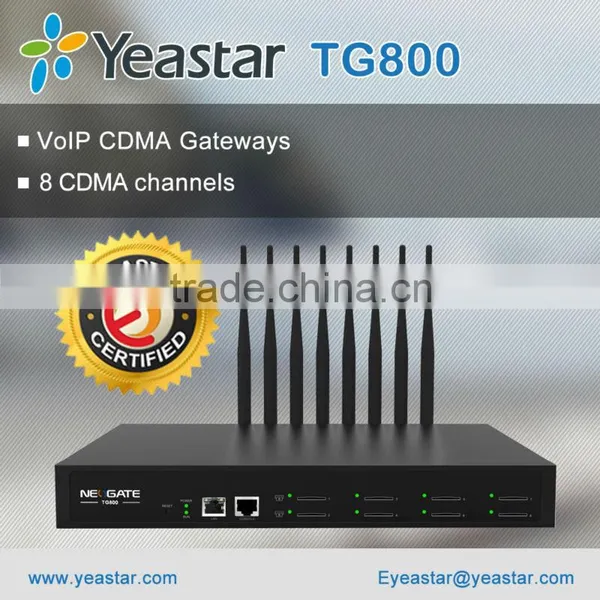

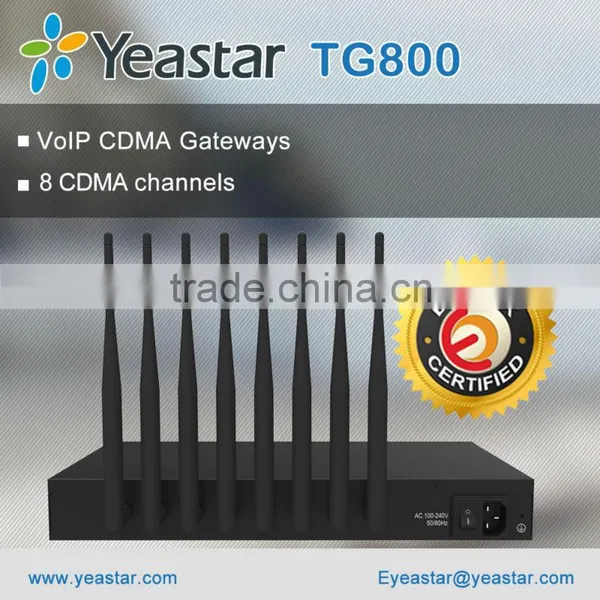

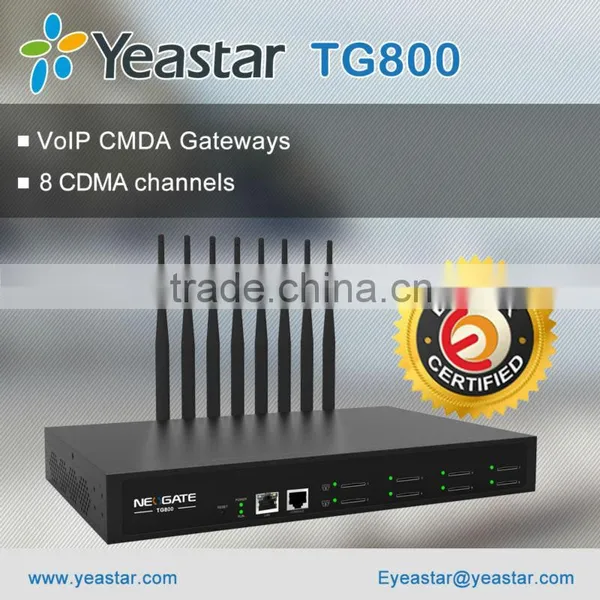

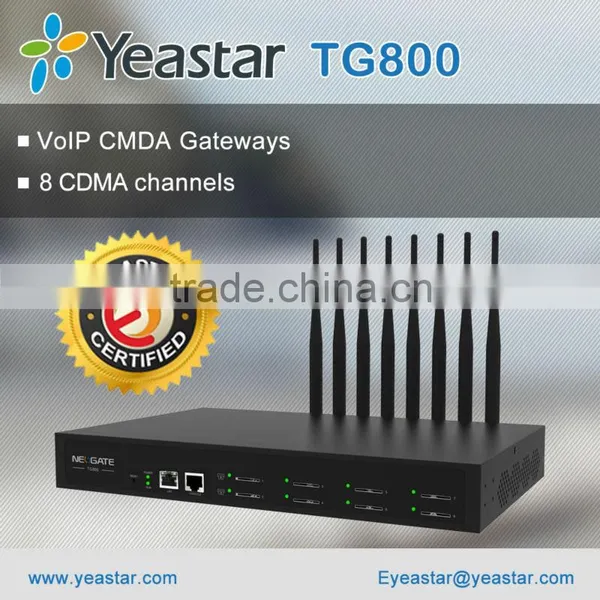

NeoGate TG800 is a powerful VoIP CDMA gateway with 8 channels, bridging between CDMA network and IP-based systems.
| Cost-effective Alternative
· Rich functionalities A robust feature set that fulfills your various needs and cuts communication cost
· Easy management
· Reliable performance
· Excellent interoperability |
1.NeoGate TG Bulk SMS Service
· Send bulk SMS in the Web GUI: easy to create and execute
· Send bulk SMS for SMS marketing campaign
· Send bulk SMS for alerts and notifications
· Open API for SMS and USSD
2. MySMS Web SMS Center
· Send SMS from any PC with Internet connectivity with the Neogate TG free platform
· Send Bulk SMS with personalized information and engage interactively
· Schedule SMS to go out at a specific time and date to avoid overloading the system
· Save your SMS contacts and setup groups to manage your contacts base
· Track delivery satus of each individual message and resend teh undelivered messages
· Endless applications scenarios like notifications, reminders, marketing campaigns, and more

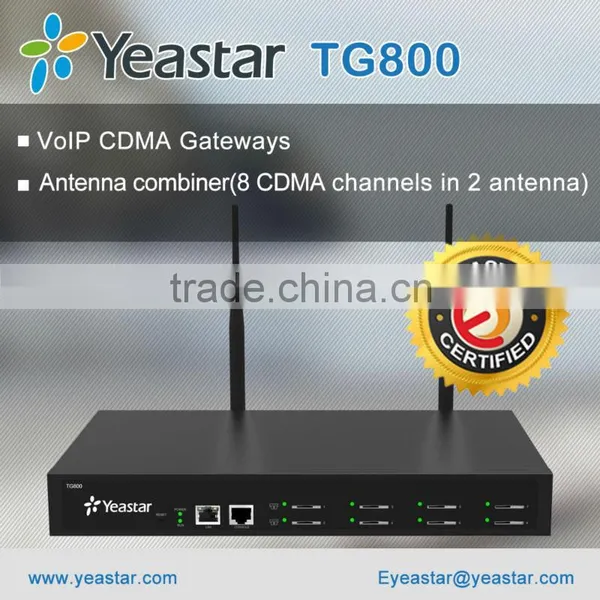

3. Antenna Combiner----Neogate TG800M
· 8 CDMA Channels in 2 antennas
4. Specification
· Interfaces & Voice Processing
| Mobile | 8 CDMA Channel |
| LAN | 1(10/100Mbps) |
| Protocol | SIP (RFC3261), IAX2 |
| Support | SIP Trunk, SIP Peer Mode, SIP Server for IP Phones include, SIP Response Code Switch, Session Timer Call Progress Tone Generation, 1 stage/2 stage Dial |
| Transport | UDP, TCP, TLS, SRTP |
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex |
| Echo Cancellation | ITU-T G.168 LEC |
| DTMF Mode | RFC2833, SIP INFO, In-band |
· Features
| Call Type | Termination (VoIP to CDMA), Origination (CDMA to VoIP) |
| CDMA Frequency | 800MHz |
| System Features | CDMA Ports Group Manage, VoIP Trunk Group, Incoming /Outgoing Routing rules, White List and Black List, Hotline,Call Duration Limitation ,Call Transfer, Call Waiting, Call Back, Call Detail Record (CDR), Call Status Display, NTP, IP Blacklist , Network Attack Alert , Packet Capture, System Logs, Real Open API Protocol (Based on Asterisk) |
| Mobile Features | SMS Sending and Receiving, Send Bulk SMS, SMS Center, Gain Adjustment, USSD, PIN Modify, Carrier Selection: Auto/Manual , Balance Alarm, Caller ID/CLIR ,Open API for SMS and USSD |
· Network & Management
| Network Protocol | UDP, TCP, TFTP, HTTP, SSH |
| NAT Traversal | Static NAT, STUN |
| Static Route, OpenVPN , Firewall, VLAN, QoS/ToS, DDNS, Configure backup/restore, Firmware upgrade by HTTP/TFTP, Web based configuration |
· Environment
| Power Supply | 100-240V 50/60 Hz 1.5A MAX |
Dimensions (L x M x H) (mm) | 340x210x44 |
| Environment | Operation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; Humidity: 10-90% non-condensing |
· Multi-language Web GUI and voice prompts
Applications

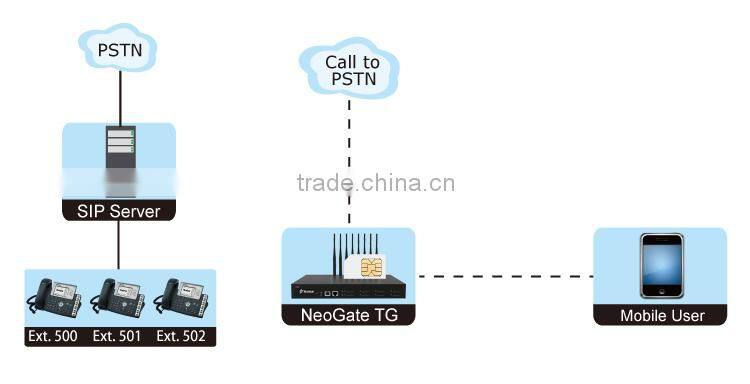

· NeoGate TG Provides Mobile Trunkings

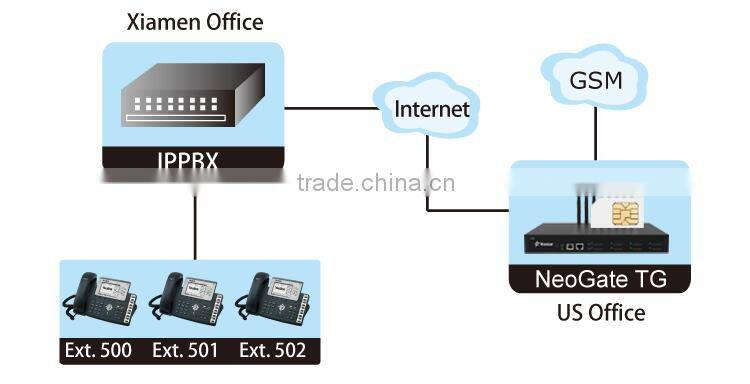

· NeoGate TG Branch Offices Solution
· NeoGate TG Cost Saving Solution

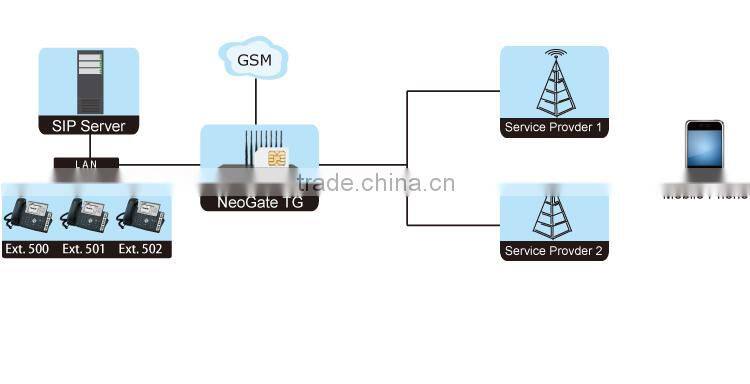

· NeoGate TG Provides Backup GSM Trunks
1. Perfect interoperability with major IP PBX brands
2. Compatible ITSP
1. Shipping
· within 2-3days after the payment
· support any delivery methods as you require, such as:
2. Superior customer Service:
· 3 year Warranty
· Free firmware upgrade for life
· 24 hours Technical support through phone calls, emails, skype, and remote assistance
· Various training, including sales and technical training like online Webinar
· Customizable products with OEM/ODM service

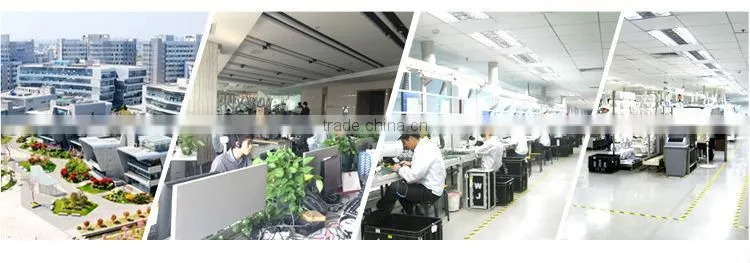

Company & Factory
· Yeastar specializes in the developing and manufacturing of IP-PBX and VoIP gateways, and is committed to the distribution of new generation technology products in the field of enterprise communications.
· Our factory applies SMT craft with strict quality control is consistent with ISO 9001 Quality Accreditation.
Yeastar attendends professional exhibitions together with our distributors:
CeBIT, ITEXPO EAST, GITEX, Convergence India, Elastix World, BroadSoft Connections, Hong Kong Electronics Fair...ect.
