NeoGate TA810 allows to connect 8 PSTN lines or PBX extension ports for a wide range of IP applications. The high quality and reliable TA810 is ideal for call centers, multi-location companies, and carrier services.
1. High Performance
NeoGate TA810 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.
· 8 FXO ports
· Fully compliant with SIP and IAX2
· Flexible calling rules
· Superb voice compression with industry standard codecs
· Line echo cancellation for 32, 64 or 128 ms echo delays
· Tested and certified with Elastix, BroadSoft, and others
2. Specification
· Interfaces
| Ports | 8 FXO Ports |
| Telephony Interfaces | RJ11 |
| Network Interfaces | 1 LAN (10/100Mbps) |
| Indicators | Ports Staus and Activity LEDs |
· Media Processing
| Protocol | SIP (RFC3261), IAX2 |
| Transport | UDP,TCP,TLS,SRTP |
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer |
| DTMF Mode | RFC2833, SIP Info, In-band |
| Fax | T.30 |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging |
· Telephony Features
| Call Handling | Call Back, Hotline, Two-stage dialing, CDR, Caller ID Display |
· Security / IP Services
| Firewall | Built-in Firewall, IP Blacklist, Attack Alert |
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN |
| Nat Traversal | Static NAT, STUN |
| Network Protocol | UDP, TCP, FTP, TFTP, HTTP, HTTPS, SSH |
· Management
| Protocol | RADIUS, TR-069* |
| Provisioning | Web GUI, Auto Provisioning with MyPBX, Backup and Restore, Firmware Upgrade by HTTP/TFTP |
| Configuration | Remote Management, Packet Capture, System Logs, Voice Menu for FXO Gateways Basic Configuration, API |
*Feature in the next release
· Connectivity
| Signaling | FXS Loop Start, FXS Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal |
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID detection |
· Physical
| Power | 12V, 1A |
|
Dimensions (L x M x H) (mm) |
200x137x25.6 |
| Environment | Operation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; Humidity: 10-90% non-condensing |
| Mounting | Desktop, Wall-mount |
· Multi-language Web GUI and voice prompts
Applications

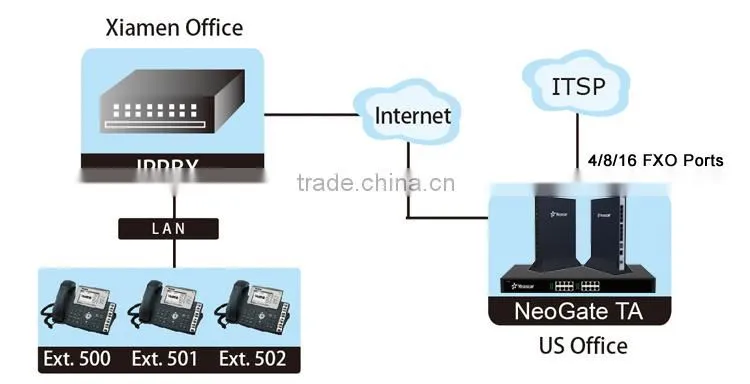

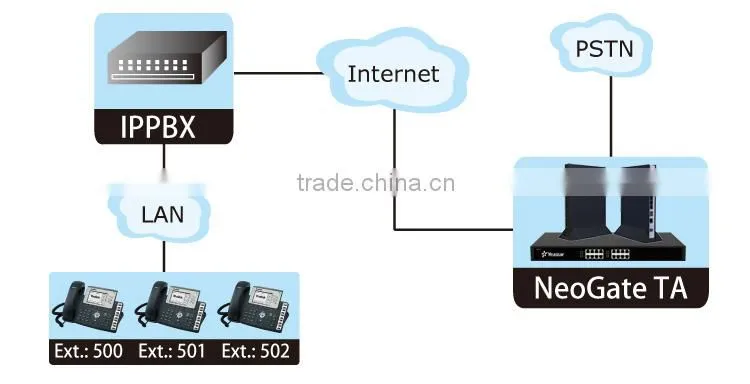

· PSTN Trunking for IP-PBX
· Multi-site Solution
1. Perfect interoperability with major IP PBX brands
2. Compatible ITSP
1. Shipping
· within 2-3days after the payment
· support any delivery methods as you require, such as:
2. Superior customer Service:
· 3 year Warranty
· Free firmware upgrade for life
· 24 hours Technical support through phone calls, emails, skype, and remote assistance
· Various training, including sales and technical training like online Webinar
· Customizable products with OEM/ODM service
Company & Factory
· Yeastar specializes in the developing and manufacturing of IP-PBX and VoIP gateways, and is committed to the distribution of new generation technology products in the field of enterprise communications.
· Our factory applies SMT craft with strict quality control is consistent with ISO 9001 Quality Accreditation.
Yeastar attendends professional exhibitions together with our distributors:
CeBIT, ITEXPO EAST, GITEX, Convergence India, Elastix World, BroadSoft Connections, Hong Kong Electronics Fair...ect.
