Product Details
Place of Origin: | Henan, China | Brand Name: | BEI HOU | Model Number: | CCA |
Type: | Bare | Application: | Other, conductor | Conductor Material: | Copper Clad Aluminum |
Conductor Type: | Solid | Insulation Material: | Other, none |
Product Description

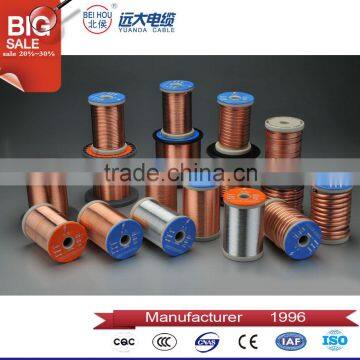

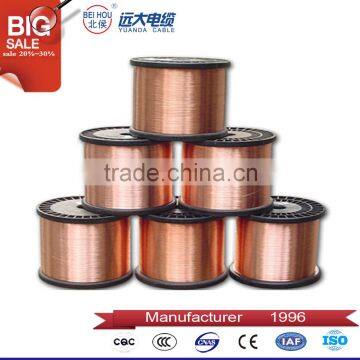

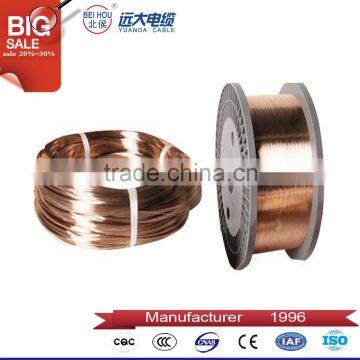

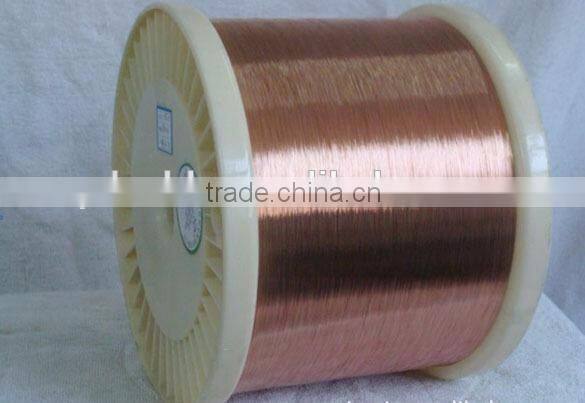

Best quality 0.20mm copper clad aluminum CCA from cable wire factory
1. With composite characteristics: the bimetallic wire combines different beneficial properties in a single wire. CCA/CCAM wire integrates the beneficial properties of the wonderful conductivity of copper and the light-weight of aluminum; Tinned CCA/CCAM wire is good at anti-vulcanization.
2. With wonderful plasticity and easy to process further: CCA/CCAM wire can be done in the same way as with copper wire. CCA/CCAM wire is easy to be processed to fine wire or flat wire, and CCA/CCAM wire can be tinned.
3. Economical effect: the density of CCA is about 32~40% of the copper, its length is 2.45~3.00 times of copper in same weight and diameter. All of these contribute to reduce production cost for cable manufacturers.
4. Social and environmental effect: It is helpful to save copper resource by using copper-clad wire. The finished cable will be easy to transport and install because of light weight, and there is no pollution discharged during the production with clad-welding technique.
CCA-Copper Clad Aluminum wire
CCAM-Copper Clad Aluminum & Magnesium alloy wire
TCCA-Tinned CCA wire
2. Characteristic 0.20mm copper clad aluminum
Specification | Copper in Volume(%) | Copper in Mass(%) | Length comparison | Density (g/cm3) | Max.DC. Resistivity (ohms.mm2/m(20oC) | nductivity (%IACS) |
CCA-10% copper | 8~13 | 27 | 2.65:1 | 3.32 | 0.02743 | 63 |
CCA-15% copper | 13~17 | 37 | 2.45:1 | 3.63 | 0.02676 | 65 |
Copper 100% | 100 | 100 | 1:01 | 8.89 | 0.017241 | 100 |
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first".
If you have any questions, please feel free to contact us through email, phone, and trade message orother ways.
Zhengzhou Yuanda Cable Co., Ltd, as a super cable and wire manufacturer, specialized in professional wires and cables for construction,housing, lighting
and so on. Our products has greatly recognized by domestic and overseas clients. Our company introduced advanced production line and testing equipment,
has professional engineers and skilled workers and provide super services for each clients, which determine us to provide qualified goods and to be a reliable
and professional supplier.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for
telephone wire , TV lines and parvicostellae.
DR
1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
