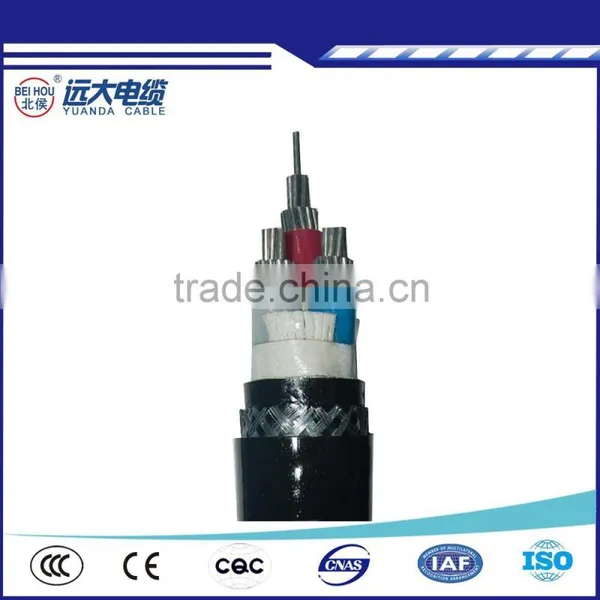

Cu / Al condcutor XLPE insulated steel tape armoured PVC sheathed power cable
- 1000 Kilometer / Kilometers per Month
- tianjin/qingdao/shanghai
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | Beihou | Model Number: | YJV/YJY/YJV22/YJV32&YJLV/YJLV22/YJLV32 |
Insulation Material: | XLPE | Type: | Medium Voltage | Application: | Underground |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

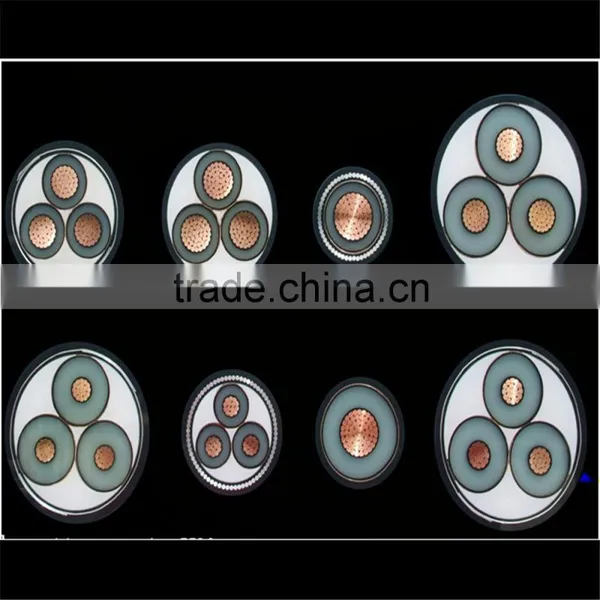

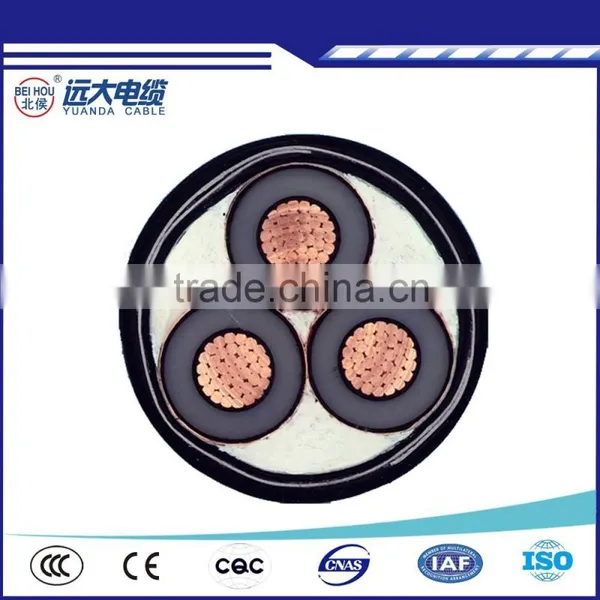

Sketches of product construction
1,Conductor 4,Insulation screen 7,Separator(Inner Cover)
2,Conductor Screen 5,Metallic Screen 8,Armour
3,XLPE Insulation 6,Filler 9,Outer Sheath
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90℃
Conductor Short circuit temperature
Not exceeding 250℃ . (Max. Duration 5 seconds)
Bending radius:
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0 ℃.
Laying conditions and basic parameters for calculating current ratings:
Method of laying Ambient temperature
In air 40℃
Direct burial 25℃
Soil thermal resistivity 1.0℃· m/W
Layout of single core cables: In parallel
(Spacing side by side: 1D D=overall diameter)
Scope of cables Table
Type | No . of | Rated voltage(KV) | ||||
0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 | ||
Nominal area of conductor (mm2) | ||||||
YJV | 1,2,3, | 1.5-630 | 10-400 | 25-400 | 25-400 | 25-400 |
XLPE Insulated Power Cable
Type, description and main applications Table 2
Type | Description | Main application |
YJV | Cu or AL conductor | For laying indoor and outdoor, |
YJV22 YJLV22 | Cu or AL conductor | For laying underground, |
YJV32 YJLV32 | Cu or AL conductor | For laying under ground, |
Our motto: “Customer Supreme, Quality First”, Zhengzhou Yuanda Cable wins customer trust as follows:
1.Quality control strictly follows ISO9001:2008 and ISO14001:2004, and all products we supplied are totally unused and use best raw materials by first-class techniques, and are carefully tested and qualified by all specified testing items.
2.Our company promises to offer best after-sale services to all customers. The service for cable fixation, installation and testing are available at customer’s request, if necessary, we can provide technicians to give detail instructions. Any problems on quality, we will repair or replace the defected products and the concerned expense or loss will be at our side.
3.Our company promises to offer cooperation and services according to the binding contract and requirements of supervision, testing for products.
Thanks for your attention to our products,we specialize in power cable for many years,with good quality and pretty competitive price.Should you have any questions,please do not hesitate to contact me.
