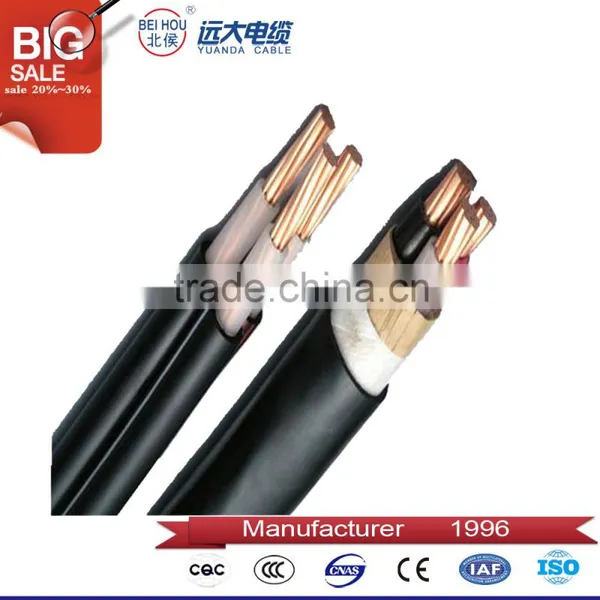

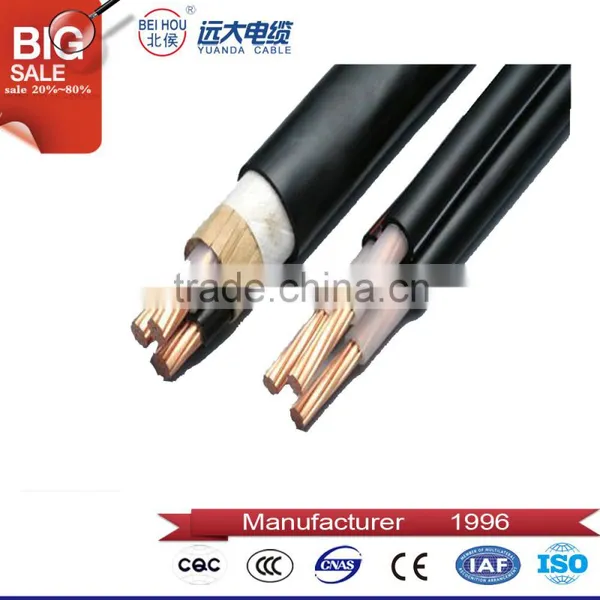

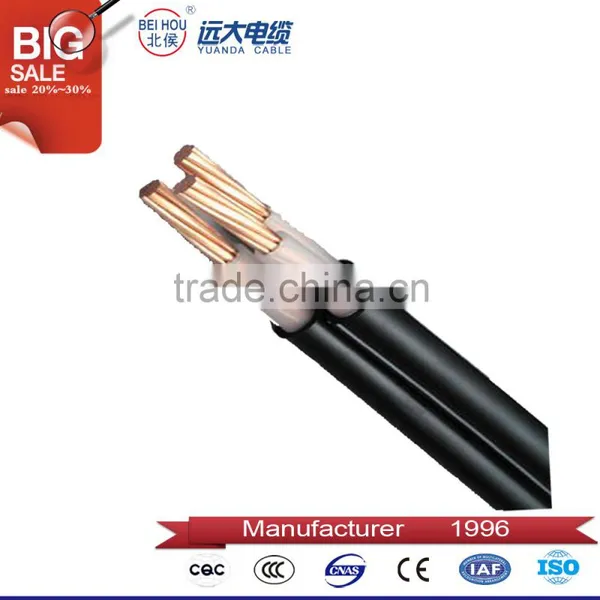

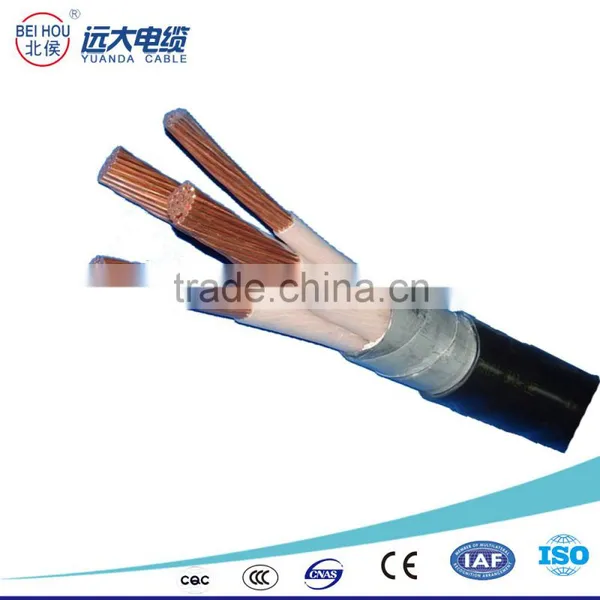

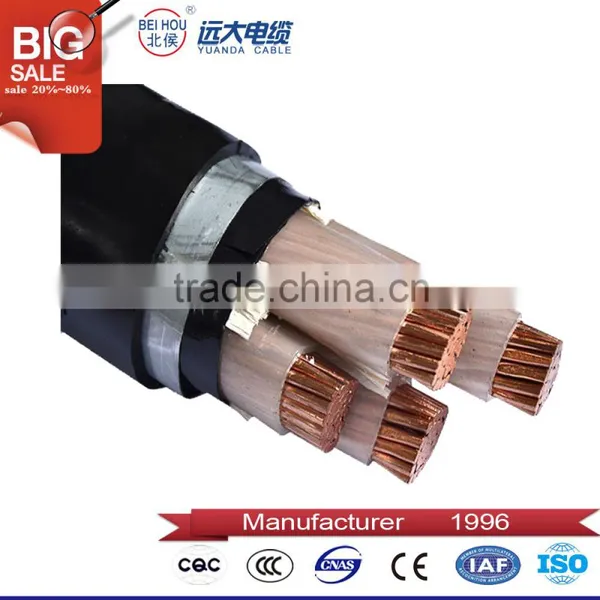

Help CenterXLPE Insulation Material With Rated Voltage From 0.6/1KV to 8.7/15KV
Related Products
-
Cu or AL Conductor XLPE Insulated PVC Sheath Power CableUS$ 1 - 10MOQ: 1000 Meters -
4 Cores Copper/Aluminum Conductor XLPE Insulated With Rated Voltage 0.6 / 1KV to 8.7 / 15KVUS$ 1 - 10MOQ: 1000 Meters
-
AL Conductor XLPE Insulated With Rated Voltage 0.6 / 1KV to 8.7 / 15KVUS$ 1 - 10MOQ: 1000 Meters
-
Alunimium Conductor XLPE Insulation Material and PVC Jacket Electric Cable With Rated Voltage 8.7 / 15KVUS$ 1 - 10MOQ: 1000 Meters
-
cu / Xlpe / Pvc Cable With Rated Voltage 8.7 / 15KVUS$ 1 - 10MOQ: 1000 Meters

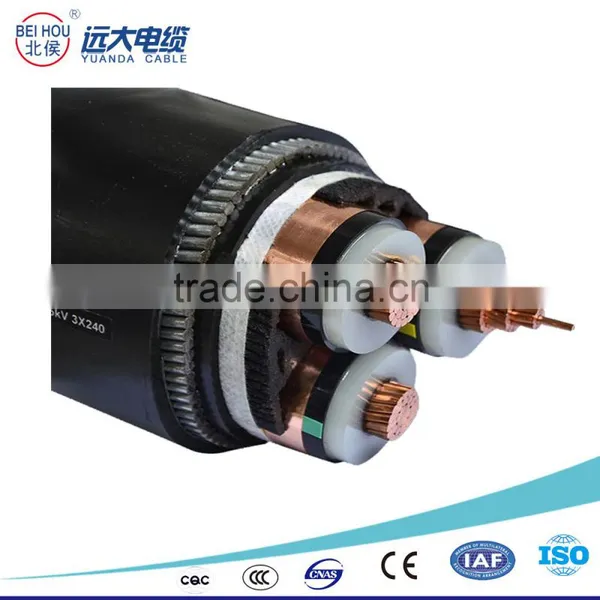

Sketches of product construction
1,Conductor 4,Insulation screen 7,Separator(Inner Cover)
2,Conductor Screen 5,Metallic Screen 8,Armour
3,XLPE Insulation 6,Filler 9,Outer Sheath
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90℃
Conductor Short circuit temperature
Not exceeding 250℃ . (Max. Duration 5 seconds)
Bending radius:
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0 ℃.
Laying conditions and basic parameters for calculating current ratings:
Method of laying Ambient temperature
In air 40℃
Direct burial 25℃
Soil thermal resistivity 1.0℃· m/W
Layout of single core cables: In parallel
(Spacing side by side: 1D D=overall diameter)
Scope of cables Table
Type |
No . of |
Rated voltage(KV) |
||||
0.6/1 |
1.8/3 |
3.6/6 |
6/6 6/10 |
8.7/10 |
||
Nominal area of conductor (mm2) | ||||||
YJV |
1,2,3, |
1.5-630 |
10-400 |
25-400 |
25-400 |
25-400 |
XLPE Insulated Power Cable
Type, description and main applications Table 2
Type |
Description |
Main application |
YJV |
Cu or AL conductor |
For laying indoor and outdoor, |
YJV22 YJLV22 |
Cu or AL conductor |
For laying underground, |
YJV32 YJLV32 |
Cu or AL conductor |
For laying under ground, |
Packaging&Shipping:
Packaging&Delivery:
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
