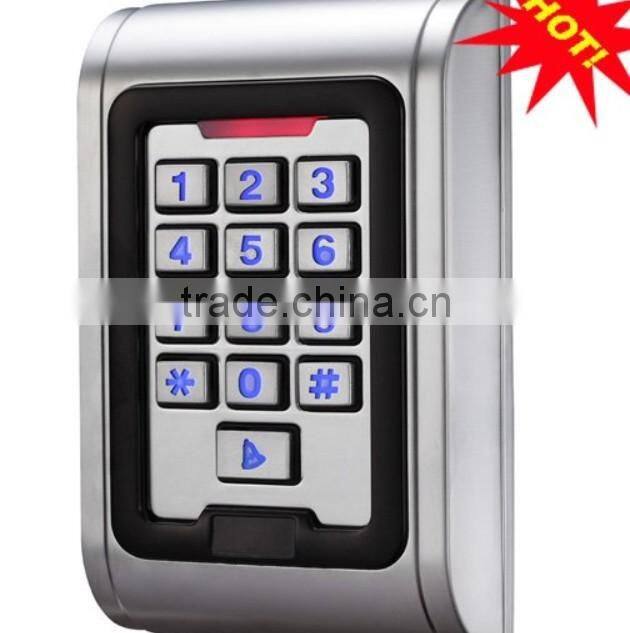

Electronic door lock keypad ,access control keypad ,standalone access control card reader
Features:
Classical appearance with useful function
High quality and high security
Strong Zinc Alloy Electroplated anti-vandal case
Designed for home and office
Sensitively and response quickly
Full programming from the keypad
Easy to install and program
Support 2000 standard users
Fast operating speed, <20ms with 2000 users
Built-in proximity card reader
Built-in keypad for PIN code entry
Backlight keys
Supports Card, PIN, Card + PIN
Wiegand 26 output for connection to a controller
Lock output current short circuit protection
Very low power consumption (30mA)
Can add card number and delete card number as your requirement
Alarm function
With lock relay output, secure / normal Mode, NO / NC output
Internal buzzer
Built-in bell button can connect a external bell
Important Notice:
Please note that "exit button", "electric lock" and "DC 12V power supply" are not included in this package, please kindly refer to our store for all available accessories for Access Control.
Specifications:
|
|
User Capacity : |
2000 |
Card Reading Distance : |
3 ~ 6 cm |
Compatible Cards : |
EMstandard cards |
Wiegand Interface : |
Wiegand 26 bit |
Lock Output Load |
< 3 A |
Alarm Output Load |
< 20 A |
Wiring Connections : |
Electric Lock, Exit Button, External Alarm |
Adjustable Door Relay time : |
0 ~ 99 seconds |
Adjustable Alarm Time : |
0 ~ 3 minutes |
Operation Temperature : |
-45°C ~ 60°C |
Input Voltage : |
DC 12V |
Input Current : |
- Standby : < 30mA (not including attached devices) |
Operating Humidity : |
10% ~ 90% RH |
Dimension : |
- Approx. 120 (W) x 58 (H) x 22 (D) mm |
Net Weight : |
Approx. 371g |
Package includes:
1 x Waterproof Door Access Control RFID Reader with Keypad Metal Case
1 x Installation Kit
1 x Installation Fixed Label
1 x User Manual
