Door access control system

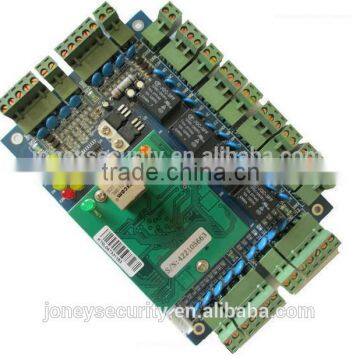

Door Access control system- -ACCESS CONTROLLER
*Support mobile phone remote control (NEW)
*TCP/IP / RS485/232 communiction/
*four doors
*connect to four readers,
*20 000pcs cards management authority,
Door access control system--Iron Box & Power
Door access control system --RFID Reader
Model |
JYC-13E |
Size |
86x 86x 18mm |
Color |
Black |
Voltage |
DC9~16V |
Current |
≤100mA |
Ambient Temperature |
-25°C~75°C |
Reading Range |
5~10CM |
Output Format |
Wiegand 26/34 |
Card Type |
EM-ID/13.56MHZ-IC |
Comunication Distance |
WG≤100M,RS485≤1200M |

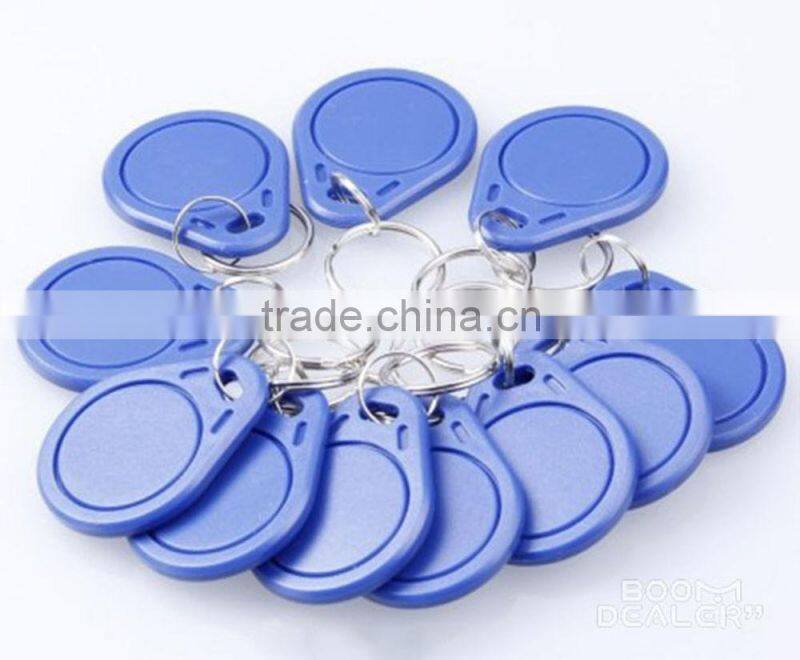

Door access control system --RFID Card/RFID Keyfob tags
Discription of RFID Card |
125KHz/ 13.56MHz contactless PVC Card |
||||||
Physical |
Chip |
TK4100 |
TK28 |
JY 1 S50 |
TKS50 |
||
Width |
54mm |
54mm |
54mm |
54mm |
|||
Length |
85.6mm |
85.6mm |
85.6mm |
85.6mm |
|||
Reading distance |
10cm |
10cm |
5-8M |
5-8M |
|||
Weight |
5.8g |
5.8g |
5.8g |
5.8g |
|||
Logo |
Offset or screen LOGO |
||||||
Printing |
Offset printing, silkscreen printing, personalization printing with signature panel, magnetic stripe— 350 Oe, 650 Oe, |
||||||
Material |
PVC/PET |
||||||
Working temperature |
-10-60 degree centigrade(PVC), -20-80degree centigrade(PET) |
||||||
Frequency |
125KHz/ 13.56MHz |
||||||

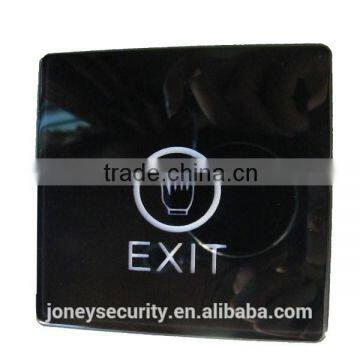

Door access control system--IR EXIT Button NO touch !
No touch / Touch free Exit Sensor (Diffused Detection)
Specifications:
|
· Contact Rating: 3A/AC120V,DC30V · Input Volt.: DC 12V · Simple and clear for operation. · Operation temperature range -20.C 55.C · Life: 100,000 Times · Durable stainless steel plate · Dimension: 115x70x29(mm) · Weight: 85g |
Door access control system--Magnetic Lock with LED(600Lbs)
Specification:
Product Electro magnetic Locks with LED
Voltage DC12V and DC24V adjustable
Main Features With LED and Feedback
Current Draw 12V/500mA 24V/250mA
Holding Force 280kg (600lbs)
Lock Size 250Lx47Wx25H(mm)
Armature plate 180Lx38Wx11H(mm)
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20°C
Operating Temp -10~+55°C(14-131F)
Door access control system---Free access control software
Door access control system---Mobile phone control APP New!
