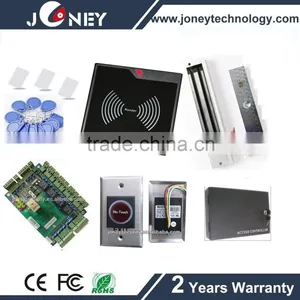

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock thumbnail-3

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock thumbnail-4

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock thumbnail-5

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock thumbnail-6

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-1

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-2

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-3

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-4

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-5

Security Access Control System RFID Card Reader, Access Controller and Magnetic Lock photo-6

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer, Trading Company, Agent

Year Established:

2012

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Security Access control system RFID card reader,

access controller and magnetic lock

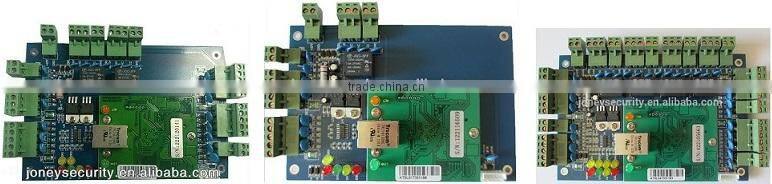

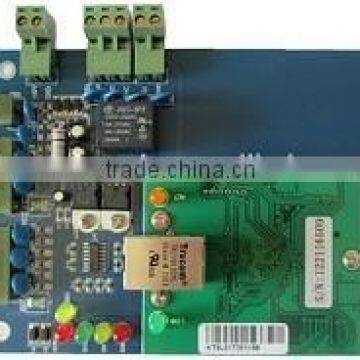

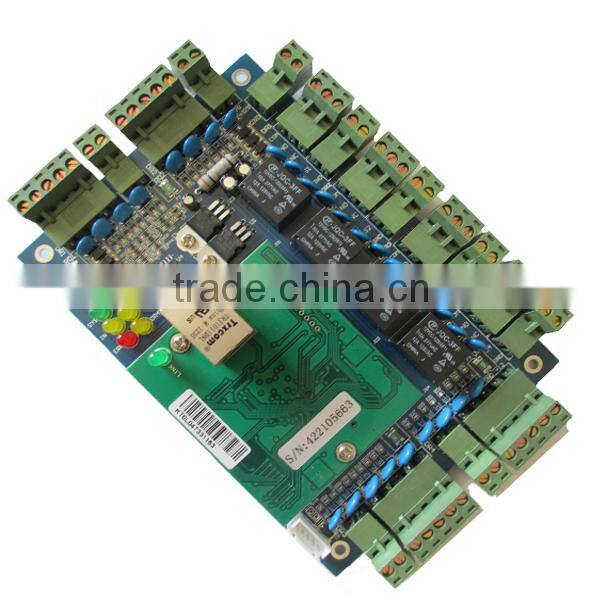

Door Access control system- -ACCESS CONTROLLER

Features :

*Support mobile phone remote control (NEW)

*TCP/IP / RS485/232 communiction/
*four doors (Two doors /one door is optional)
*connect to four readers
*20 000pcs cards management authority,

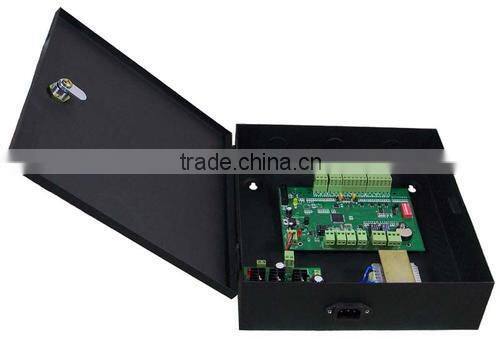

Door access control system--Iron Box & Power

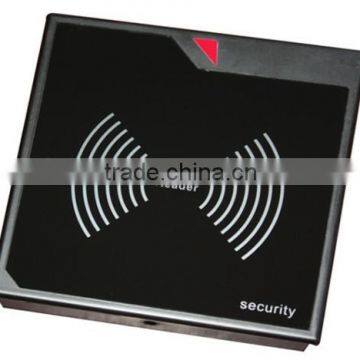

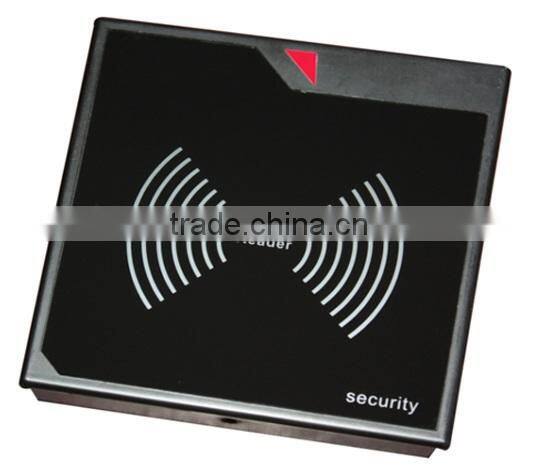

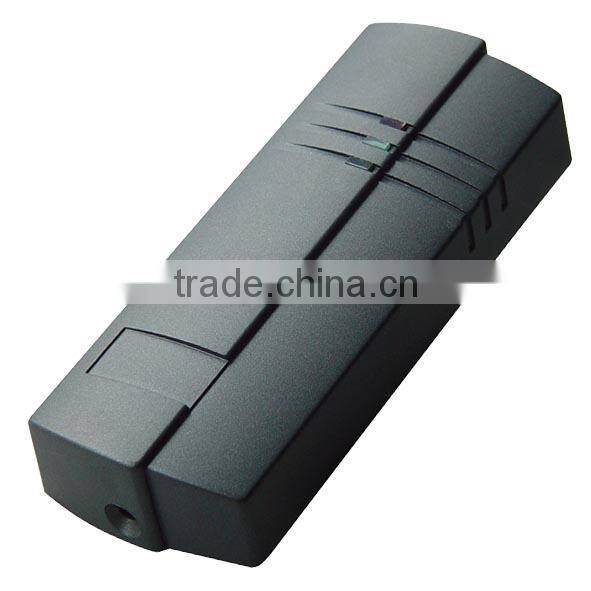

Door access control system --RFID Reader

Features :

. Wiegand 26 Access Control card reader
. For EM card
. 125Khz
. Wiegand 26/34/RS485/232

Main specification :

Model	JYC-19E
Read Range	Up to 10CM
Working current	≤100mA
Power / Current	DC 9-12V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension(W x H x T)mm	100×100×20 mm

Connection:

Red --------------------------------+12V

Black Wire ----------------------GND

Blue Wire -----------------------DATA 1

White Wire ----------------------DATA 2

Green Wire ----------------------LED

Brown Wire ---------------------BUZZER

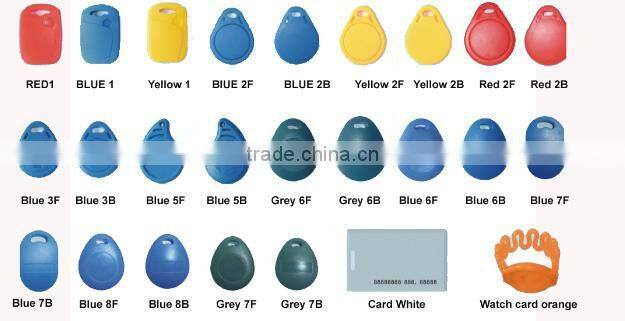

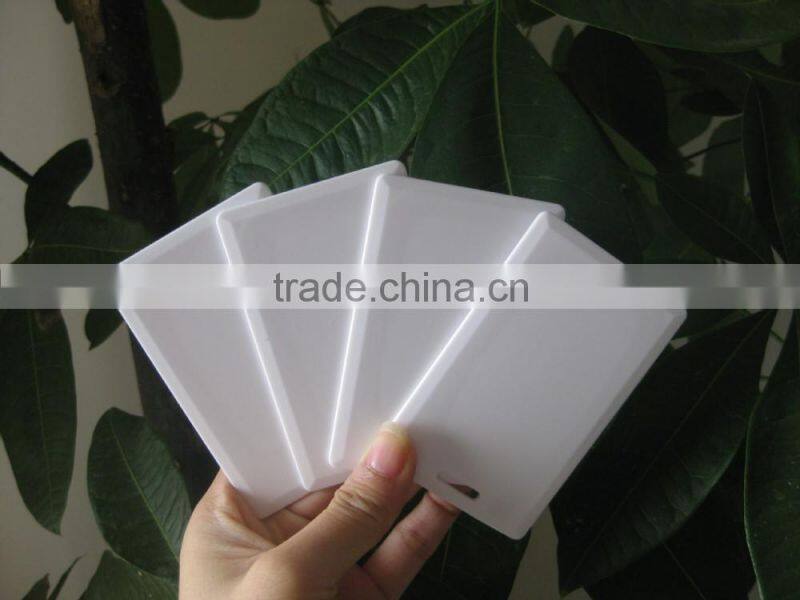

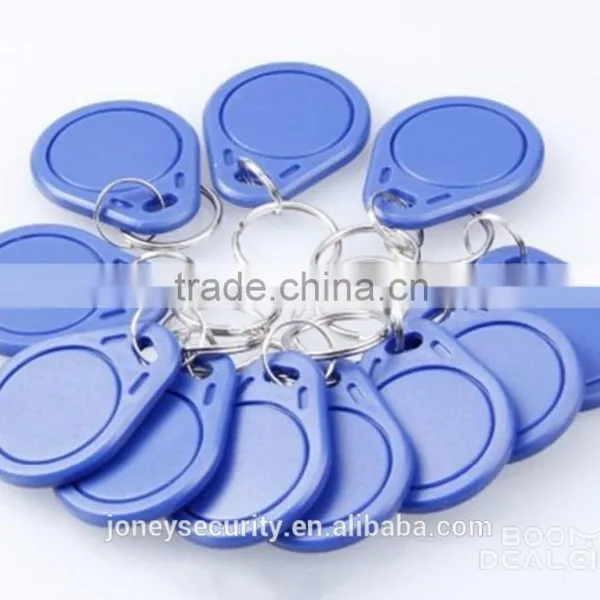

Door access control system --RFID Card/RFID Keyfob tags

specification :

Discription of RFID Card	125KHz/ 13.56MHz contactless PVC Card
Physical	Chip	TK4100	TK28	JY 1 S50	TKS50
	Width	54mm	54mm	54mm	54mm
	Length	85.6mm	85.6mm	85.6mm	85.6mm
	Reading distance	10cm	10cm	5-8M	5-8M
	Weight	5.8g	5.8g	5.8g	5.8g
	Logo	Offset or screen LOGO
Printing	Offset printing, silkscreen printing, personalization printing with signature panel, magnetic stripe— 350 Oe, 650 Oe,
Material	PVC/PET
Working temperature	-10-60 degree centigrade(PVC), -20-80degree centigrade(PET)
Frequency	125KHz/ 13.56MHz

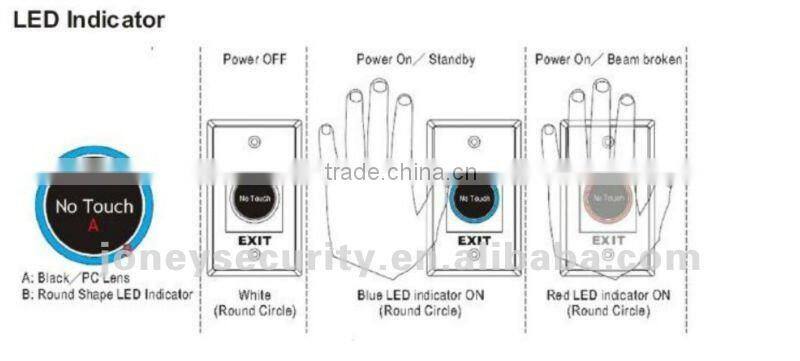

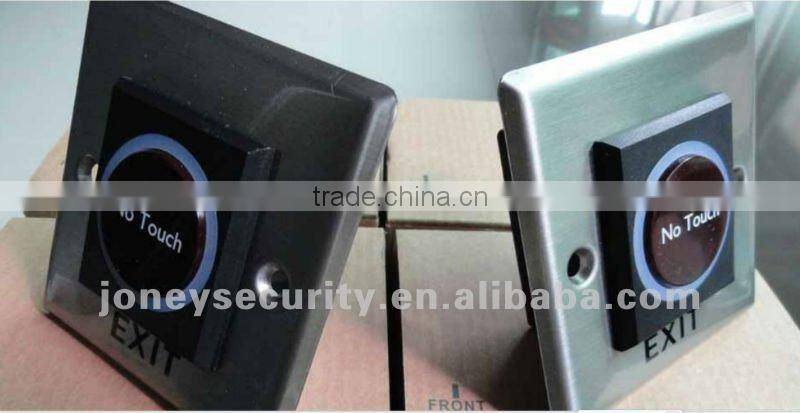

Door access control system--IR EXIT Button NO touch !

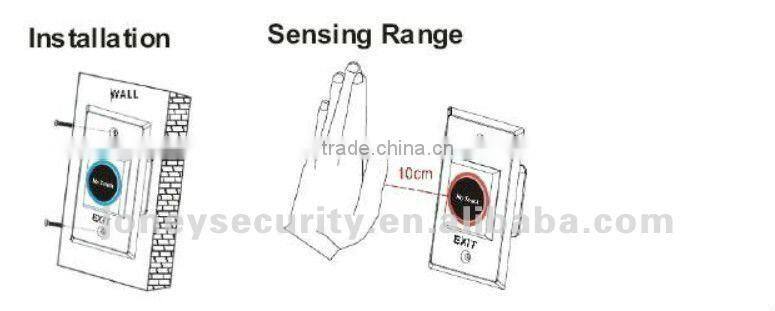

No touch / Touch free Exit Sensor (Diffused Detection)

specification :

· Contact Rating: 3A/AC120V,DC30V

· Input Volt.: DC 12V

· Simple and clear for operation.

· Operation temperature range -20.C 55.C

· Life: 100,000 Times

· Durable stainless steel plate

· Dimension: 115x70x29(mm)

· Weight: 85g

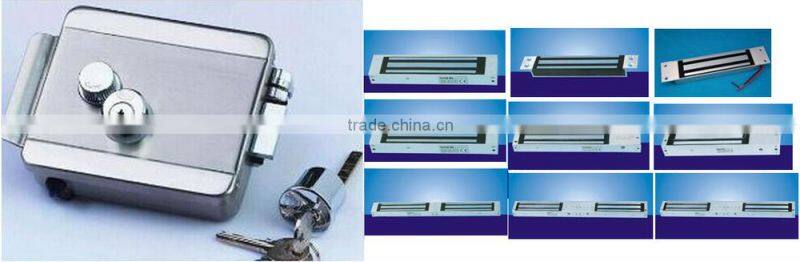

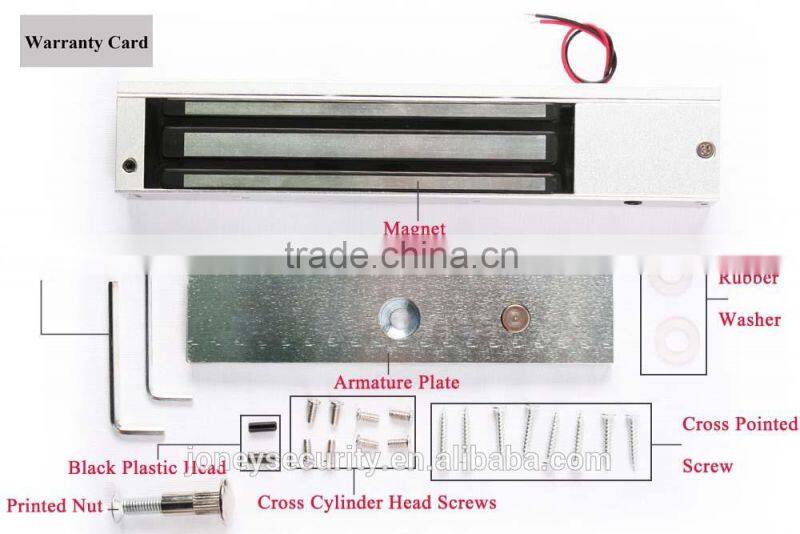

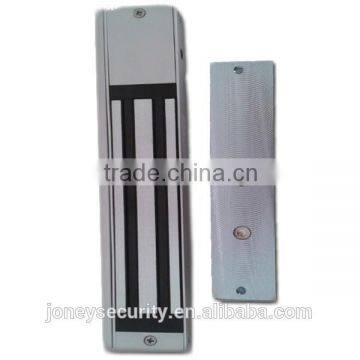

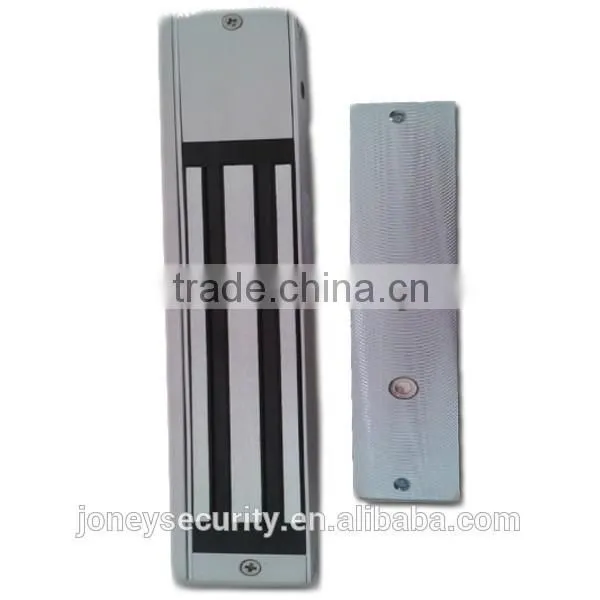

Door access control system--Magnetic Lock with LED(600Lbs)

specification :

Product Electro magnetic Locks with LED
Voltage DC12V and DC24V adjustable
Main Features With LED and Feedback
Current Draw 12V/500mA 24V/250mA
Holding Force 280kg (600lbs)
Lock Size 250Lx47Wx25H(mm)
Armature plate 180Lx38Wx11H(mm)
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20°C
Operating Temp -10~+55°C(14-131F)
