Access Control System Two Doors Rfid Keypad Reader

Access Control System Two Doors Rfid Keypad Reader photo-1
Access Control System Two Doors Rfid Keypad Reader photo-2
Access Control System Two Doors Rfid Keypad Reader photo-3

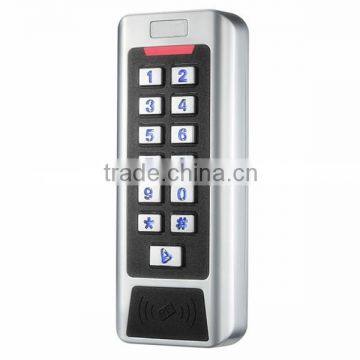

Access Control System Two Doors Rfid Keypad Reader photo-4

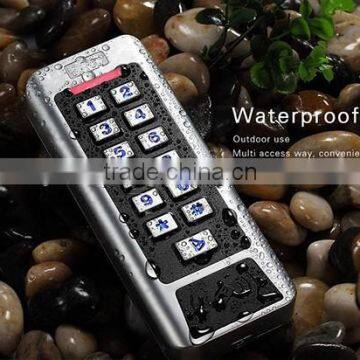

Access Control System Two Doors Rfid Keypad Reader photo-5

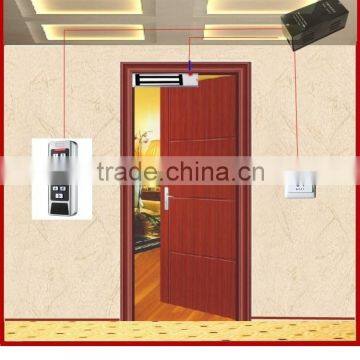

Access Control System Two Doors Rfid Keypad Reader photo-6
US$ 68 - 75 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joneytech
Model Number:
JYA-CC1EM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Joneytech
Model Number JYA-CC1EM

Access control system two doors rfid keypad reader



Access control system two doors rfid keypad reader





Product Description

 High Light:

1. Wiegand Reader

2. Standalone for single door

3. Standalone for two doors

4. With external reader for two doors

5. Two units interlocked for two doors

6. Anti-passback for single door

7. Anti-passback for two door.

Features:



CC1-ASEM read EM+HI-D card
CC1-ASMF read MIF+CPU cards

Non-waterproof, plastic housing, anti-temper
Backlit under keys, 2000 users capacity, AC/DC 12V
LED, backlit and beeper can be set to normal ON, normal OFF or Human-Approach ON.

It can directly drive lock, alarm, ring bell and connect with exit button, door contact.
Multi working modes: Reader, one door, two door, interlock, Anti-passback and so on.
Add and delete card user quickly with manger cards.

Size: 145*55*22mm Gross Weight: 0.40KGS
5 years guarantee replacement, life-long time free maintenance



Advantage



1. Wiegand in/out

2. Metal casing

3. Capacity: 2000 user

4. Reading card:  125KHz/13.56MHZ

5. Anti- passback for two doors

6. With external reader for two doors

7. Multi way of backlighting optional

8.2 relays, supports up to 2000 users in total for 2 doors

Specification:

Card Type EM+H.ID+M-F+CPU
Frequency 125KHz/13.56MHZ
Working Voltage DC 12V
Reading range 5~8cm
Mode type  standalone access control keypad for two doors
Operating Humidity 10%~90%
Alarm output load ≤20A
Door opening time 0~99s (adjustable)
Idle Current ≤30mA
Operating Temperature -35~60
Lock output load ≤3A
Short-circuit protection time ≤100 μs
Dimensions 145*55*22mm
