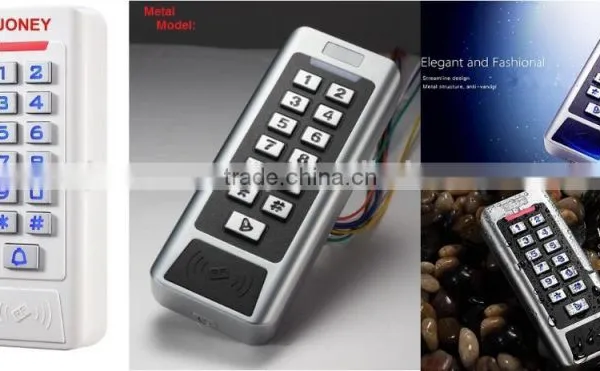

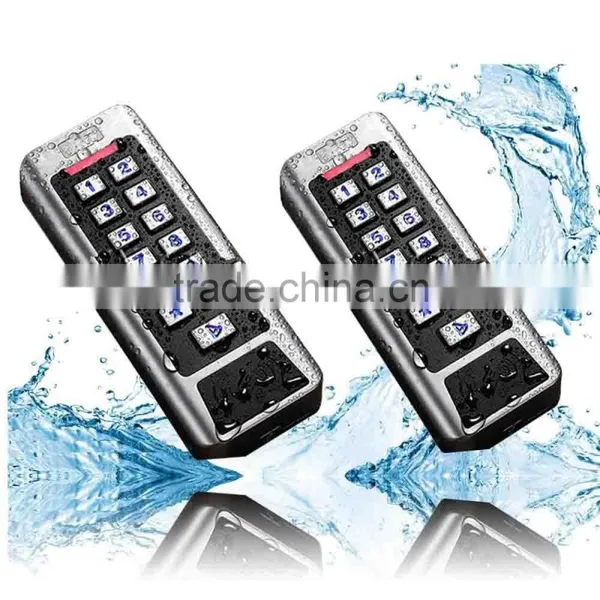

Access control system rfid keypad 2 relays rfid keypad access controller
High Light:
1. Wiegand Reader
2. Standalone for single door
3. Standalone for two doors
4. With external reader for two doors
5. Two units interlocked for two doors
6. Anti-passback for single door
7. Anti-passback for two door.
Features:
CC1-ASEM read EM+HI-D card
CC1-ASMF read MIF+CPU cards
Non-waterproof, plastic housing, anti-temper
Backlit under keys, 2000 users capacity, AC/DC 12V
LED, backlit and beeper can be set to normal ON, normal OFF or Human-Approach ON.
It can directly drive lock, alarm, ring bell and connect with exit button, door contact.
Multi working modes: Reader, one door, two door, interlock, Anti-passback and so on.
Add and delete card user quickly with manger cards.
Size: 145*55*22mm Gross Weight: 0.40KGS
5 years guarantee replacement, life-long time free maintenance
1. Wiegand in/out
2. Metal casing
3. Capacity: 2000 user
4. Reading card: 125KHz/13.56MHZ
5. Anti- passback for two doors
6. With external reader for two doors
7. Multi way of backlighting optional
8.2 relays, supports up to 2000 users in total for 2 doors
Specification:
| Card Type | EM+H.ID+M-F+CPU |
| Frequency | 125KHz/13.56MHZ |
| Working Voltage | DC 12V |
| Reading range | 5~8cm |
| Mode type | standalone access control keypad for two doors |
| Operating Humidity | 10%~90% |
| Alarm output load | ≤20A |
| Door opening time | 0~99s (adjustable) |
| Idle Current | ≤30mA |
| Operating Temperature | -35~60 |
| Lock output load | ≤3A |
| Short-circuit protection time | ≤100 μs |
| Dimensions | 145*55*22mm |
