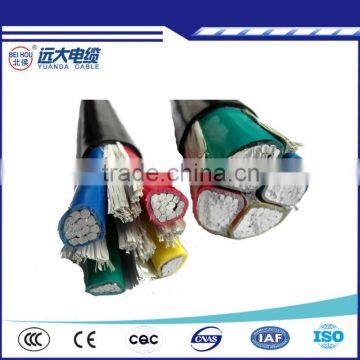

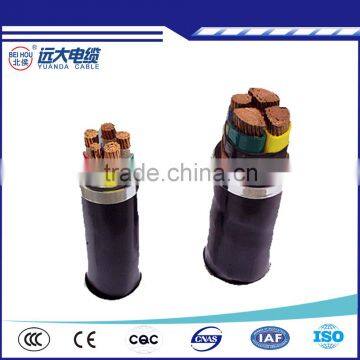

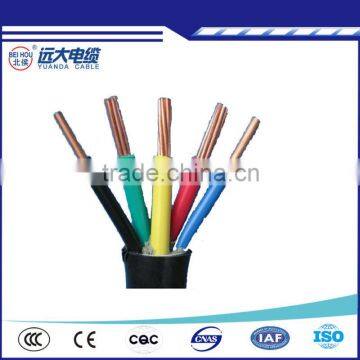

flame-retardant medium voltage 3x16mm2 PVC insulated electric power cable
Reated voltage: 600/1000V
Conductor: BS 6360 Class 2, standard copper or alminum (IEC 60228)
Insulation: BS 6746 TI I PVC comppound
Insulation Color: Standard
Sheath (jacket): BS6746 TM1 PVC Compound
Operating temperature:70oC
Mini bending radius: 10*overall insulated diameter
Standard: BS 6346 and IEC 60502
Application:
It is used to transmit and distribute power in power transmission and distribution system of 0.6/1KV, apply to lay indoor, in tunnel, cable trench.
Model |
Name |
Application |
VV |
Copper conductor,PVC insulated,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminum conductor,PVC insulated,PVC sheathed power cable |
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
VLY |
Aluminum conductor,PVC insulated,PE sheathed power cable |
|
VV22 |
Copper conductor,PVC insulated,steel tape armored,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminum conductor,PVC insulated,steel tape armored,PVC sheathed power cable |
|
VV23 |
Copper conductor,PVC insulated,steel tape armored,PE sheathed power cable |
|
VLV23 |
Aluminum conductor,PVC insulated,steel tape armored,PE sheathed power cable |
|
VV32 |
Copper conductor, PVC insulated, steel wire armored,PVC insulated power cable |
For laying indoors, in cable or direct in ground , able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminum conductor, PVC insulated ,steel tape armored ,PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armored , PE sheathed power cable |
|
VLV33 |
Aluminum conductor , PVC insulated , steel wire armored ,PE sheathed power cable |
|
|
Note: The armored single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
Operating features:
1. Max. permissible continuous operating temperature of conductor ≤70°
2. Max. temperature of cable conductor during short circuit (not more than 5 seconds) shall not exceed 160°C
3. The ambient temperature when installation should be above 0°C.
4. The product is manufactured according to the standard of GB,IEC,DIN and ICEA upon request

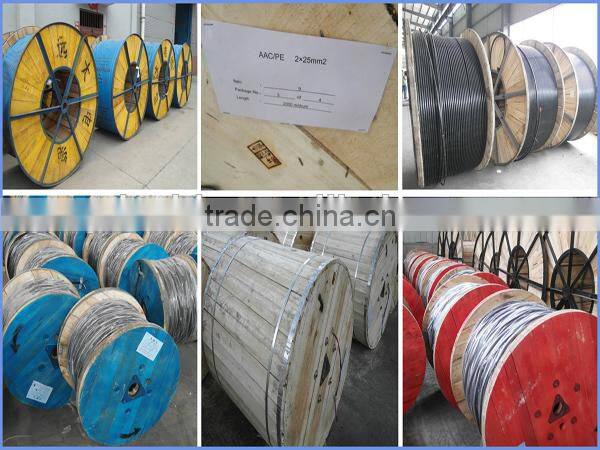

Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first". If you have any questions, please feel free to contact us through e-mail, phone, and trade message or other ways.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Yuanda cable products:
1. XLPE Power Cables
2. Building Wires & PVC Cables
3.Rubber &Welding Cables
4.Flame- Retardant/LSZH Cables
5.Aerial Bundled Cable (ABC)
6. Control Cables
7. Aerial Cables
8.CAT5E,CAT6 Network Cable
10.Rubber Cables
11.Plastic Insulated Cables
12. Telephone and TV lines
13. Sockets and Switches
14. Cables and Wires customized
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
