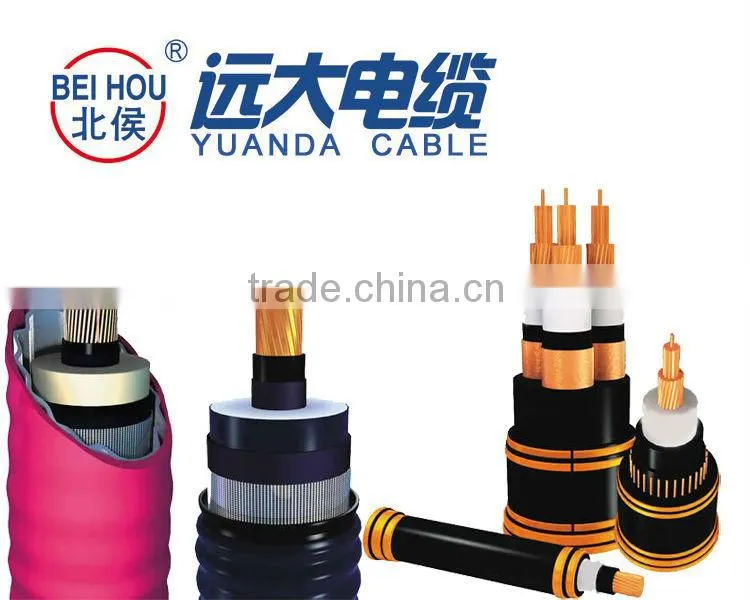

3x16mm2 Low Voltage Type and PVC Insulation power cable
Standard:
ISO9001, ISO14001, OHSMS18001, CB, CE, SAA, AS/NZS, BS ,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
Construction:
Conductor: Solid or stranded copper/aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Nominal Section:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
Specification:
Type |
Designation |
Application |
VV |
Copper conductor ,PVC insulated ,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminum conductor ,PVC insulated ,PVC sheathed power cable |
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
VLY |
Aluminum conductor ,PVC insulated ,PE sheathed power cable |
|
VV22 |
Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminum conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV23 |
Copper conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
VLV23 |
Aluminum conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
VV32 |
Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable |
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminum conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
|
VLV33 |
Aluminum conductor , PVC insulated , steel wire armoured ,PE sheathed power cable |
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
We can also manufacture others power cable according to customer's special requirements.
Packaging & Shipping
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Usually, within 7~10 days, the goods will be ready.
Shipping:
Orders shipped 10% faster than competitors.
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Factory Pictures:
Why Us:
1. Long History--23 years experience in producing electric cable
2.Quality Testing--Quality with ISO9000/BV
3.Payment Flexible--T/T, Western Union, VISA, Mastercard is available.
4.Professional--Professional team with high efficiency in communicating with our factory and clients,help your business much easier.
5.Export Experiences-- 15 years of export experience, An outstanding logistics team back with us efficiently operate the whole transporation.
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.
5. Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, balance payment negotiable accordingly.
6. Have you ever supplied cables to our country?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
7. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific cable requirement.
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
