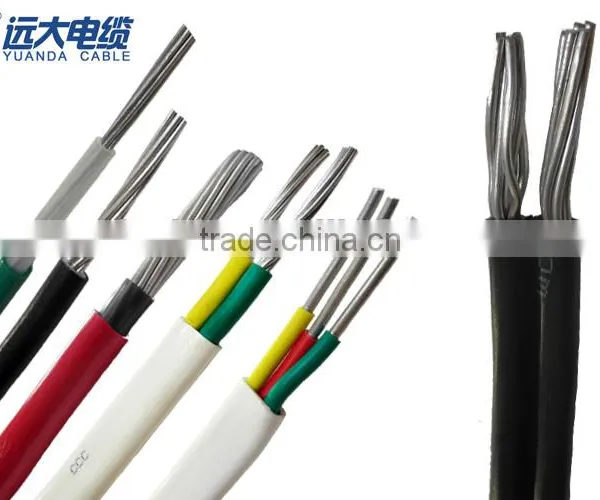

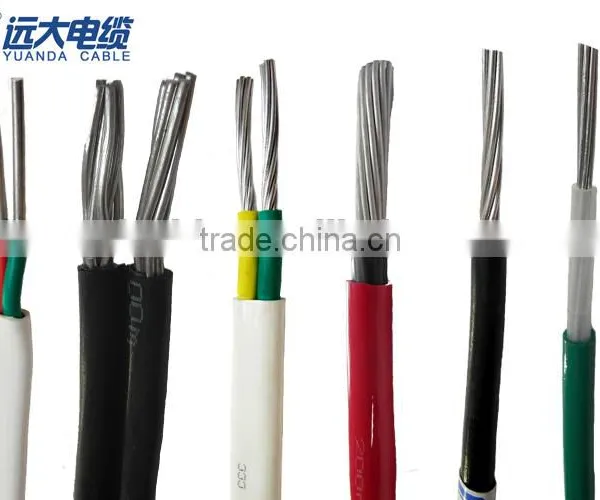

Help CenterAluminium Core PVC Insulated and Sheathed Fire-retarding Power Cable
Related Products
-
PVC Insulation Power Cable 4x4mm2 With Cooper ConductorUS$ 1 - 15MOQ: 500 Meters -
High Quality 95mm Pvc Power Cable With Aluminum ConductorUS$ 1 - 15MOQ: 500 Meters
-
0.6/1KV Pvc Insulation Power Cable With Aluminum ConductorUS$ 1 - 15MOQ: 500 Meters
-
Low Voltage 0.6/1KV PVC Insulation Power CableUS$ 1 - 15MOQ: 500 Meters
-
Best Selling Products 4 Core 120mm2 Copper Pvc Insulation Electrical Power CableUS$ 1 - 15MOQ: 500 Meters
Application
The cables are designed for fixed installation
of power transmission and distribution equipments and
power equipments where fire retardation is requested with rated voltage 0.6/1KV and below.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
AC Rated voltage Uo/U 0.6/1KV.
Testing flame temperature: Category A is 950℃-1000℃
Category B is 750℃-800℃
Permissive continuous conductor working temperature of PVC, PE insulated cable is not more than 70℃ , permissive
continuous conductor working temperature XLPE is not more than 90℃ .
The lowest ambient temperature of cable installation is 0℃
Min.bending radius of cable installation is:
Non-armoured cable 10D mm;
Armoured cable 12D mm.
In the formula: D-actual overall diameter of cable, mm.
Descriptive method of cable and sketches of product construction
Note: Y, YJ and V mean PE, XLPE and PVC respectively. We can manufacture category A or B cable upon requests.
1. Construction of insulated core
2. Diagram of cable construction
1 Insulated core
2 Flame resistance PVC filler
3 Lapping layer
4 Outer sheath (Outer sheath without armouring is flame resistance PVC sheath,outer sheath with armouring include flame resistance PVC inner layer,steel tape armour and flame resistance PVC sheath)
5 Flame resistance PP tape filler
Type and description
TYPE |
Description |
Application |
NHA(B)-VV |
Copper core PVC insulated and sheathed |
For fixed installation laying indoors, |
NHA(B)-VV22 |
Copper core PVC insulated and sheathed |
For fixed installation laying indoors, |
NHA(B)-YJV |
Copper core XLPE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YJV22 |
Copper core XLPE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YV |
Copper core PE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YV22 |
Copper core PE insulated and PVC sheathed |
For fixed installation laying indoors, |
Specification of cable
Type |
Core number |
Nom. Cross section |
NHA(B)-VV |
1 |
2.5~300 |
2.3 |
2.5~185 |
|
3+1. 4 . 3+2 .5 |
4~185 |
Packaging
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Our motto: “Customer Supreme, Quality First”, Zhengzhou Yuanda Cable wins customer trust as follows:
1.Quality control strictly follows ISO9001:2008 and ISO14001:2004, and all products we supplied are totally unused and use best raw materials by first-class techniques, and are carefully tested and qualified by all specified testing items.
2.Our company promises to offer best after-sale services to all customers. The service for cable fixation, installation and testing are available at customer’s request, if necessary, we can provide technicians to give detail instructions. Any problems on quality, we will repair or replace the defected products and the concerned expense or loss will be at our side.
3.Our company promises to offer cooperation and services according to the binding contract and requirements of supervision, testing for products.
Thanks for your attention to our products,we specialize in power cable for many years,with good quality and pretty competitive price.Should you have any questions,please do not hesitate to contact me.
