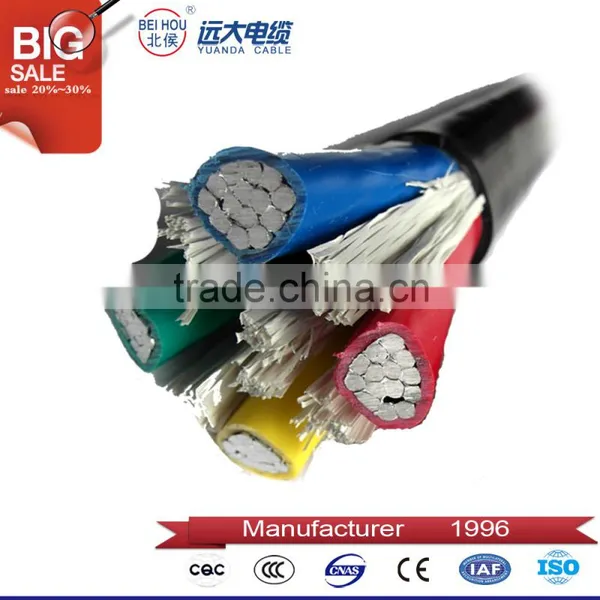

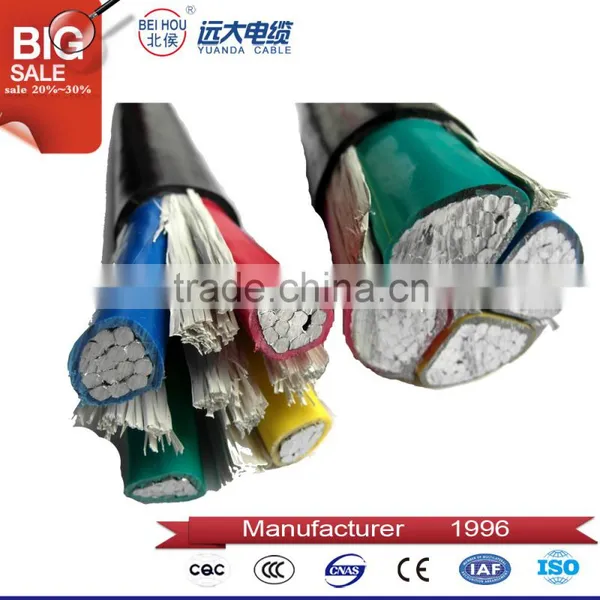

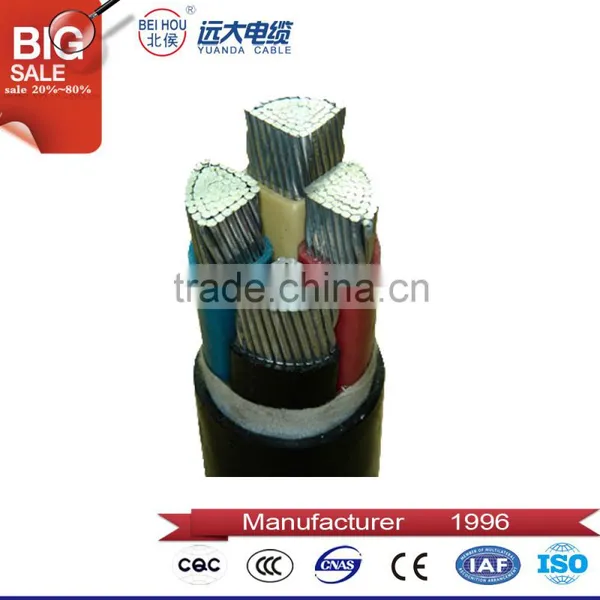

Help CenterAluminium Conductor Material PVC Insulation Material and Low Voltage Type Armoured Cable
Related Products
-
Three Phase Cable 3.6/6 kv 120mm PVC Cable/copper Electrical Power Cable WireUS$ 1 - 15MOQ: 500 Meters -
Best Quality 5cores Copper Conductor Material and PVC Insulated Power CableUS$ 1 - 15MOQ: 500 Meters
-
Low Voltage Type and Copper Conductor Material Aluminium Air Pvc Insulation WireUS$ 1 - 15MOQ: 500 Meters
-
Top Sale Aluminium Conductor Material and PVC Insulation PVC Jacket Power Cable of Rated Voltage 3.6 / 6KVUS$ 1 - 15MOQ: 500 Meters
-
3.6/6kv Copper Conductor Material and PVC Insulation Material Electrical WireUS$ 1 - 15MOQ: 1000 Meters
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 70℃
Conductor Short circuit temperature
Not exceeding 160℃ .( Max. duration 5 seconds)
Bending radius:
Bending radius of single core cable: 20D
Bending radius multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0℃ .
Laying conditions and basic parameters for calculating current ratings:
Method of laying Ambient temperature
In air 40℃
Direct burial 25℃
Soil thermal resistivity 1.0℃·m/W
Layout of single core cables: In triangle (Touch each other)
Sketches of product construction
Single-core non-armoured cable Three-core armoured cable “4+1” core non-armoured cable
1.Conductor 2.PVC Insulation 3.Filler 4.Inner Cover 5.Armour 6.Outer sheath
Scope of cables
No .of |
Nominal area of conductor (mm2) |
||
V V ,VLV |
V V 22,VLV 22 |
V V32, VLV32 |
|
1* |
1.5-400 |
10-300 |
10-300 |
2 |
1.5-240 |
4-300 |
25-185 |
3 |
1.5-240 |
4-300 |
4-240 |
3+1 |
4-240 |
4-300 |
25-185 |
4 |
4-240 |
4-240 |
25-185 |
3+2 |
4-300 |
4-300 |
|
4+1 |
4-240 |
4-240 |
|
5 |
4-95 |
4-95 |
|
*Non-magnetic matrials shall be applied for the armor of single core cable.
Type, description and main applications Table 1
Type |
Description |
Main application |
VV |
Cu or Al conductor |
For laying indoor and outdoor, |
V V 22 |
Cu or Al conductor |
For laying underground, |
V V32 |
Cu or Al conductor XLPE |
For laying underground, |
Note: ZR is added in the front of the type of common power cable to form flame resistant power cable type. e.g. ZR-VV,ZR-VLV22,ZR-VV32 and so on.
Packaging&Shipping:
Packaging&Delivery:
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
