Specifications
Mode:YJV,YJV22,YJLV,YJLV22
1. IEC, ASTM, DIN, BS standard
2. ISO,CCC certification
3+2cores Round Low/Medium voltage
Application
The cables are designed for fixed installation
of power transmission nd distribution equipments and
power equipments where fire retardation is requested with rated voltage 0.6/1KV and below.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
1. AC Rated voltage Uo/U 0.6/1KV.
2. Testing flame temperature: Category A is 950℃-1000℃
Category B is 750℃-800℃
3.Permissive continuous conductor working temperature of PVC, PE insulated cable is not more than 70℃ , permissive
4. continuous conductor working temperature XLPE is not more than 90℃ .
5. The lowest ambient temperature of cable installation is 0℃
Min.bending radius of cable installation is:
Non-armoured cable 10D mm;
Armoured cable 12D mm.
In the formula: D-actual overall diameter of cable, mm.

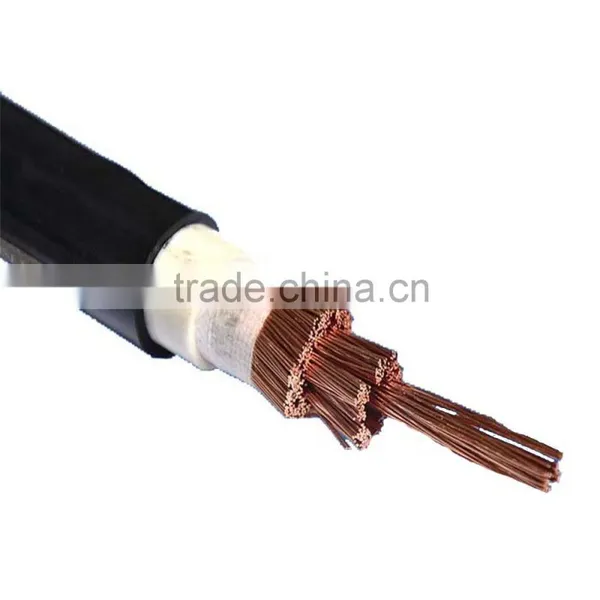

1. Construction of insulated core
2. Diagram of cable construction
1 Insulated core
2 Flame resistance PVC filler
3 Lapping layer
4 Outer sheath (Outer sheath without armouring is flame resistance PVC sheath,outer sheath with armouring include flame resistance PVC inner layer,steel tape armour and flame resistance PVC sheath)
5 Flame resistance PP tape filler

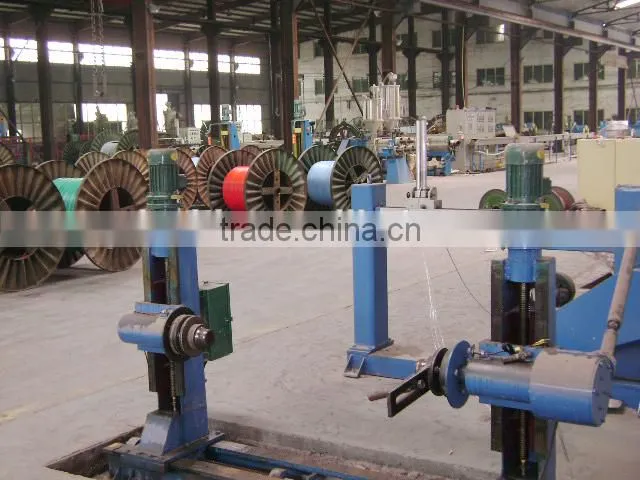

Main Manufacturing Procedure:
1.Copper wire drawing and annealing.
2.Copper wire stranding.
3.PVC insulation extruding.
4.Cores Twisting.
5.Outer sheath extruding and labeling.
6.Spooling.
Quality and service:
Our motto: “Customer Supreme, Quality First”, Zhengzhou Yuanda Cable wins customer trust as follows:
1.Quality control strictly follows ISO9001:2008 and ISO14001:2004, and all products we supplied are totally unused and use best raw materials by first-class techniques, and are carefully tested and qualified by all specified testing items.
2.Our company promises to offer best after-sale services to all customers. The service for cable fixation, installation and testing are available at customer’s request, if necessary, we can provide technicians to give detail instructions. Any problems on quality, we will repair or replace the defected products and the concerned expense or loss will be at our side.
3. Our company guarantees to deliver products in compliance with the bidding documentation.
4.Our company promises to offer cooperation and services according to the binding contract and requirements of supervision, testing for products.
Packaging & Shipping
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Our services:
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Feedback:
We will begin to manufacture products and leave feedback once payment received from clients after we reach the agreement.
If you have any problems with your order, we are happy to find an amicable resolution with your side.

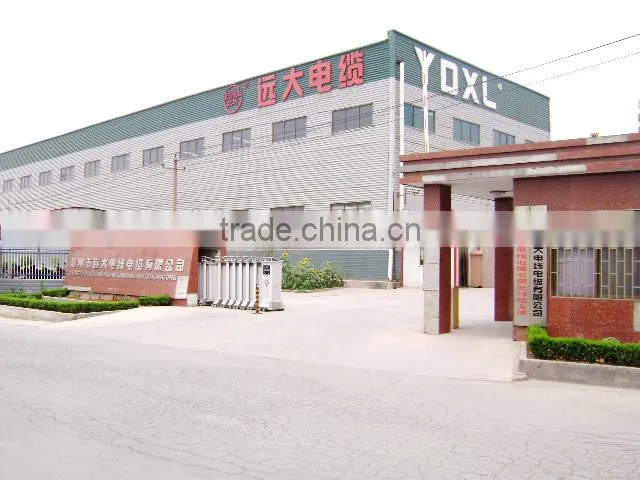

Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Yuanda Cable Products:
1. XLPE Power Cables Up to 220kV
2.Building Wires & PVC Cables (CE,IEC Certificate)
3.Rubber,Mining&Welding Cables (CE,IEC Certificate)
4.Solar Photovoltaic Cable (TUV Certificate)
5.Fire Resistant/LSZH Cables
6.Aerial Bundled Cable (ABC)
7.ACSR,AAC,AAAC Bare Conductor
8.CAT5E,CAT6 Network Cable
9.Control&Instrumentation Cables
10.Silicone Rubber Cables
11.Fluorine Plastic Insulated Cables
12.Customized Cables & Wires
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.
5. Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, balance payment negotiable accordingly.
6. Have you ever supplied cables to our country?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
7. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific cable requirement.
