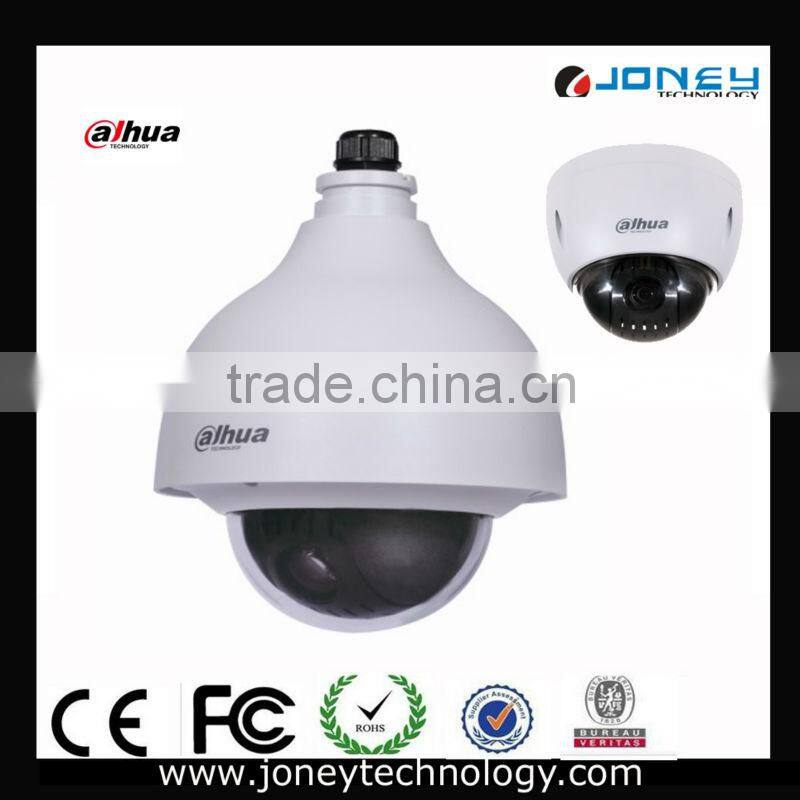

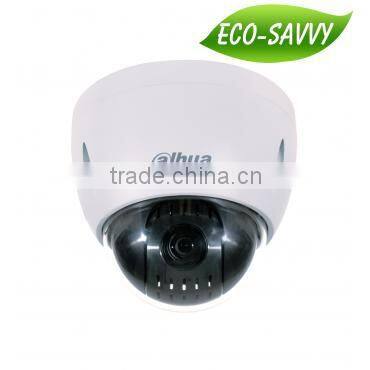

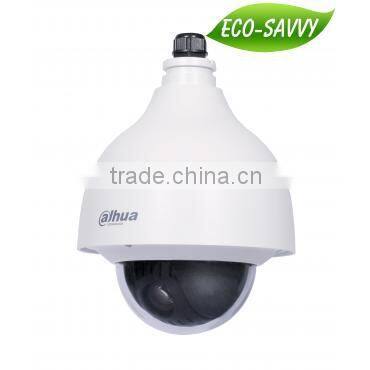

23x Dahua Mini Ptz Camera
US$ 200 - 260
/ Piece
1 Piece(Min. Order)
You May Like
-
9 Inch PTZ Speed Dome Camera
-
Constant Speed/Slow Speed Dome Camera
-
China Supplier High Speed Dome 30x CCD Sensor ONVIF Pan Tilt Zoom Camera
-
Dual IR Cut Filter 30X Zoom Sony 700TVL Vehicle Mini PTZ Camera
-
Robert Pan Tilt Zoom Speed Dome Camera
-
Sony 700TVL Professional 150M IR Distance Camera PTZ Full HD
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua | |
| Model Number | SD4023-H | Type | Analog Camera | |
| Style | Other, ptz camera mini size | Sensor | CCD | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
1. Dahua ptz camera mini2. 23x optical zoom
3.650TVL color ,700tvl B/W
4.Max 300 degree/s pan speed
5.255 presets
Features:
> Powerful 23x optical zoom > High resolution@650TVL/540TVL
> DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
> Max 300°/s pan speed, 360° continuous pan rotation
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out > Support intelligent 3D positioning with DH-SD protocol
> IP66
| Model | SD4023-H | SD4223-H | SD4023C-H | SD4223C-H |
| Camera | ||||
| Image Sensor | 1/4" EXviewHAD CCD II | 1/4" CMOS | ||
| Effective Pixels | 976(H) × 582(V) / 976(H) × 494(V) | 640(H) × 480(V) | ||
| Horizontal Resolution | Color: 650TVL; B/W: 700TVL | 540TVL | ||
| Scanning System | Interlacing | Progressive | ||
| Electronic Shutter Speed | 1/1s ~1/100,000s | 1/50(60)s ~1/100,000s | ||
| Min. Illumination | Color: 0.01 Lux/F1.6, B/W: 0.001Lux/F1.6 | Color: 0.5 Lux/F1.6, B/W: 0.05Lux/F1.6 | ||
| S/N Ratio | More than 50dB | |||
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |||
| Camera Features | ||||
| Day/Night | Auto(ICR) / Color / B/W | |||
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | BLC | ||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |||
| Gain Control | Auto / Manual | |||
| Noise Reduction | 2D / 3D | 2D | ||
| Privacy Masking | Up to 24 areas | N.A. | ||
| Digital Zoom | 16x | N.A. | ||
| Lens | ||||
| Focal Length | 3.9 mm~89.7mm (23x Optical zoom) | |||
| Max Aperture | F1.6~ F3.7 | |||
| Focus Control | Auto / Manual | |||
| Angle of View | 61.68° ~ 3.06° | |||
| Close Focus Distance | 100mm~1000mm | |||
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° | |||
| Manual Control Speed | Pan: 0.1° ~ 250°/s; Tilt: 0.1° ~150°/s | |||
| Preset Speed | Pan: 300°/s; Tilt:200°/s | |||
| Preset | 80(DH-SD) , 255(Pelco-P/D) | |||
| PTZ Mode | 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan | |||
| Speed Setup | Human-oriented focal length/ speed adaptation | |||
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |||
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |||
| Auxiliary Interface | ||||
| RS485 | 1 port | |||
| Alarm | 2/1 channel In/Out | |||
| General | SD4023-H | SD4023C-H | SD4223-H | SD4223C-H |
| Power Supply | AC24V/1.5A (±10%), DC12V optional | |||
| Power Consumption | 12W, 27W(Heater on) | 12W | ||
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | -10ºC ~ 50ºC / Less than 90% RH | ||
| Protection Level | IP66, IK10 optional | |||
| Dimensions | Φ186mm×234mm | Φ170mm×155mm | ||
| Weight | 2KG | 1.5KG | ||
