Passive 860Mhz~960MHz UHF RFID Reader With Long Range 25m

Name: Passive 860Mhz~960MHz UHF RFID Reader With Long Range 25m
Brand: Joney
SKU: 128349013
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney

Model Number:

JYA-LR0704

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney

Model Number JYA-LR0704

Product Description

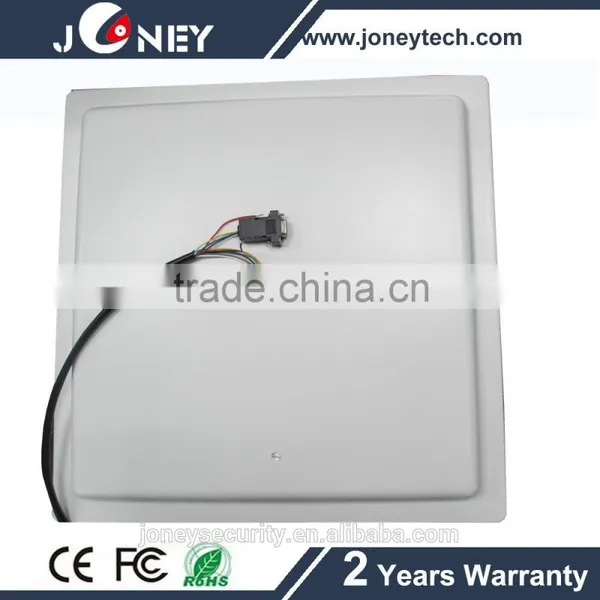

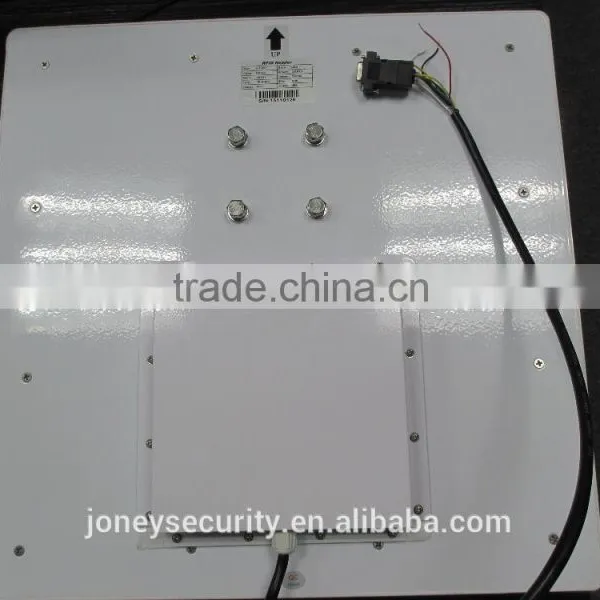

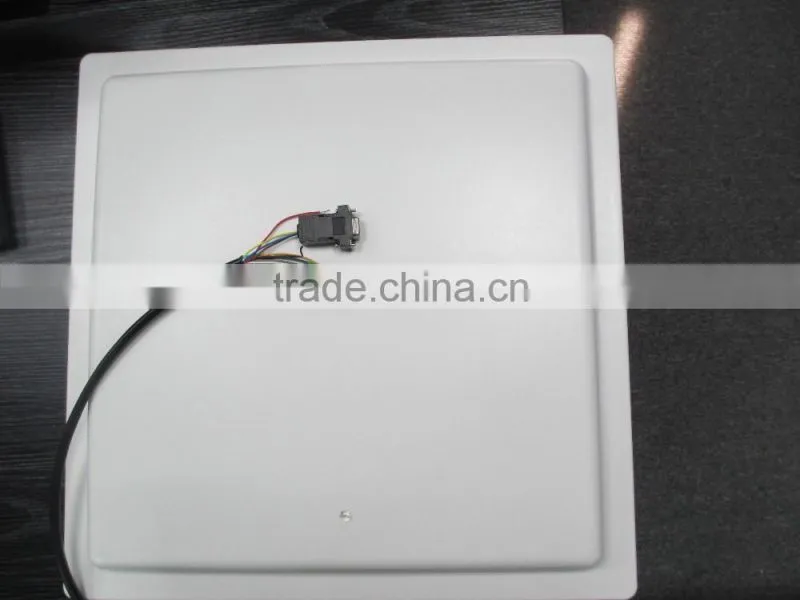

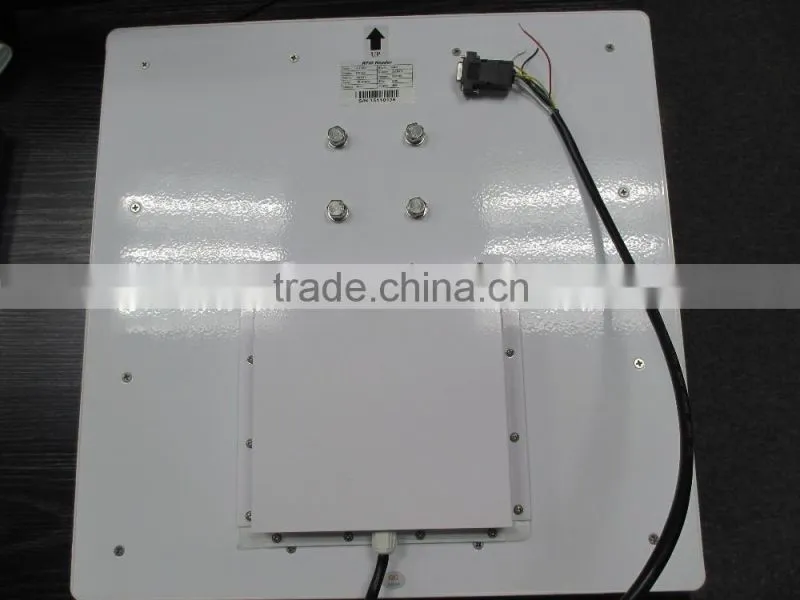

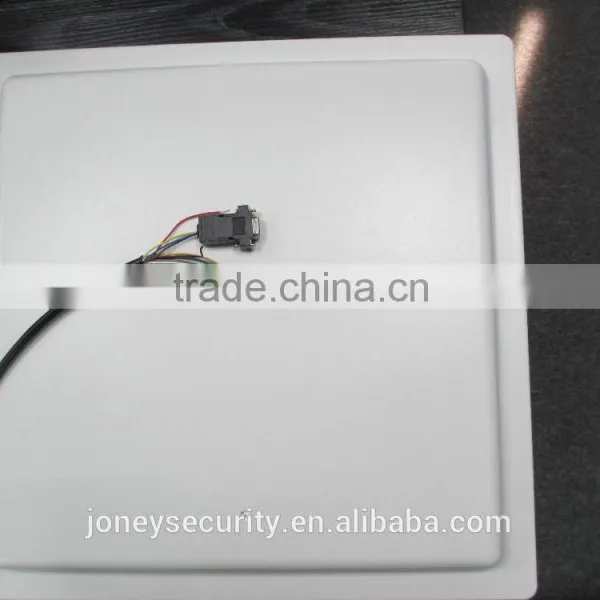

Passive 860Mhz~960MHz UHF RFID reader with long range 25m

Introduction: standalone RFID Reader uhf rfid reader

JYA-LR0704 is a long distance UHF RFID card reader. Its sensity range can reach 25 meters.

With 860mhz-960mhz frequency, it can allow fast recognition and reaction.

Features: standalone RFID Reader uhf rfid reader

> RS232/WG26/RS485/ RJ45( optional)

> 860Mhz~960MHz,

> Read range can up to 25meters

> Size: 450×450×120mm

Specification: standalone RFID Reader uhf rfid reader

Performance Index
Frequency range	860-960MHZ
FM mode	FHSS or fixed frequency, set by the software
RF output	30dBm adjustable;50Ω load

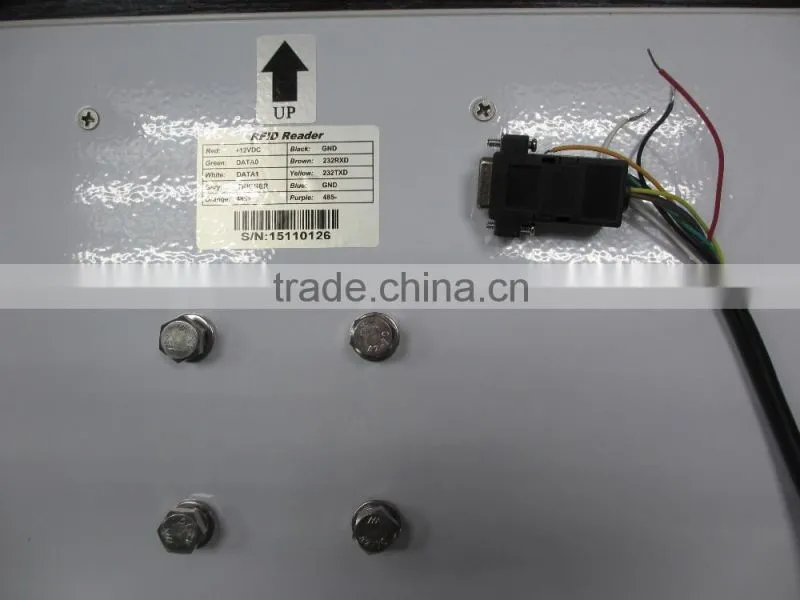

Communication interface	RS232,RS485,RJ45,WG26 optioanl
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
GP I/O interface	12 pin + 4 pin
Power dissipation	average<5W

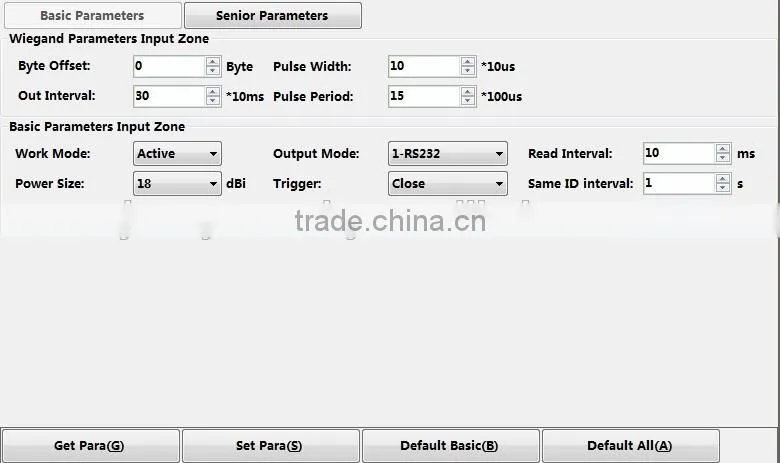

Application software	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	up to 25 meters
Air interface	EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B
Mechanical and Electrical Performance
Dimension	450450120mm(excluding mounting bracket and external wiring)
Power supply	12V DC
Weight	7.0Kg
Installation	Embrace rod mounting
Humidity	5%-95%, non-condensing
Protection grade	IEC IP65
Operation temperature	-20 ºC to +60 ºC
