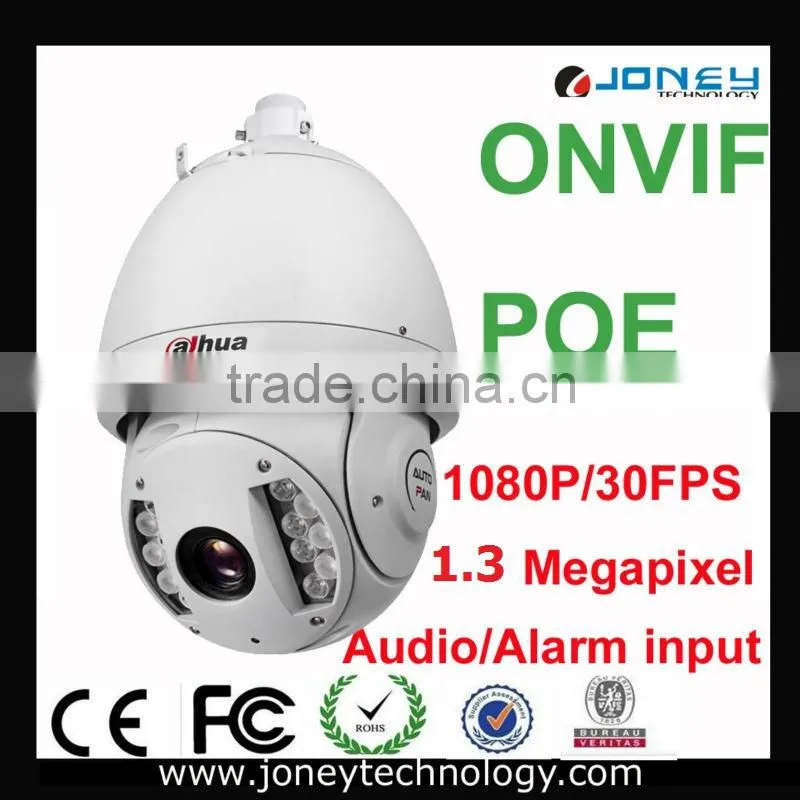

18x Zoom 1.3 Megapixel HD IR ONVIF Dahua ip Ptz Camera
Specifications
1.1.3M PTZ ip camera,18x zoom2.100 meter IR
3.ONVIF 2.0,POE built-in
4.audio input,alarm input
5.Micro SD card slot
> Powerful 18x optical zoom(4.3mm~129mm)
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@1080p resolution
> Defog, DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 7/2 alarm in/out, Micro SD memory
> Support intelligent 3D positioning with DH-SD protocol
> Max 240°/s pan speed, IP66, IR LEDs up to 100m
| Model | DH-SD6980C-HN | |
| Camera | ||
| Image Sensor | 1/3” Exmor CMOS | |
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux/F1.6, B/W: 0.005Lux/F1.6 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Max. IR LEDs Length | 100m | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.3mm ~ 129mm(30x Optical zoom) | |
| Angle of View | 58.9°~ 2.1° | |
| Close Focus Distance | 10mm ~ 1200mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| ONVIF | ONVIF Ver. 2.0 conformance | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| RS485 | 1 | |
| Alarm | 7/2 channel In/Out | |
| General | ||
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Dimensions | Φ229.6(mm) x 381.5(mm) | |
| Weight | 7.0kg | |
