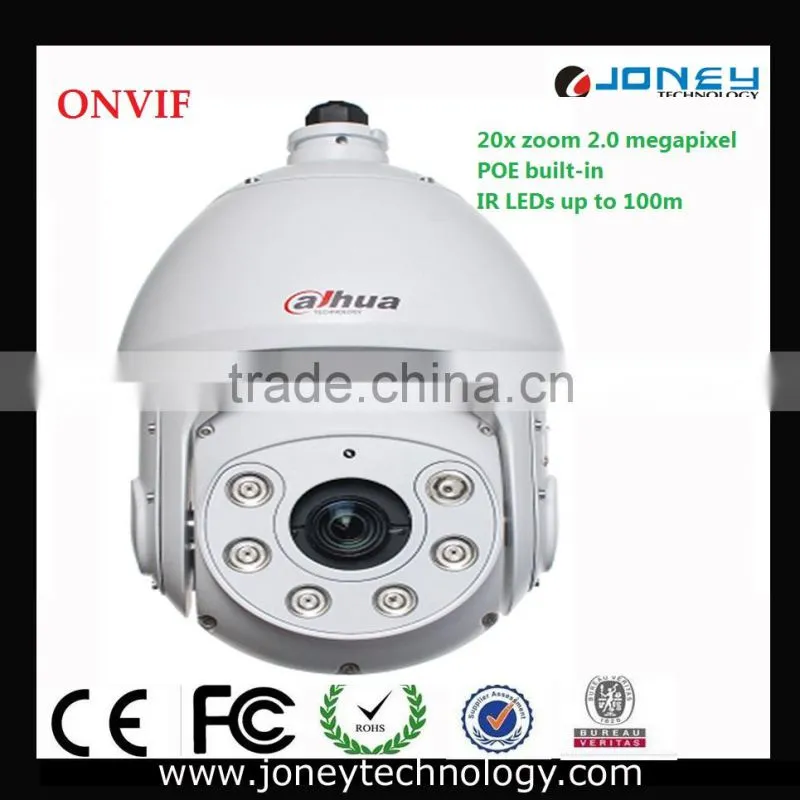

20x Zoom 2 Megapixel ONVIF Dahua ip Ptz Camera,POE Built-in

Name: 20x Zoom 2 Megapixel ONVIF Dahua ip Ptz Camera,POE Built-in
Brand: Dahua
SKU: 128348487
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Dahua

Model Number:

SD6982A-HN

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Dahua

Model Number SD6982A-HN

Type Digital Camera

Style Other, 1080p ip ptz camera

Sensor CMOS

Technology NetWork

Special Features Other, 100 meter IR distance

Specifications

1.1080P PTZ ip camera,20x zoom
2.100 meter IR
3.ONVIF 2.0,POE built-in
4.audio input,alarm input
5.Micro SD card slot

Product Description

Features:

> Powerful 20x optical zoom(4.7mm~94mm)

> H.264 & MJPEG dual-stream encoding

> Defog, DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> Built-in 7/2 alarm in/out, Micro SD memory

> Support intelligent 3D positioning with DH-SD protocol

> Max 240°/s pan speed, IP66, IR LEDs up to 100m

Specification:

Model		DH-SD6982A-HN
Camera
Image Sensor		1/3” Exmor CMOS
Effective Pixels		1944(H) x 1092(V), 2 Megapixels
Electronic Shutter Speed		1/1 ~ 1/30,000s
Min. Illumination		Color: 0.05Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio		More than 50dB
Video Output		BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Max. IR LEDs Length		100m
Backlight Compensation		BLC / HLC / DWDR (Digital WDR)
Privacy Masking		Up to 24 areas
Digital Zoom		16X
Lens
Focal Length		4.7mm ~ 94mm(20x Optical zoom)
Angle of View		58.9°~ 2.1°
Close Focus Distance		10mm ~ 1200mm
PTZ
Pan/Tilt Range		Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed		Pan: 240° /s; Tilt: 200° /s
PTZ Mode		5 Pattern, 8 Tour, Auto Pan, Auto Scan
Power up Action		Auto restore to previous PTZ and lens status after power failure
Video
Compression		H.264 / MJPEG
Resolution		1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression		G.711a / G.711u (32kbps) / PCM (128kbps)
Interface		1/1 channel In/Out
Network
Ethernet		RJ-45 (10/100Base-T)
ONVIF		ONVIF Ver. 2.0 conformance
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
RS485		1
Alarm		7/2 channel In/Out
General
Working Environment		-40ºC ~ 60ºC / Less than 90% RH
Dimensions		Φ229.6(mm) x 381.5(mm)
Weight		7.0kg
