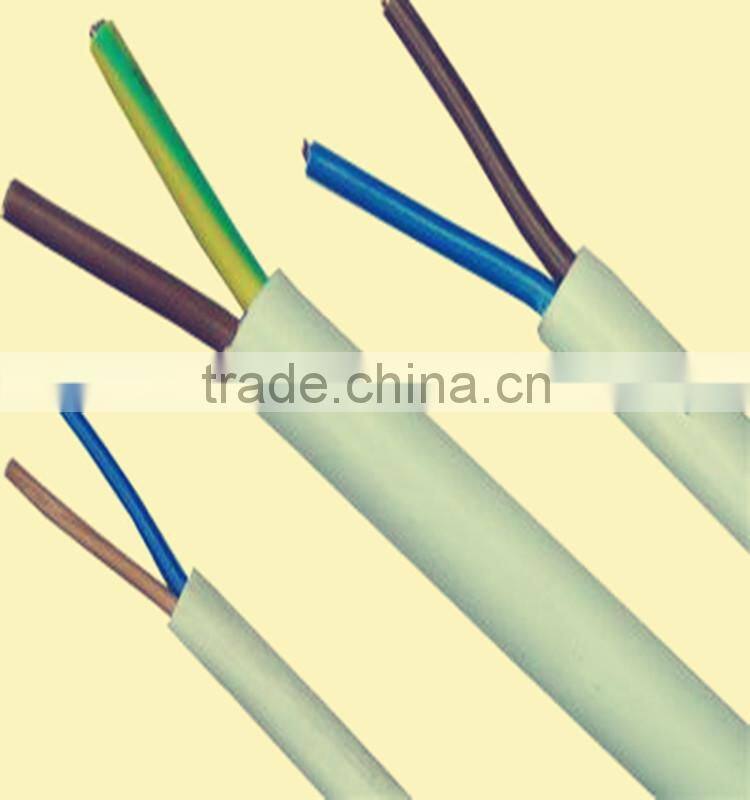

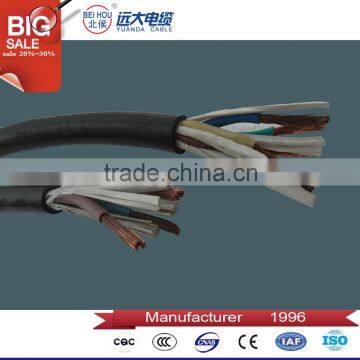

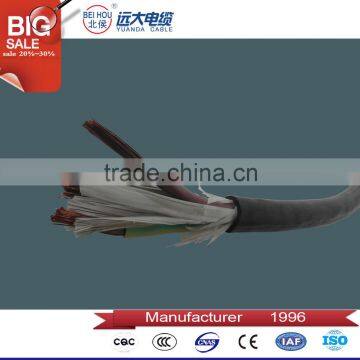

Help CenterMulticore Pvc Insulation Pvc Jacket Sheath Shielded Computer Instrument Electrical Cable
Related Products
-
RVVP Pvc Insulated Pvc Jacket Shielded Single Conductor Cable 2.5mm2US$ 0.23 - 5.69MOQ: 300 Meters -
Flexible Rvvp Cable/ Shielded Cable/ Rvvp Pvc Shielded Single Conductor Cable 0.5 Mm2US$ 0.12 - 1.98MOQ: 300 Meters
-
Multi-cores Copper Round 4*16mm Crane Cable Power Cable for CraneUS$ 0.11 - 1.88MOQ: 300 Meters
-
High Voltage Low Voltage Shielded Cable PVC Insulated PVC Jacket Electric Cable 16mm2US$ 0.12 - 6.33MOQ: 500 Meters
-
12 Core 2.5 Mm2 Unarmoured FRLS Cable With Pvc Insulation and JacketUS$ 0.12 - 5.58MOQ: 500 Meters
450/750V Low Voltage XLPE Insulated PVC/PE Sheath Copper Conductor Copper Braid Sheilding Control Power Cable
Product standard: This product is manufactured according to the standards of The Plastic Insulated Control Cable of GB9330, PVC Insulated Cable of Rated Voltage up to and Including 450/750V of IEC60227 and The Extruded Insulated Power Cable of Rated Voltage 1-30KV and Attachment and so on.
Application characteristics:
Rated Power-frequency Voltage Uo/U is to 450/750V or 0.6/1KV.
The permissible long-time highest working temperature of cable conductor is 70℃.
The permissible carve radius listed as follows:
1.Unarmored cable, not less than 6 times of outer diameter of cables;
2. Armored cable or copper-belt screened cable should not less than 2 times that of the outer diameter of cable.
3.The screened flexible cable should not less than 5 times of outer diameter of cable.
Table for control cable
Model |
Name |
Application scope |
||||||||
KVV |
copper conductor PVC insulated and sheathed control cable |
fixed places of indoors,cable channel and pipeline. |
||||||||
KVVP |
copper conductor PVC insulated and sheathed braiding screened control cable |
Laying in the fixed places with screened requirements |
||||||||
KVV22 |
copper conductor PVC insulated and sheathed steel-belt armored control cable |
Laying in the places which can bear larger mechanical external force, such as indoors, cable channel, pipeline and direct bury |
||||||||
KVVR |
copper conductor PVC insulated and sheathed flexible control cable |
Lay in indoors with mobile requirements |
||||||||
KVVRP |
copper conductor PVC insulated and sheathed braiding screened control cable |
Laying in doors with mobile requirements of flexibility and screening |
||||||||
Model |
Rated Voltage (V) |
The nominal section area (mm2) |
||||||||
0.5 |
0.75 |
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
|||
No. of conductors | ||||||||||
KVV |
450/750 |
|
2-37 |
2-14 |
2-10 |
|||||
KVV22 |
|
7-37 |
4-37 |
4-14 |
4-10 |
|||||
KVVR |
4-37 |
|
|
|||||||
KVVRP |
4-37 |
4-37 |
|
|
||||||
Plastic insulated flame retardant control cable
ModelRated Voltage(V) |
Nominal Section Area of Conductor(mm2) |
||||||||
0.5 |
0.75 |
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
||
No. of conductors | |||||||||
ZR-KVV |
450/750 |
- |
2-61 |
2-10 |
2-10 |
||||
ZR-KVVP2 |
- |
4-61 |
4-10 |
4-10 |
|||||
ZR-KVV22 |
- |
7-61 |
4-61 |
4-10 |
4-10 |
||||
ZR-KVV32 |
- |
19-61 |
7-61 |
4-10 |
4-10 |
||||
ZR-KVVR |
4-61 |
- |
- |
||||||

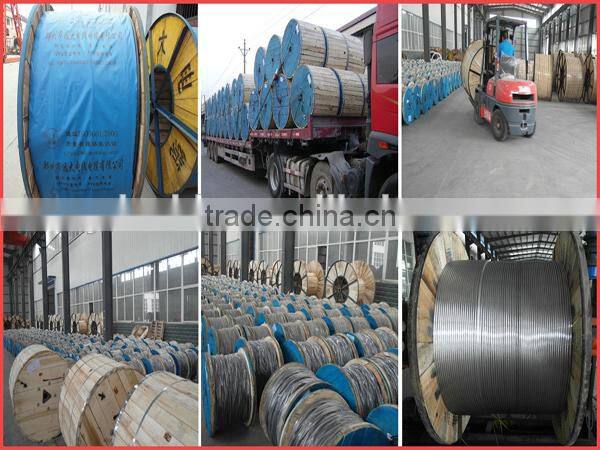

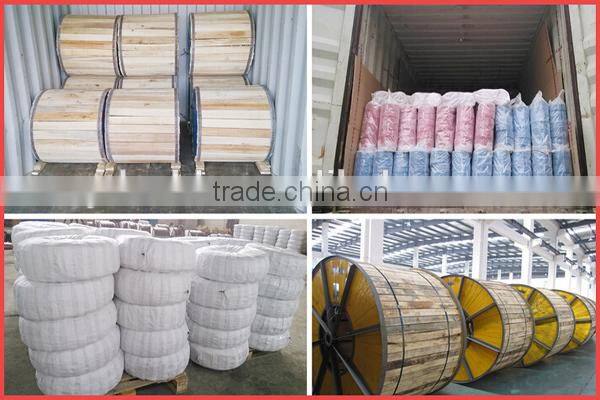

In rolls/coils, wooden drums, steel drums or steel-wooden drums or as per negotiation.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first". If you have any questions, please feel free to contact us through e-mail, phone, and trade message or other ways.
Company introduction
Zhengzhou Yuanda Cable Co., Ltd, as a super cable and wire manufacturer, specialized in professional wires and cables for construction, housing, lighting and so on. Our products has greatly recognized by domestic and overseas clients. Our company has introduced advanced production line and testing equipment, has professional engineers and skilled workers and can provide super services for each clients, which determine us to provide qualified goods and to be a reliable and professional supplier.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.

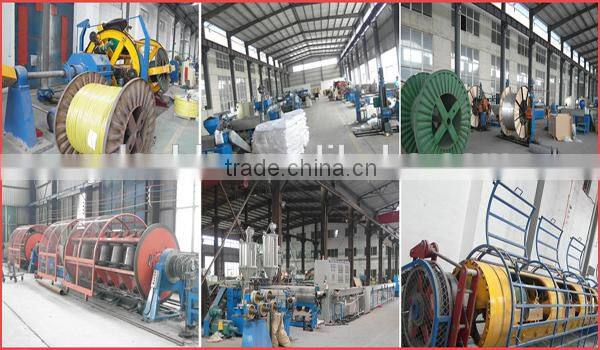

Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
