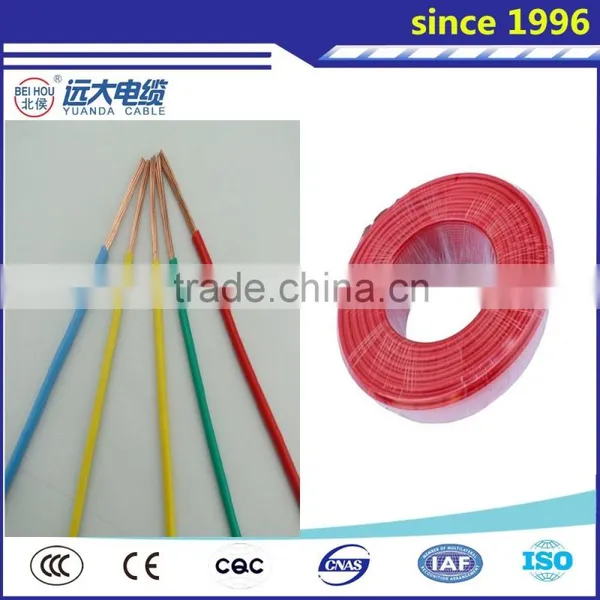

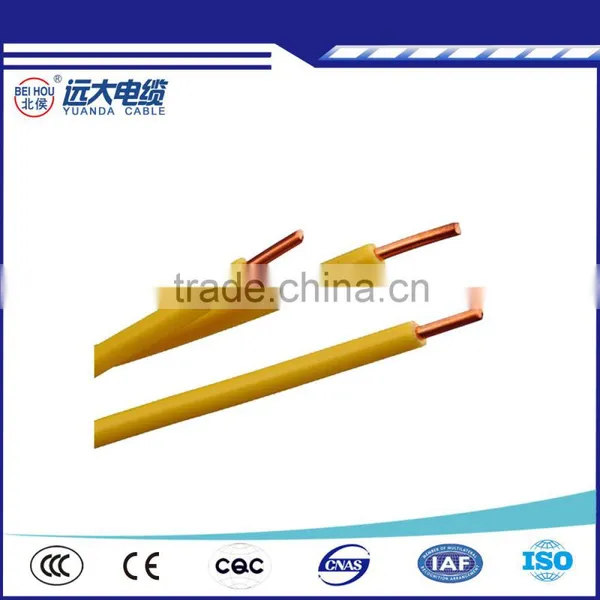

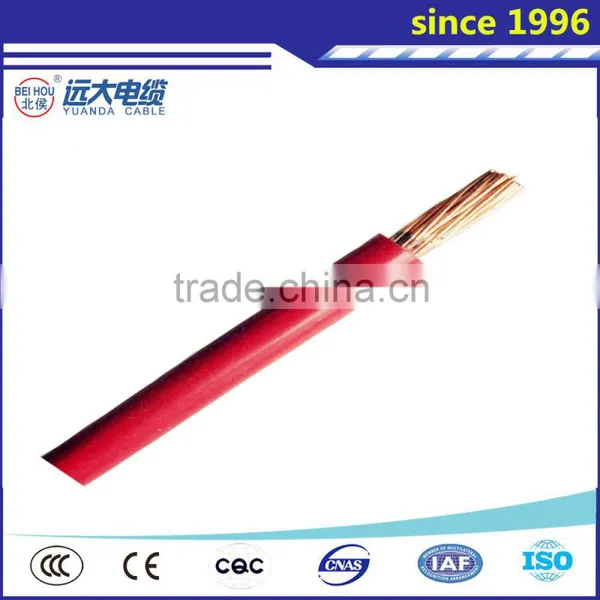

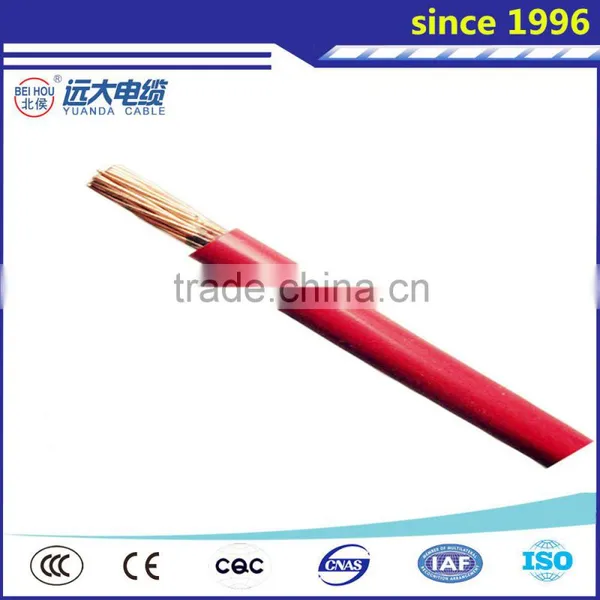

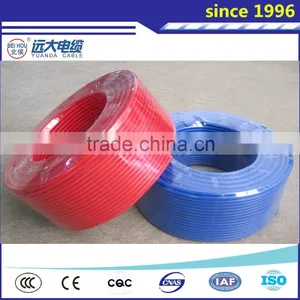

BV Cable Pure Copper Conductor PVC Insulated BV Electric Wire and Cable
60227 IEC 01 BV 450/750V Single Copper Conductor Unsheathed Wire
Application:
Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 450/750.
Introduction:
1. Product standard: GB5023.3-2008
2. Conductor:Single Bare Copper
3. PVC insulation
4. Rated voltage: 450/750V
5. The long-time working temperature should not beyond 70oC.
6. Adopt standard thickness, easy truncation.
|
Nominal Section (mm2) |
No./ Diameter (mm) |
Max. Overall Diameter (mm) |
Copper Weight (kg/100m) |
Plastic Weight (kg/100m) |
Total Weight (kg/100m) |
0.75² |
1/0.97 |
2.25 |
0.66 |
0.48 |
1.14 |
1² |
1/1.13 |
2.40 |
0.89 |
0.53 |
1.42 |
1.5² |
1/1.38 |
2.90 |
1.33 |
0.75 |
2.08 |
2.5² |
1/1.78 |
3.4 |
2.2 |
1.1 |
3.16 |
4² |
1/2.25 |
3.9 |
3.54 |
1.31 |
4.73 |
6² |
1/2.76 |
4.4 |
5.33 |
1.42 |
6.72 |
10² |
7/1.35 |
6.2 |
9.02 |
2.6 |
11.7 |
16² |
7/1.70 |
7.2 |
14.3 |
3.0 |
17.3 |
25² |
7/2.14 |
9.0 |
22.7 |
4.8 |
27.5 |
35² |
7/2.52 |
10.1 |
31.4 |
5.6 |
37 |
50² |
19/1.78 |
11.9 |
42.8 |
7.5 |
50.3 |
70² |
19/2.14 |
13.7 |
62 |
8.5 |
70.5 |
95² |
19/2.52 |
16.0 |
85.7 |
11.3 |
97 |
120² |
37/2.03 |
17.6 |
108.4 |
12.6 |
121 |
150² |
37/2.25 |
19.5 |
133.2 |
15.8 |
149 |
185² |
37/2.52 |
22 |
167.1 |
20.4 |
187.5 |
240² |
61/2.24 |
25 |
218.7 |
26.8 |
245.5 |
300² |
61/2.50 |
27.5 |
271.5 |
29.0 |
300.5 |
400² |
61/2.85 |
31 |
352.5 |
35.8 |
388.3 |

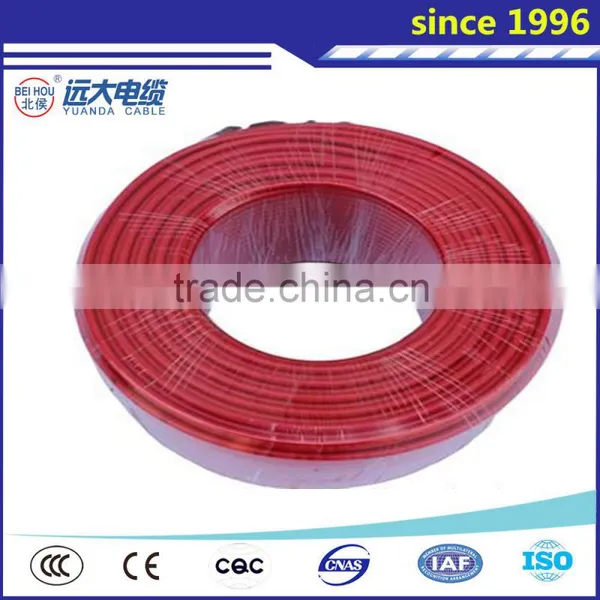

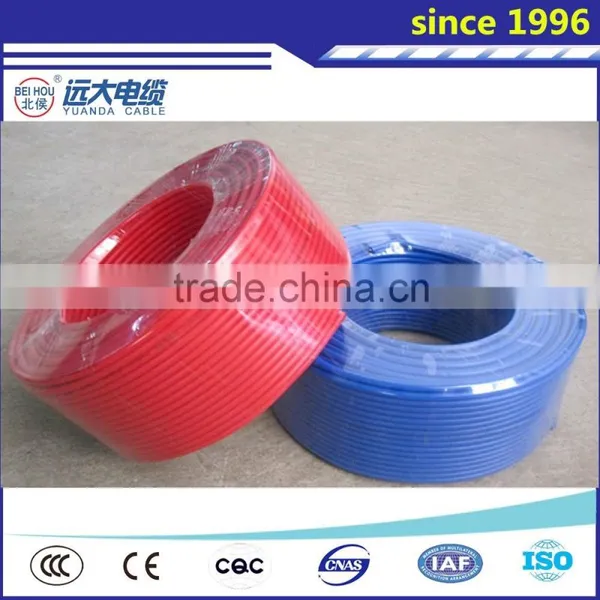

1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first".
If you have any questions, please feel free to contact us through email, phone, and trade message orother ways.
Zhengzhou Yuanda Cable Co., Ltd, as a super cable and wire manufacturer, specialized in professional wires and cables for construction, housing, lighting and so on. Our products has greatly recognized by domestic and overseas clients. Our company introduced advanced production line and testing equipment, has professional engineers and skilled workers and provide super services for each clients, which determine us to provide qualified goods and to be a reliable and professional supplier.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Our Principles
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Mutual benefit and cooperation
4)Honesty and profession
Yuanda cable products:
1. XLPE Power Cables
2. Building Wires & PVC Cables
3.Rubber &Welding Cables
4.Flame- Retardant/LSZH Cables

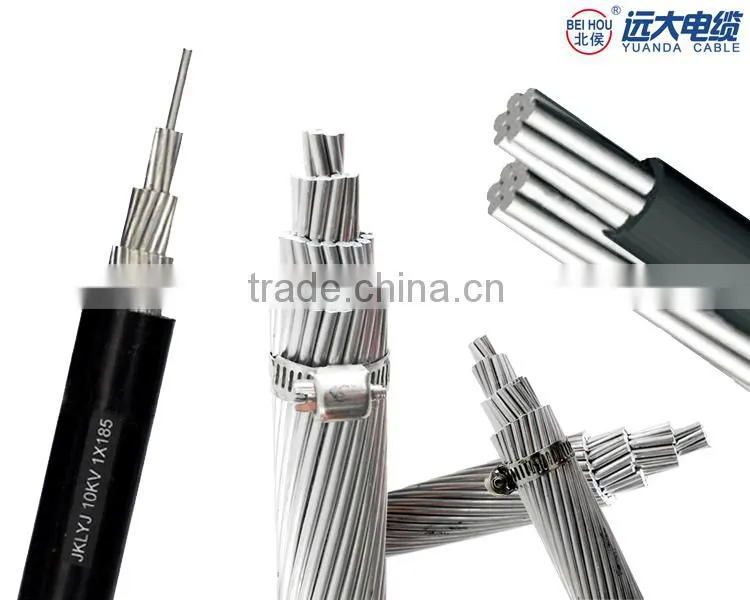

5.Aerial Bundled Cable (ABC)
6. Control Cables
7. Aerial Cables
8.CAT5E,CAT6 Network Cable
10.Rubber Cables
11.Plastic Insulated Cables
12. Telephone and TV lines
13. Sockets and Switches
14. Cables and Wires customized
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
