wireless ip camera with 10.1 inch monitor ccvt nvr kit

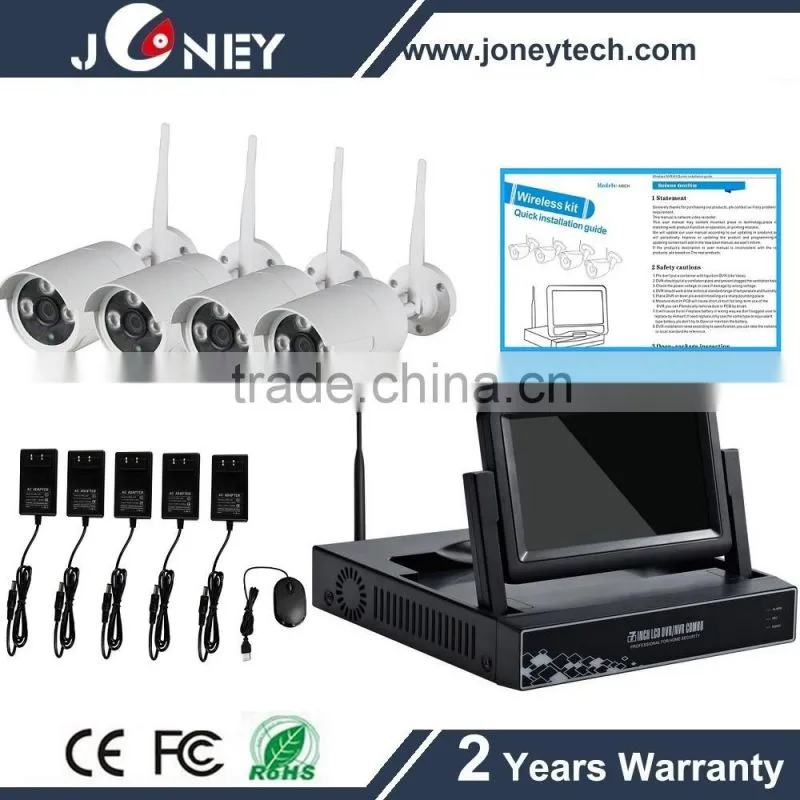

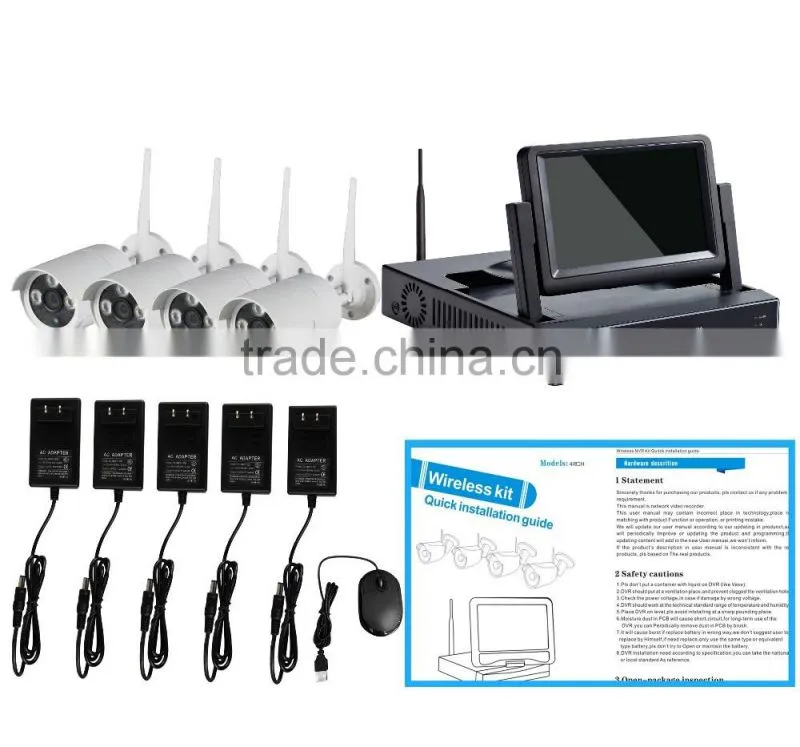

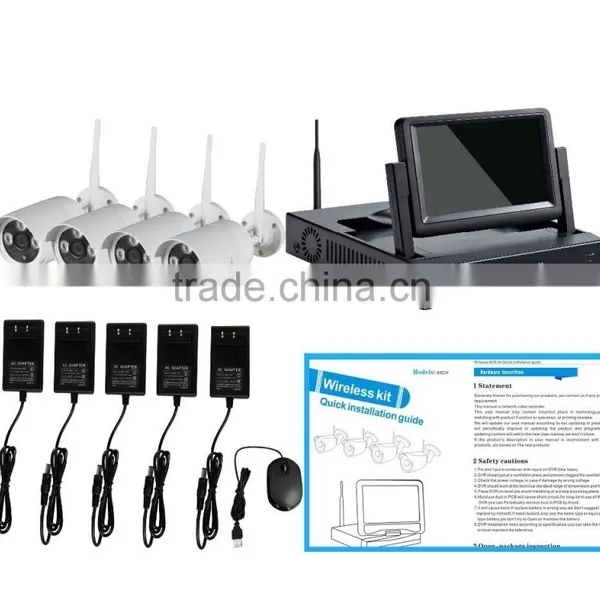

Item specification:

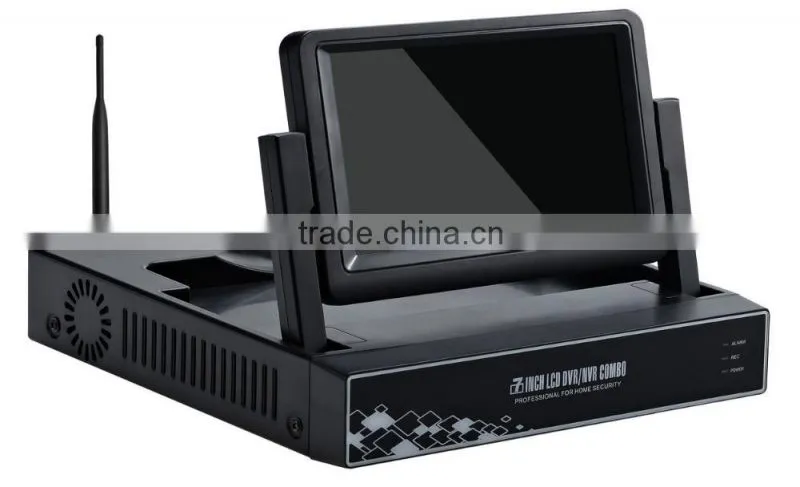

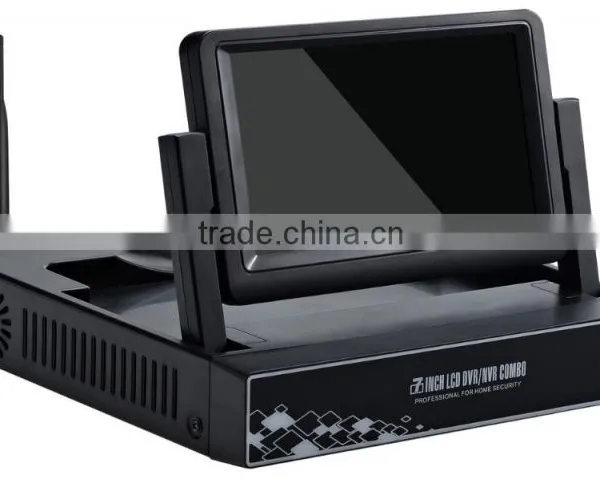

1. 1 x 4ch 7 inch monitor NVR
2. 4 x 960P IP Camera
3. 4 x 12V 1A Power Adapter
4. 1 x IR Remote controller
5. 1 x USB Mouse
Key Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5. Free DDNS :,no need DDNS setting
Model |
IPC-Kit907M-Wifi-1.3MP |
|
AV(audio/video)input |
Operating System |
Embedded Linux OS |
Network Video |
4CH |
|
Network video input broadbank |
20Mbps |
|
AUdio Bitrate |
64Kbps |
|
AV (audio/video) output |
HDMI input |
1ch,resolution:1024x768,1366x768, |
1440x900,1920x1080p | ||
VGA output |
1ch,resolution:1024x768,1366x768, |
|
1440x900,1920x1080p | ||
AV CODEC Specification |
Video Resolution |
D1/720P,960P |
synch-playback |
4CH |
|
Video Control |
Video/Capture mode |
Manual,Time,Motion,Alarm |
Playback mode |
Real time,Routine,Event |
|
Backup |
USB backup |
|
Alarm |
Alarm Input |
4ch (optional) |
Alarm Output |
1ch (optional) |
|
Hard Disk |
Type |
1*SATA interface |
Max Capacity |
4 TB at most for each |
|
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
USB Interface |
2 USB 2.0 |
|
Network Control |
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
DHCP (Automatically obtain an IP address), etc… | ||
Others |
Power Supply |
DC12V3A |
Power Consumption (W) |
≤5W(Without HDD) |
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
Working Humidity (%) RH |
10%~90% |
|
Screen Size |
7 inch (800x600) |
|
Display angle adjusted |
330 ° flexible adjust |
|
Size |
257mm(W)×210mm(V)×45mm(H) |
|
Weight(excluding HDD) |
≤1Kg |
|

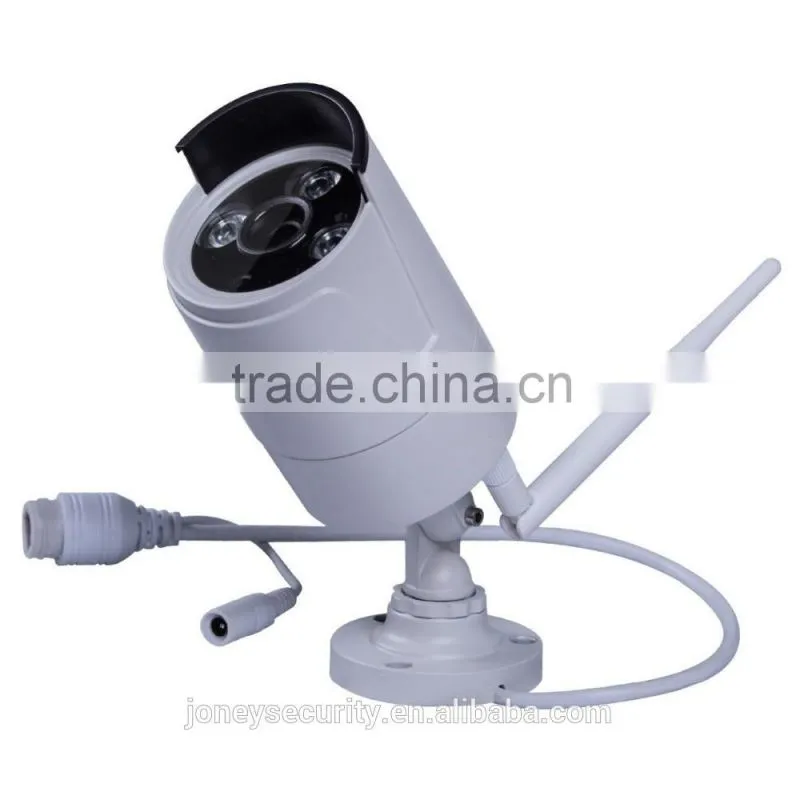

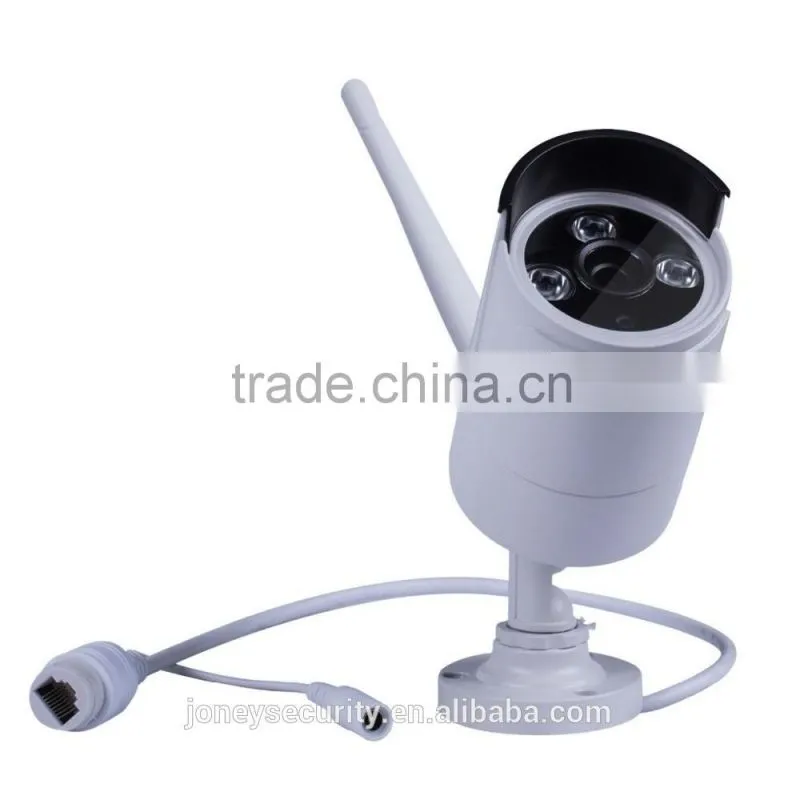

IPC Specification |
|
|
Details |
Sensor |
1/4” Progressive Scan Sensor |
Signal System |
PAL/NTSC |
|
Resolution |
1280 x 960 16 : 9 High Defination |
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
4mm |
|
OSD |
Date Time & Title |
|
White Balance |
Auto |
|
Day&Night |
Auto / Color / BW |
|
3D-DNR |
Auto |
|
Mirror/Flip |
On / Off |
|
Frame Specification |
Three Streaming at the Same Time: |
|
H.264 1280x960@30fps or below | ||
H.264 640x480@30fps or below | ||
S/N |
> 39.1 Db |
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
Power Input |
DC12V-1A |
|
Power consumption |
≤6W |
|
Size |
205(L)×70(W)×55 (H)mm |
|
Weight |
500g |
|
Level of Protection |
IP66 |
|
Welcome to visit our website for detailed information
www.joneysecurity.en.china.cn
Company trade terms:
OEM Service:
Your LOGO or company name can be acceptable for OEM orders! We don't charge any cost if your order quantity is 50pcs above each model.
Requested sticker and color box are without any charge!
OEM color box can be made if your order quantity reached 500pcs above!
Many colors optional and your requested color can be made for OEM order!
Deliery Time:Within 7 days after payment is checked
Quality warranty :2 years for free maintain.Whole life service for continue cooperating customers!
Payment term:by L/C,T/T,Western Union,Paypal
Price term:FOB shenzhen
Delivery term:by air,By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST)By Sea.
Please contact our Client service! Welcome your inquiry on many more models!
