1.3MP IP camera 4ch wifi all-in one NVR 7 inch monitor wireless nvr kit

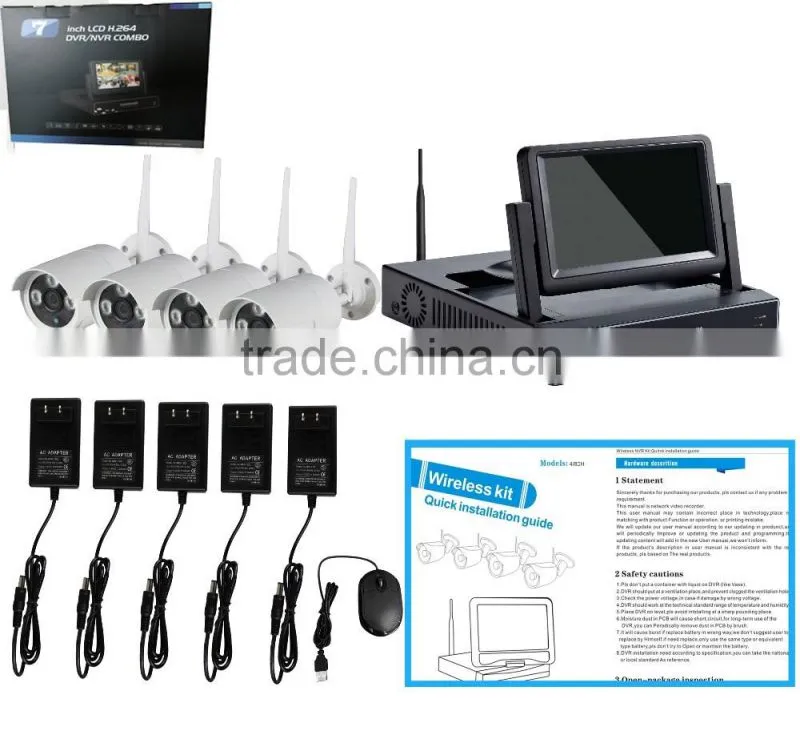

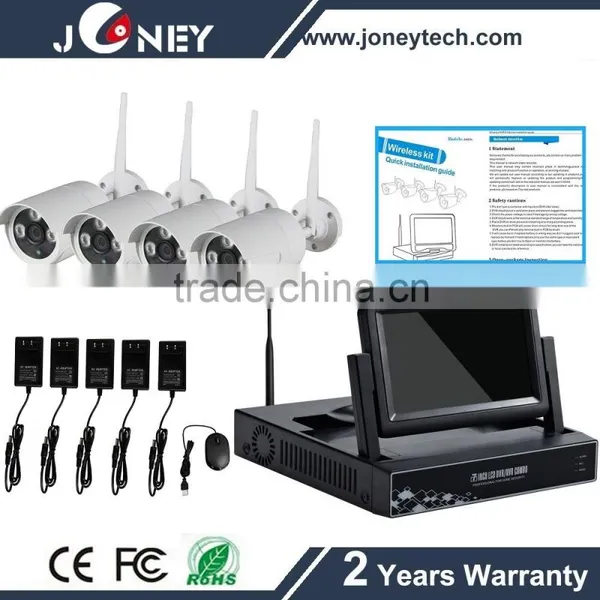

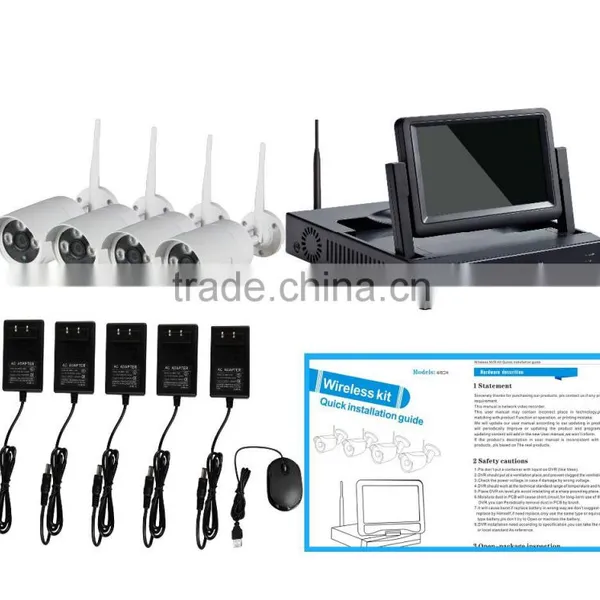

Item specification:

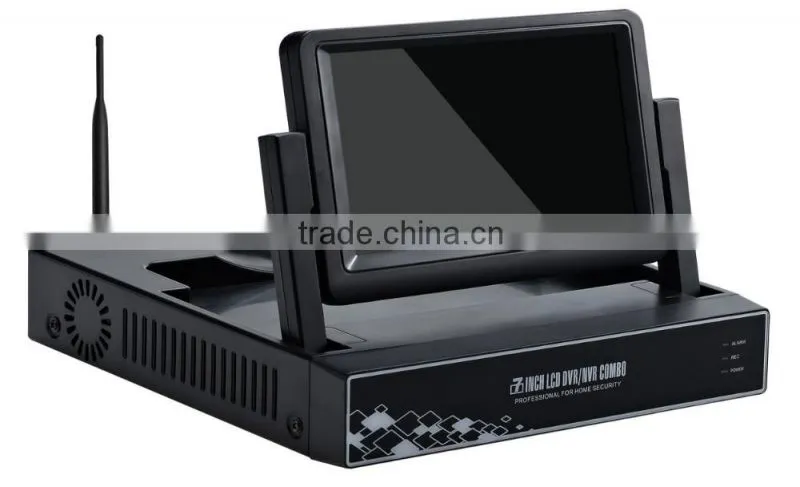

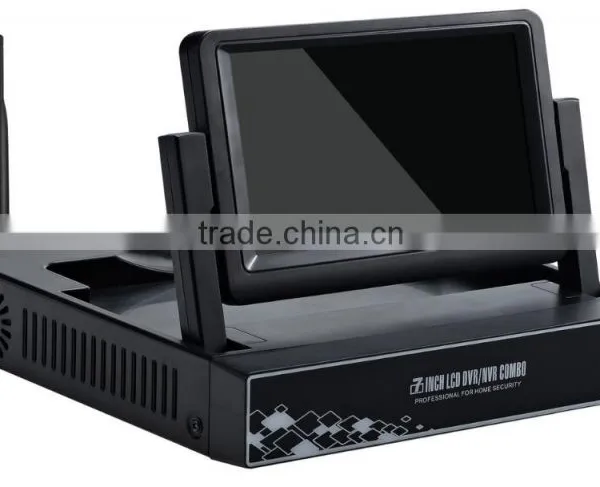

1. 1 x 4ch 7 inch monitor NVR
2. 4 x 960P IP Camera
3. 4 x 12V 1A Power Adapter
4. 1 x IR Remote controller
5. 1 x USB Mouse
Key Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5. Free DDNS :,no need DDNS setting
Model |
IPC-Kit907M-Wifi-1.3MP |
|
AV(audio/video)input |
Operating System |
Embedded Linux OS |
Network Video |
4CH |
|
Network video input broadbank |
20Mbps |
|
AUdio Bitrate |
64Kbps |
|
AV (audio/video) output |
HDMI input |
1ch,resolution:1024x768,1366x768, |
1440x900,1920x1080p | ||
VGA output |
1ch,resolution:1024x768,1366x768, |
|
1440x900,1920x1080p | ||
AV CODEC Specification |
Video Resolution |
D1/720P,960P |
synch-playback |
4CH |
|
Video Control |
Video/Capture mode |
Manual,Time,Motion,Alarm |
Playback mode |
Real time,Routine,Event |
|
Backup |
USB backup |
|
Alarm |
Alarm Input |
4ch (optional) |
Alarm Output |
1ch (optional) |
|
Hard Disk |
Type |
1*SATA interface |
Max Capacity |
4 TB at most for each |
|
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
USB Interface |
2 USB 2.0 |
|
Network Control |
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
DHCP (Automatically obtain an IP address), etc… | ||
Others |
Power Supply |
DC12V3A |
Power Consumption (W) |
≤5W(Without HDD) |
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
Working Humidity (%) RH |
10%~90% |
|
Screen Size |
7 inch (800x600) |
|
Display angle adjusted |
330 ° flexible adjust |
|
Size |
257mm(W)×210mm(V)×45mm(H) |
|
Weight(excluding HDD) |
≤1Kg |
|
IPC Specification |
|
|
Details |
Sensor |
1/4” Progressive Scan Sensor |
Signal System |
PAL/NTSC |
|
Resolution |
1280 x 960 16 : 9 High Defination |
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
4mm |
|
OSD |
Date Time & Title |
|
White Balance |
Auto |
|
Day&Night |
Auto / Color / BW |
|
3D-DNR |
Auto |
|
Mirror/Flip |
On / Off |
|
Frame Specification |
Three Streaming at the Same Time: |
|
H.264 1280x960@30fps or below | ||
H.264 640x480@30fps or below | ||
S/N |
> 39.1 Db |
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
Power Input |
DC12V-1A |
|
Power consumption |
≤6W |
|
Size |
205(L)×70(W)×55 (H)mm |
|
Weight |
500g |
|
Level of Protection |
IP66 |
|
Plug & Play Do not need Network cables !
Automatic connection with IP, save installation cost !
Mobile viewing, iphone&android APP:
