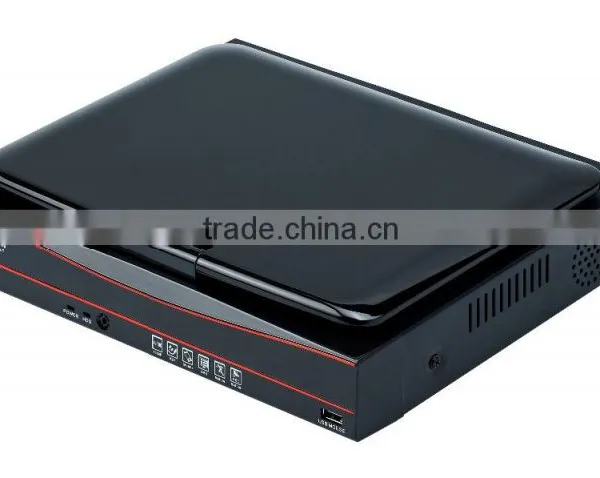

1.3MP IP camera 4ch wireless all in one NVR 10 inch monitor wifi nvr kit

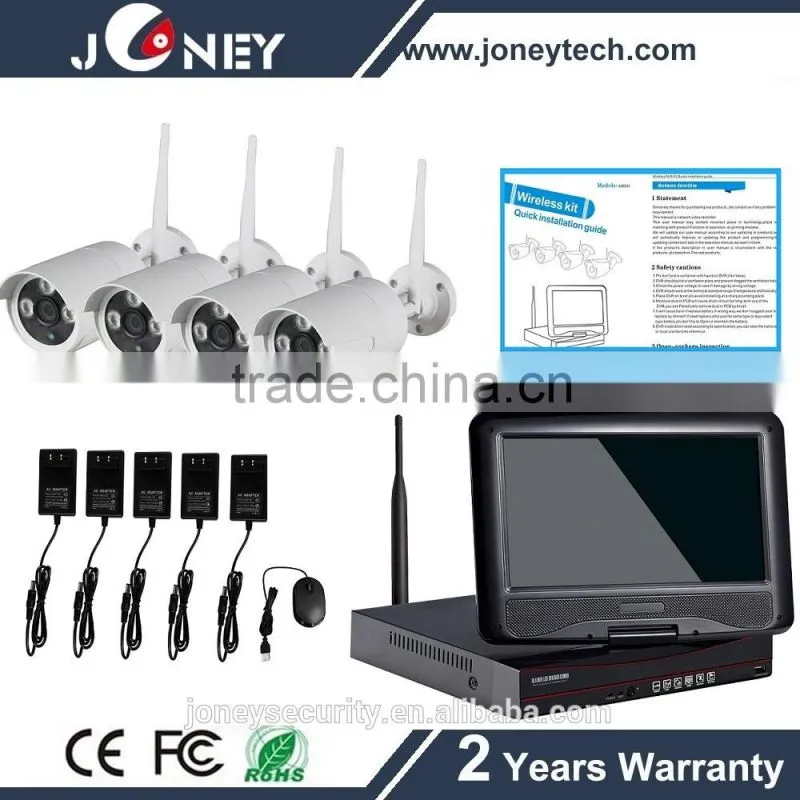

Item Specification: wifi NVR kit wireless NVR kit 4ch wifi NVR kit
1. 1 x 4ch 10.1 inch monitor NVR
2. 4 x 960P IP Camera
3. 4 x 12V 1A Power Adapter
4. 1 x IR Remote controller
5. 1 x USB Mouse
Features: wifi NVR kit wireless NVR kit 4ch wifi NVR kit
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5. Free DDNS :,no need DDNS setting
Specifications: wifi NVR kit wireless NVR kit 4ch wifi NVR kit
Model |
IPC-Kit910M-Wifi-1.3MP |
|
AV(audio/video)input |
Operating System |
Embedded Linux OS |
Network Video |
4CH |
|
Network video input |
20Mbps |
|
AUdio Bitrate |
64Kbps |
|
AV (audio/video) output |
HDMI input |
1ch,resolution:1024x768,1366x768, |
1440x900,1920x1080p | ||
VGA output |
1ch,resolution:1024x768,1366x768, |
|
1440x900,1920x1080p | ||
AV CODEC Specification |
Video Resolution |
D1/720P/960P |
synch-playback |
4CH |
|
Video Control |
Video/Capture mode |
Manual,Time,Motion,Alarm |
Playback mode |
Real time,Routine,Event |
|
Backup |
USB backup |
|
Alarm |
Alarm Input |
4ch (optional) |
Alarm Output |
1ch (optional) |
|
Hard Disk |
Type |
1*SATA interface |
Max Capacity |
4 TB at most for each |
|
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
USB Interface |
2 USB 2.0 |
|
Network Control |
Protocol |
UPnP (play&plug)/SMTP (email survice)/ PPPoE (dial-up) |
DHCP (Automatically obtain an IP address), etc… | ||
Others |
Power Supply |
DC12V3A |
Power Consumption (W) |
≤5W(Without HDD) |
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
Working Humidity (%) RH |
10%~90% |
|
Screen size |
10.1 inch (1024x768) |
|
Display angle adjusted degree |
270 ° flexible adjust |
|
Size |
257mm(W)×210mm(V)×45mm(H) |
|
Weight(excluding HDD) |
≤1Kg |
|
IPC Specification |
|
|
Details |
Sensor |
1/4” Progressive Scan Sensor |
Signal System |
PAL/NTSC |
|
Resolution |
1280 x 960 16 : 9 High Definition |
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
4mm |
|
OSD |
Date Time & Title |
|
White Balance |
Auto |
|
Day&Night |
Auto / Color / BW |
|
3D-DNR |
Auto |
|
Mirror/Flip |
On / Off |
|
Frame Specification |
Three Streaming at the Same Time: |
|
H.264 1280x960@30fps or below | ||
H.264 640x480@30fps or below | ||
S/N |
> 39.1 Db |
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
Power Input |
DC12V-1A |
|
Power consumption |
≤6W |
|
Size |
205(L)×70(W)×55 (H)mm |
|
Weight |
500g |
|
Level of Protection |
IP66 |
|

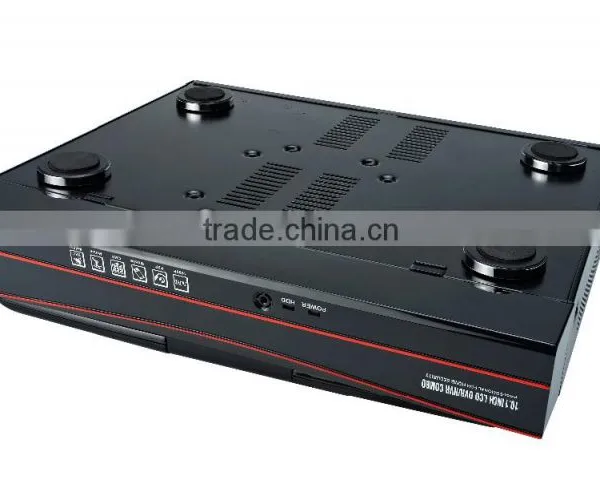

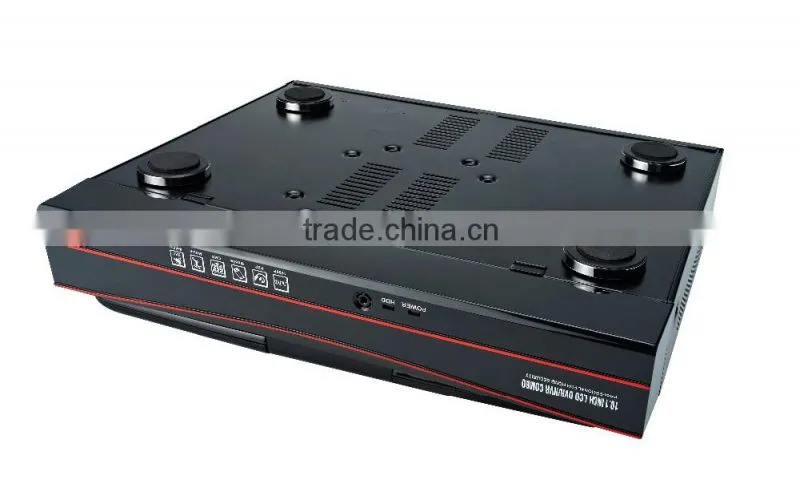

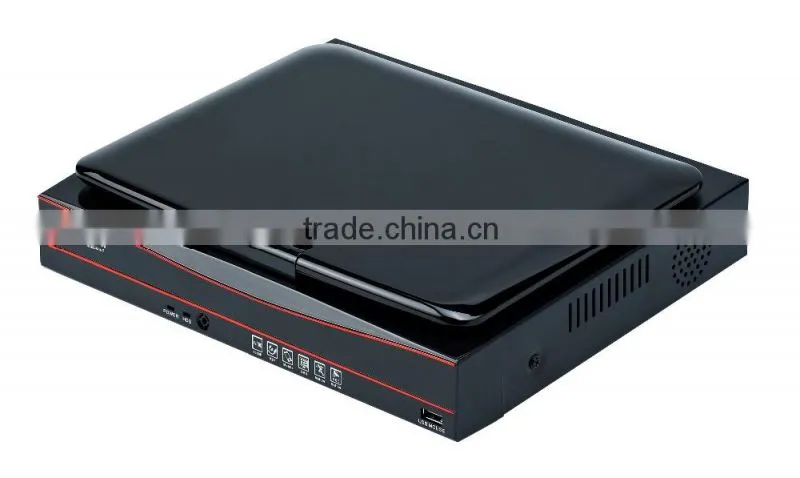

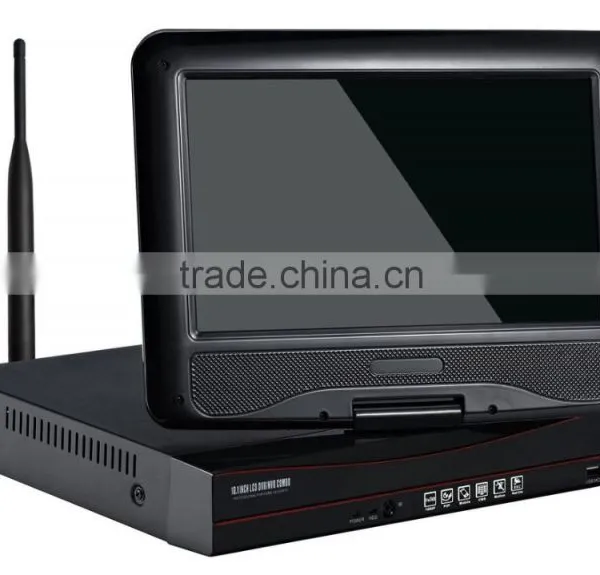

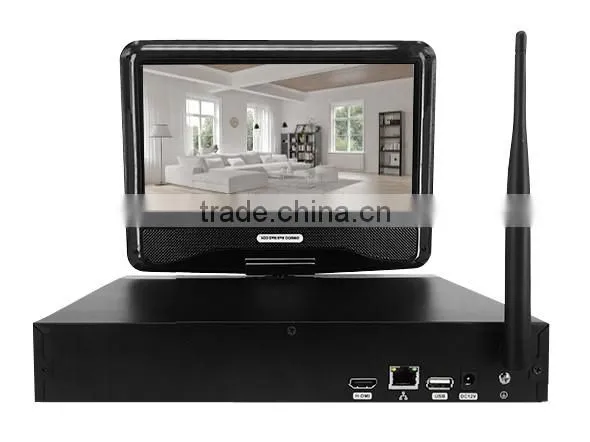

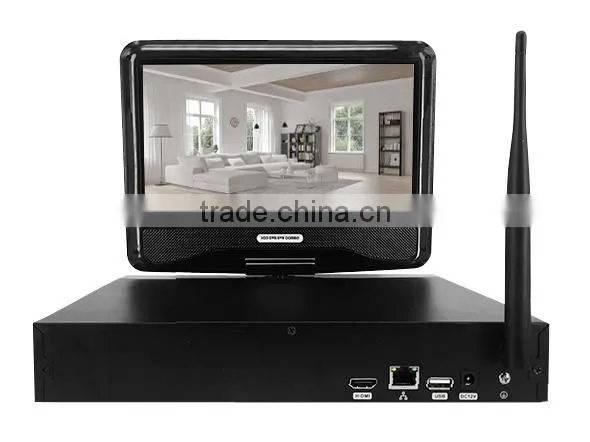

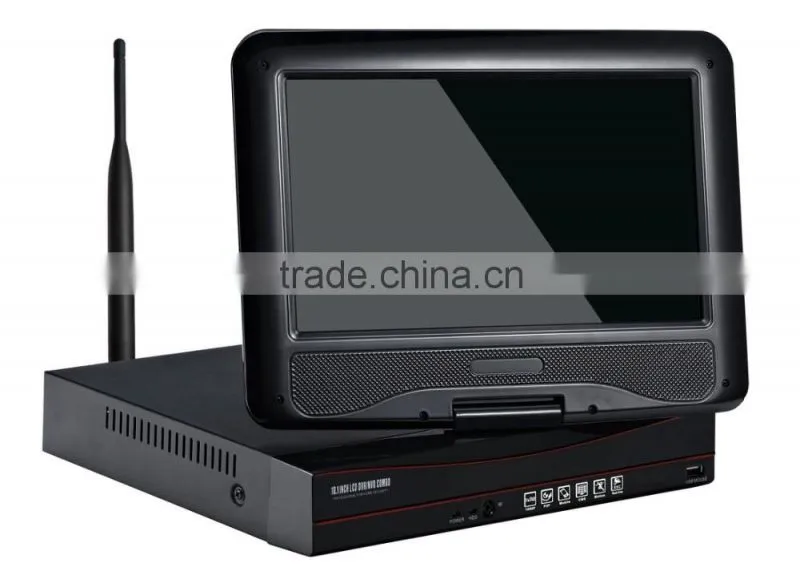

Details image: wifi NVR kit wireless NVR kit 4ch wifi NVR kit
Plug & Play Do not need Network cables !
Automatic connection with IP, save installation cost !
Mobile viewing, iphone&android APP:
