Applications
The cables ard designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
Manufacturing standards
ASTM ICEA BS IEC NFC GB AS/NZS etc.
Operating features
Rated voltage Uo/U is 0.6/1Kv
Max.Continuous permissive working temperature of conductor: PVC insulation should be not more than 70℃ ,and XPLE insulation should be not more than 90℃.
The installation temperature of cable should be not less than -20℃
When overall diameter of cable(D)is less than 25mm,permissive bending radius of cable should be not less than 4D.When overall diameter(D)of cable is equal to and above 25mm,permissive bending radius of cable should be not less than 6D.
Models, diagrams
Description |
Short name |
Chinese type |
Copper core PE insulated aerial cable |
Covered line wire |
JKY |
Copper core XLPE insulated aerial cable |
JKYJ |
|
Aluminium core PE insulated aerial cable |
JKLY |
|
Aluminium core XLPE insulated aerial cable |
JKLYJ |
|
Aluminium alloy core PE insulated aerial cable |
JKLHY |
|
Aluminium alloy core XLPE insulated aerial cable |
JKLHYJ |
Packaging&Shipping:
Packaging&Delivery:
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.

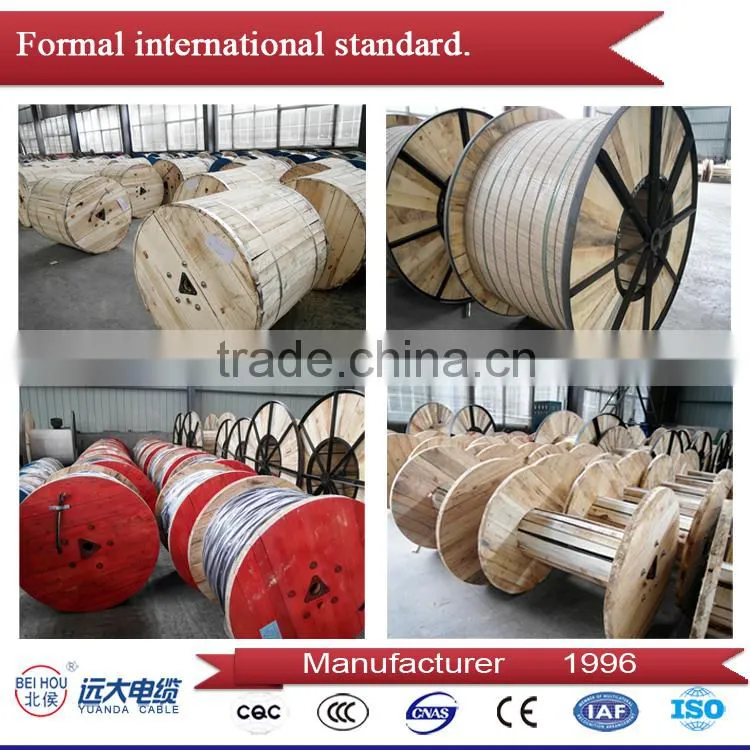

2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).

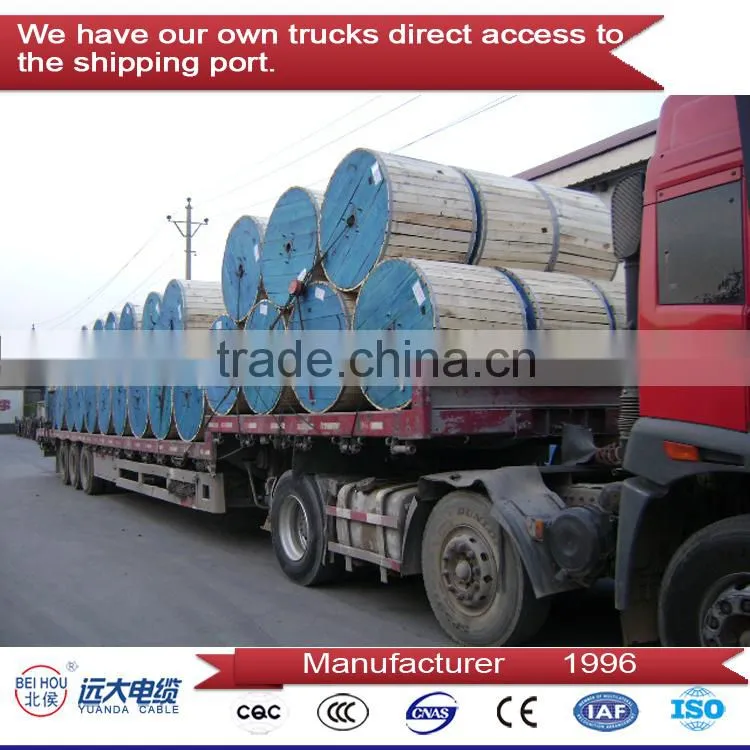

2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Factory Pictures:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
FAQ
1.Are you a manufacturer or trading company?
We are a manufacturer.
2. What's your payment terms?
T/T ,L/C ,D/P ,D/A ,OA .
3. What's your delivery time?
Usually we will arrange the shipment in 7 -15 days.
4. How about the validity of the products?
Gunranteed 3 years.
5. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
6. What is loading port?
Usually is Shanghai,Qingdao or Tianjin.
