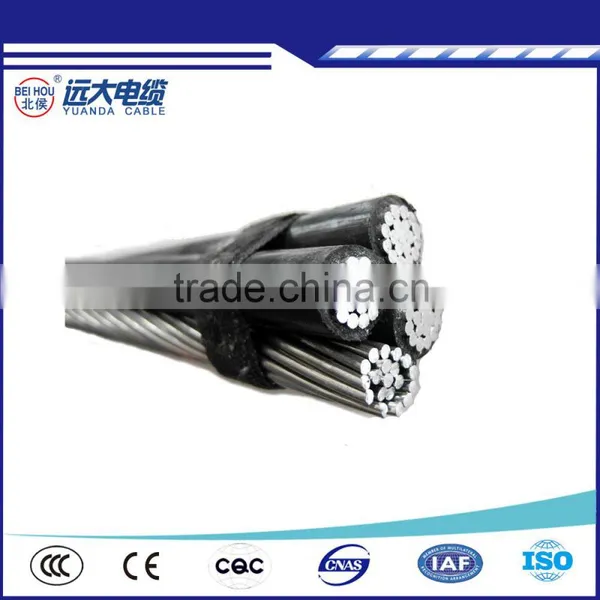

10 KV aerial bunch cable 95mm2 aerial bundle cable with XLPE insulation

10 KV aerial bunch cable 95mm2 aerial bundle cable with XLPE insulation

Application of 33kV abc cable

A new type of aerial cable for power transmitting. It is extensively used inoverhead power
transmission line.

abc cable

Type:
Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop from 1kv abc cable to 33kv abc cable

Duplex Service Drop:
Application: to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volt or lower and the Max. conductor temperature is 75oC.

Triplex Service Drop:
Application: To supply power from the utility's lines to the consumers' service head. For service at 600 volts or less(phase to phase ) that the conductor temperature is Max. 70oC for PE insulation and Max. 90 oC for XLPE insulation.

Quadruplex Service Drop:
Application: To supply 3 phase power, usually from a pole-mounted transformer to the user's service head where the connection to the service entrance
cable should be made . To be used at voltages of 600 volts or less phase to phase that the temperature of conductor should not exceed 75oC for PE insulation material and 90oC for XLPE insulation.

Structure:
Conductors are concentrically stranded, compressed 1350 -H19 aluminum,insulated with either PE or XLPE. Neutral messengers is concentrically stranded 6201, AAC, or ACSR. Each conductor is manufactured with an extruded ridge for phase identification.

AERIAL BUNDlED CABLE
DUPLEX SERVICE DROP-ALUMINUM CONDUCTOR AS FOLLOWING;

Standard
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.

2).Treated wooden/steel-wooden drums for big diameter cables.

3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

Packaging: In coils, wooden drums, steel drums or steel-wooden drums.

Shipping:

1.Sample will be mailed by DHL, UPS,

FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).

2.The big quantity will ship by sea.

1.We are factory and raw materials are served by our company.

2.OEM and ODM are available based on official legal authorization.

3.Strict quality control system.

4. Faster lead time than our competitors.

5. Excellent quality with reasonable price.

6. Strong technical support.

7. Providing solutions for your particular requirements.

8. Free samples are available with economic express fees.

Zhengzhou Yuanda Cable Co., Ltd

Company introduction

Zhengzhou Yuanda Cable Co., Ltd, as a super cable and wire manufacturer, specialized in professional wires and cables for construction, housing, lighting and so on. Our products has greatly recognized by domestic and overseas clients.

Our company introduced advanced production line and testing equipment, has professional engineers and skilled workers and provide the first class services for each clients, which determine us to provide qualified goods and to be a reliable and professional supplier.

Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.

 Fixed assets: USD 200 million.

 No.of stuff : over 1,000.

 Annual output: 100,000 tons.

 Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE

 CB and so on.

Our Principles

1)Quality first, customer first, safety first

2)Better service, faster delivery

3)Mutual benefit and cooperation

4)Honesty and profession

1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.

3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.

4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.

5. Which payment terms do you accept?

A: The payment term varies with different price level and total value of every contract.

Common terms are as follows:

a.100% TT advance for small amount orders.

b. T/T 30% deposit, balance payment negotiable accordingly.

6. Have you ever supplied cables to our country?

A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.

7. What is your MOQ?

A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us  directly for detail information if you have any specific cable requirement.

We could producing according to the customers' requirements.Welcome your request for any quotations!
