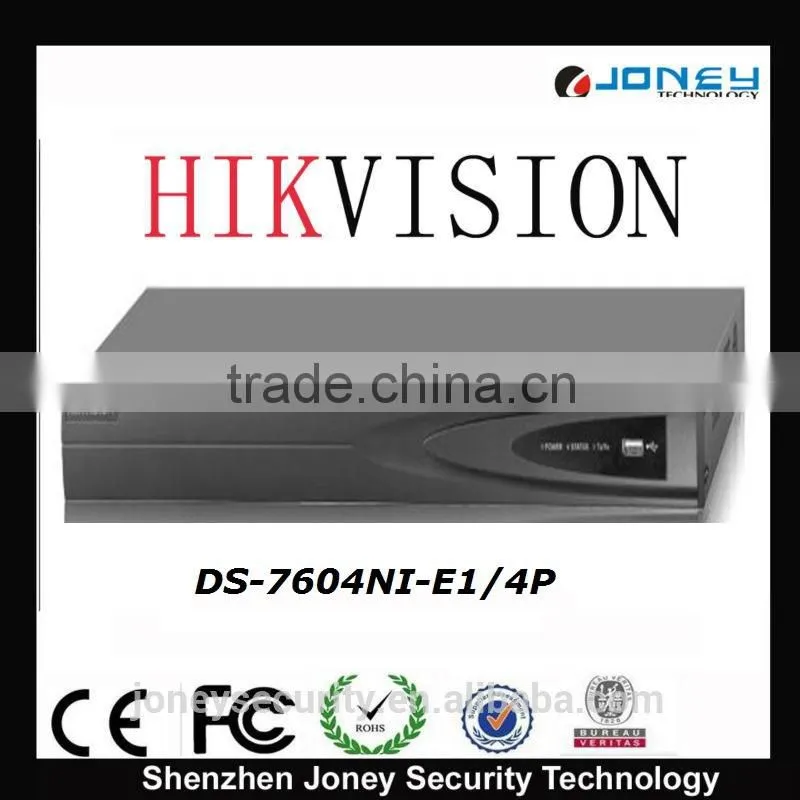

Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-1
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-2
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-3
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-4
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-5
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder thumbnail-6
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-1
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-2
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-3
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-4
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-5
Hikvision Poe Nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder photo-6
US$ 220 - 230 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-7604NI-E1/4P
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-7604NI-E1/4P

Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder



     1. Key Features

        • Third-party network cameras supported
        • Up to 5 Megapixels resolution recording
        • HDMI and VGA output at up to 1920×1080P resolution
        • HDD quota and group management
        • 4/8 independent PoE network interfaces





      2. Specification:

  • DS-7604NI-E1/4P

Video/Audio Input

IP Video Input:

4-ch

Two-way Audio:

1-ch RCA(2.0Vp-p, 1kΩ)



Video/Audio Output

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz

HDMI Output:

1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz,

1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz

Recording resolution:

5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF

 / QCIF

Audio Output:

1-ch RCA(Linear, 1kΩ)

Playback Resolution:

5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF

 / QCIF

Synchronous Playback:

4-ch



Hard Disk Driver

Interface Type:

2 SATA Interfaces

Capacity:

Up to 4TB capacity for each disk



External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet Interface,
4 independent 100Mbps PoE Ethernet interfaces

USB Interface:

2 USB 2.0 Interfaces

Serial Interface:

1 RS-485 interface (Reserved)



General

Power Supply:

100~240VAC, 47~63Hz, 3A

Consumption:

≤ 15 W (without hard disk)

Working Temperature:

-10 °C ~ +55 °C

Working Humidity:

10%~90%

Chassis:

19-inch rack-mounted 1U chassis

Dimensions:

445 × 290 × 45mm (W x D x H)

Weight:

≤ 2 Kg (without hard disk)





Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder
Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR RecorderHikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR RecorderHikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder

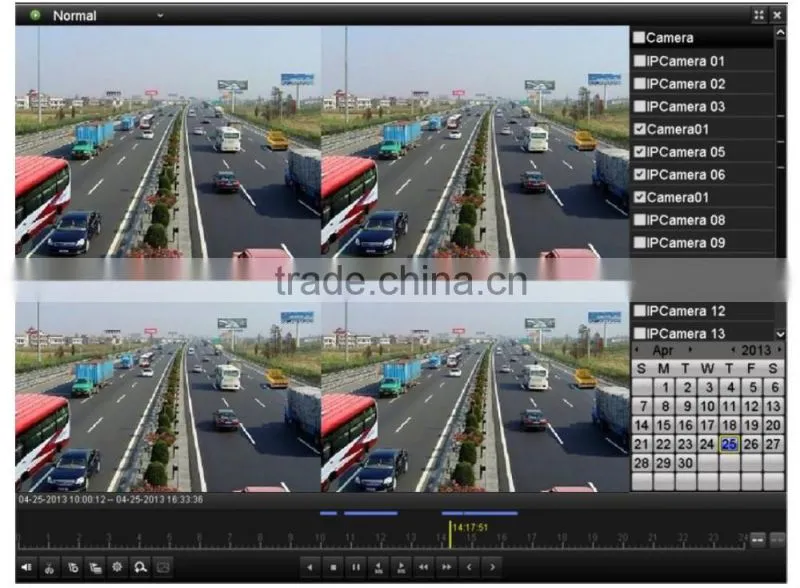

GUI INTERFACE
Hikvision poe nvr DS-7604NI-E1/4P, 1U Hikvision NVR Recorder


Network Functions
1 self-adaptive 10M/100M/1000M network interface.
Up to 8 independent PoE network interfaces for DS-7600NI-SE/P series, and 4 independent PoE
network interfaces for DS-7600NI-VP series.
Up to 8 independent network interfaces with built-in switch function are provided for
DS-7600NI-SE/N series.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.

TCP, UDP and RTP for unicast.
Auto/Manual port mapping by UPnP.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback via RTSP.
Support accessing by the platform via ONVIF.
Remote search, playback, download, locking and unlocking of the record files, and support
downloading files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of mouse.
Remote HDD initializing and program upgrading.
Remote system restart and shutdown. User Manual of DS-7600NI Series NVR
S-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host.
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZ control.
two-way audio and voice broadcasting.
Embedded WEB server.

Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.







Our Service

1. Fast and professional reply within 24 hours.

2. Fast delivery within 5 working days after payment is done.

3. Fast shipment by DHL, Fedex, EMS, TNT, UPS or other way customers needed.

4. Good performance with 2 years of warranty and lifetime technical support.

5. OEM or customized logo or print is available, and the print fee is free if the order amounts to 50pcs.

6. Promotion price for new customers, more discount for old customers.

7. Special discount and service for our distributor.

8. Convenient multiple way of payment: Paypal, T/T, Western Union.
