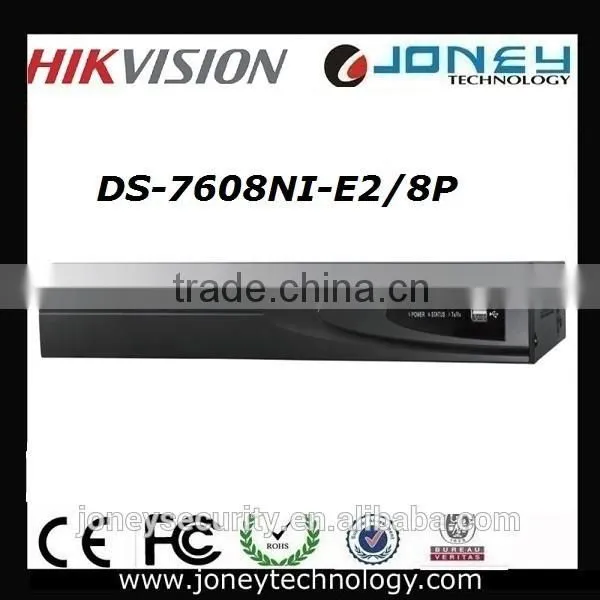

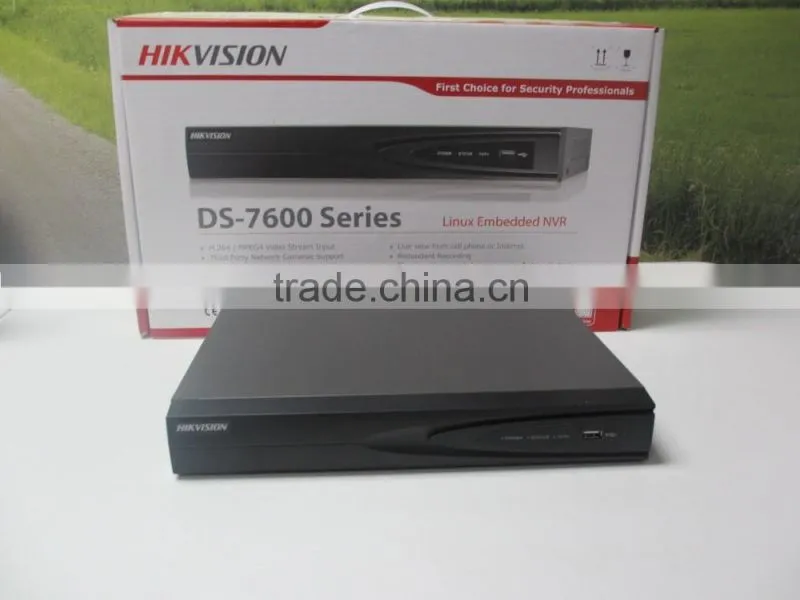

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-1
DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-2
DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-3
DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-4

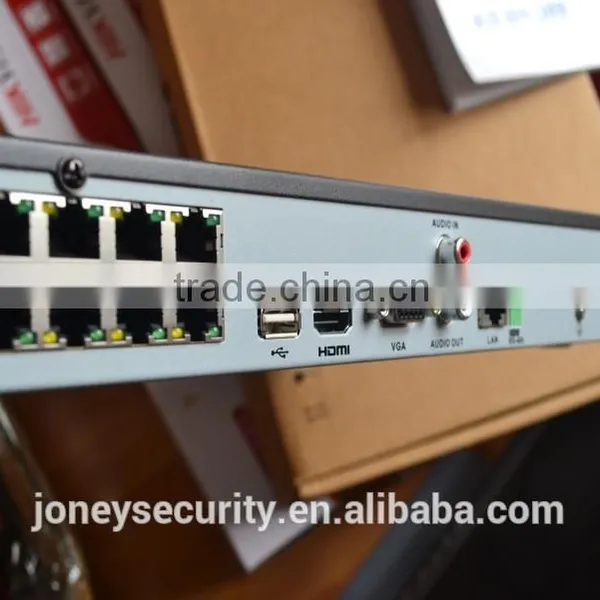

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-5

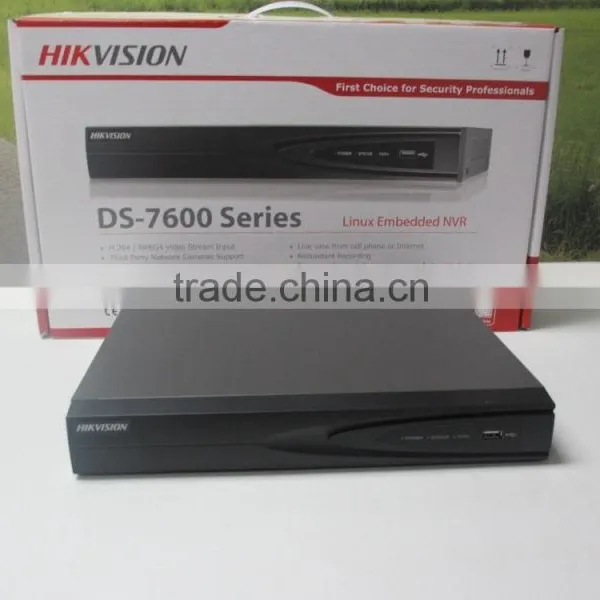

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR photo-6
US$ 250 - 270 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-7608NI-E2/8P Hikvision NVR
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-7608NI-E2/8P Hikvision NVR
Product Description

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR



Key Features:  hikvision 8ch poe nvr

Third-party network cameras supported

• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 8 independent PoE network interfaces

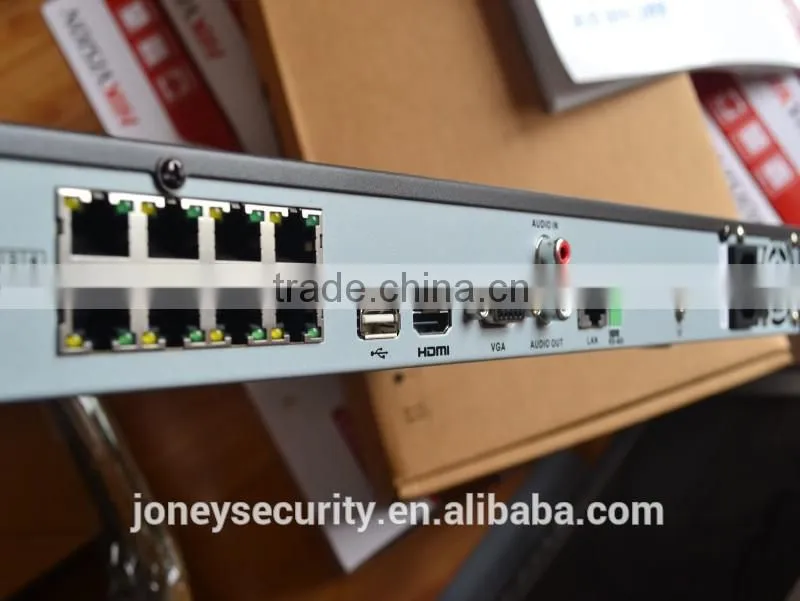

DS-7608NI-E2/8P 8CH 8 POE Ports CCTV NVR Hikvision NVR



1.LAN Network Interface
2.RS-485 Interface
3.100~240VAC Power Input
4.Power Switch
5.USB Interface
6.GND
7.HDMI Interface
8.VGA Output
9.Audio In
10.Audio Out
11.Network Interfaces with PoE function





DS-7608NI-E2/8P  hikvision 8ch poe nvr

Video/Audio Input
IP Video Input:  8-ch
Two-way Audio:  1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
VGA Output:  1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
HDMI Output:  1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Recording resolution:  5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Audio Output:  1-ch RCA(Linear, 1kΩ)
Playback Resolution:  5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF
Synchronous Playback:  8-ch
Hard Disk Driver
Interface Type:  2 SATA Interfaces
Capacity:  Up to 4TB capacity for each disk
External Interface
Network Interface:  1 RJ45 10M/100M/1000M adaptive Ethernet Interface,
8 independent 100Mbps PoE Ethernet interfaces
USB Interface:  2 USB 2.0 Interfaces
Serial Interface:  1 RS-485 interface (Reserved)
General
Power Supply:  100~240VAC, 47~63Hz, 3A
Consumption:  ≤ 15 W (without hard disk)
Working Temperature:  -10 °C ~ +55 °C
Working Humidity:  10%~90%
Chassis:  19-inch rack-mounted 1U chassis
Dimensions:  445 × 290 × 45mm (W x D x H)
Weight:  ≤ 2 Kg (without hard disk)
