Professional 1.5U 4HDD 16ch NVR Hikvision (DS-7716NI-ST)

Professional 1.5U 4HDD 16ch NVR Hikvision (DS-7716NI-ST) thumbnail-1
Professional 1.5U 4HDD 16ch NVR Hikvision (DS-7716NI-ST) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-7716NI-ST
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-7716NI-ST

Specifications

NVR Hikvision
16channel HIKVISION Professional NVR
5 MP resolution
HDMI & VGA output
HDD quota & group management

Product Description

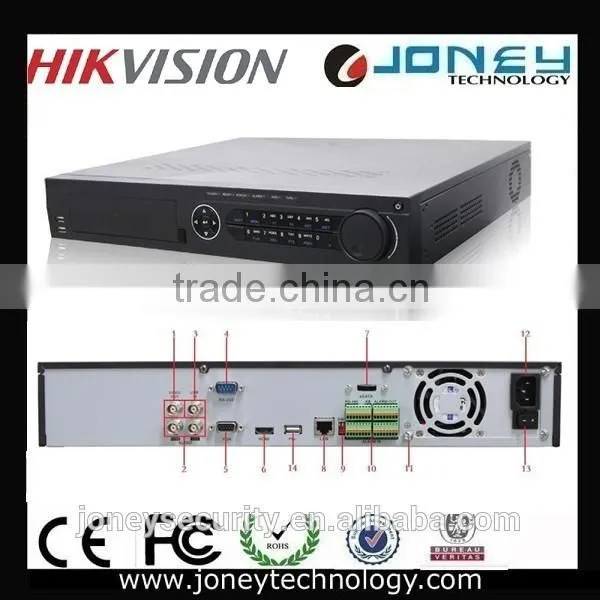

DS-7716NI-ST Professional 1.5U 4HDD 16ch NVR Hikvision

  1. Key Features

• Up to 8/16/32-ch IP cameras input
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4 SATA, 2 USB2.0

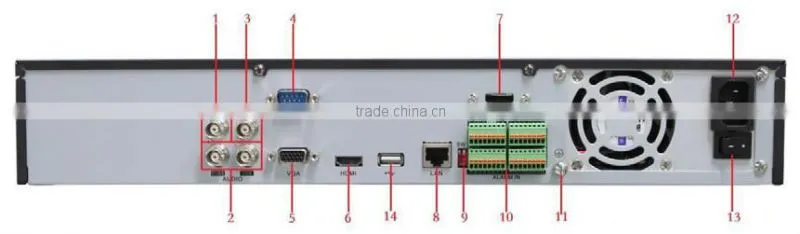

1.Video out
2.CVBS Audio out and VGA audio out
3.Line in
4.RS-232 interface
5.VGA interface
6.HDMI interface
7.eSATA interface
8.LAN interface
9.Termination switch
10.RS-485 interface, Controller port,
.Alarm in and Alarm out
11 Ground
12.AC 100V ~ 240V
13.Power
14.USB interface





DS-7716NI-ST   NVR Hikvision



Video/Audio Input

IP Video Input:

16-ch

Two-way Audio:

1-ch BNC(2.0Vp-p, 1kΩ)



Video/Audio Output

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz

CVBS Output:

1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)

HDMI Output:

1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz,

1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz

Recording resolution:

5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF /

CIF / QCIF

Audio Output:

2-ch BNC(Linear electrical level, 600Ω)

Playback Resolution:

5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF /

CIF / QCIF

Synchronous Playback:

16-ch



Hard Disk Driver

Interface Type:

4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default),or 4HDDs

Capacity:

Up to 4TB capacity for each disk

e-SATA Interface:

1 eSATA interface



External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet Interface

USB Interface:

3 USB2.0 interfaces

Serial Interface:

1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface

Alarm Input:

16-ch

Alarm Output:

4-ch



General

Power Supply:

100~240VAC, 6.3A, 50~60Hz

Consumption:

≤ 40 W (without hard disk or DVD-R/W)

Working Temperature:

-10 °C ~ +55 °C

Working Humidity:

10%~90%

Chassis:

19-ich rack-mounted 1.5U chassis

Dimensions:

440 × 390 × 70 mm(W x D x H)

Weight:

≤ 4 Kg ( without hard disk or DVD-R/W )

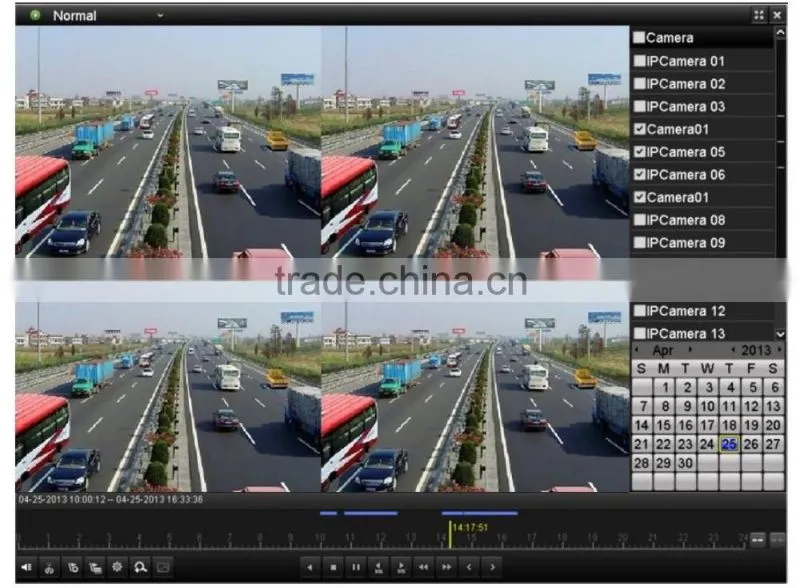

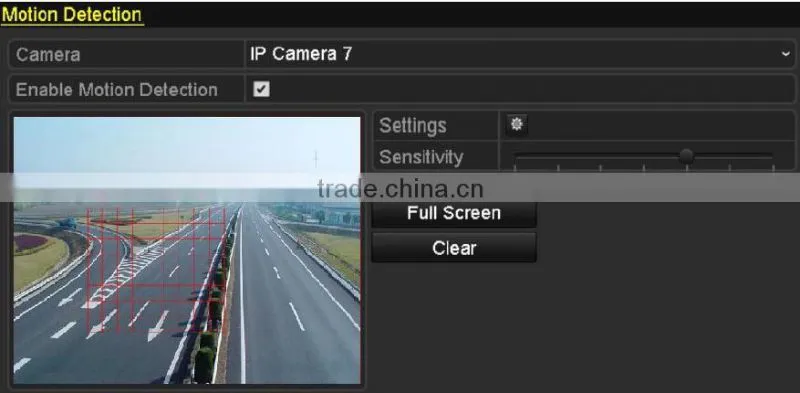

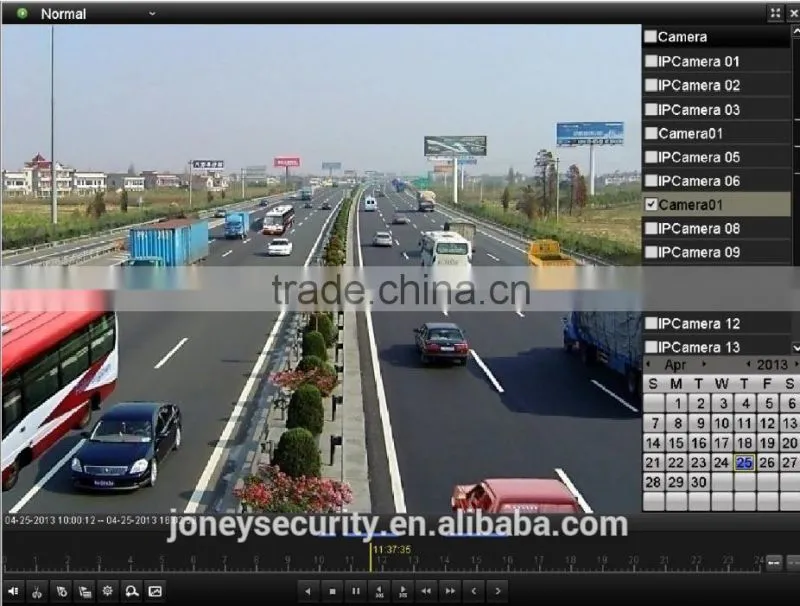

GUI INTERFACE



Network Functions
1 self-adaptive 10M/100M/1000M network interface.
Up to 8 independent PoE network interfaces for DS-7600NI-SE/P series, and 4 independent PoE
network interfaces for DS-7600NI-VP series.
Up to 8 independent network interfaces with built-in switch function are provided for
DS-7600NI-SE/N series.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.

TCP, UDP and RTP for unicast.
Auto/Manual port mapping by UPnP.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback via RTSP.
Support accessing by the platform via ONVIF.
Remote search, playback, download, locking and unlocking of the record files, and support
downloading files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of mouse.
Remote HDD initializing and program upgrading.
Remote system restart and shutdown. User Manual of DS-7600NI Series NVR
S-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host.
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZ control.
two-way audio and voice broadcasting.
Embedded WEB server.
